3D Composite Drainage Net Rapid Water Removal, Unmatched Stability

Product Overview:

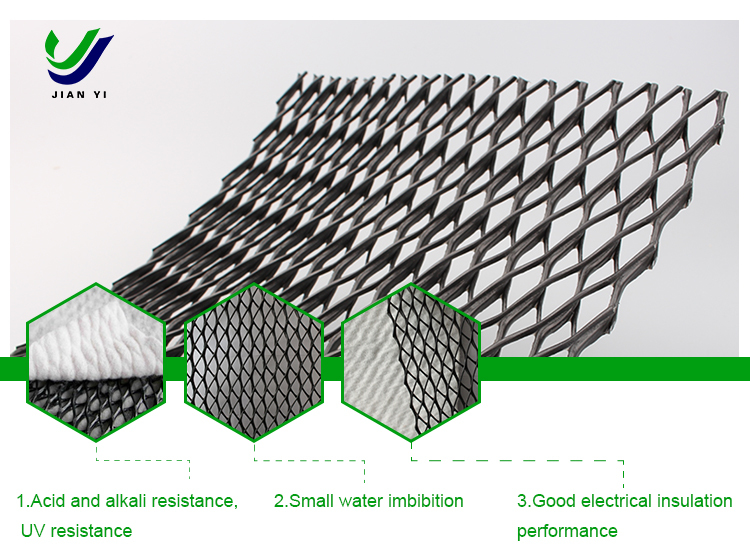

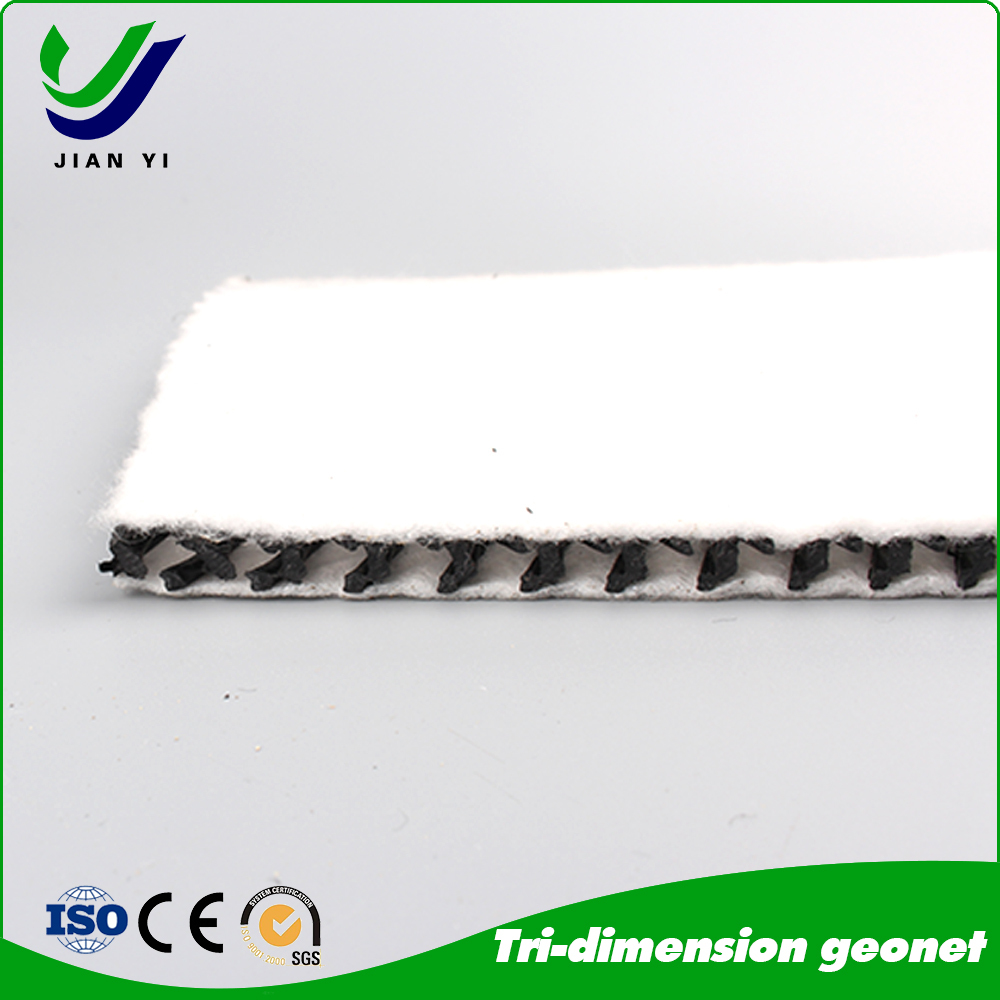

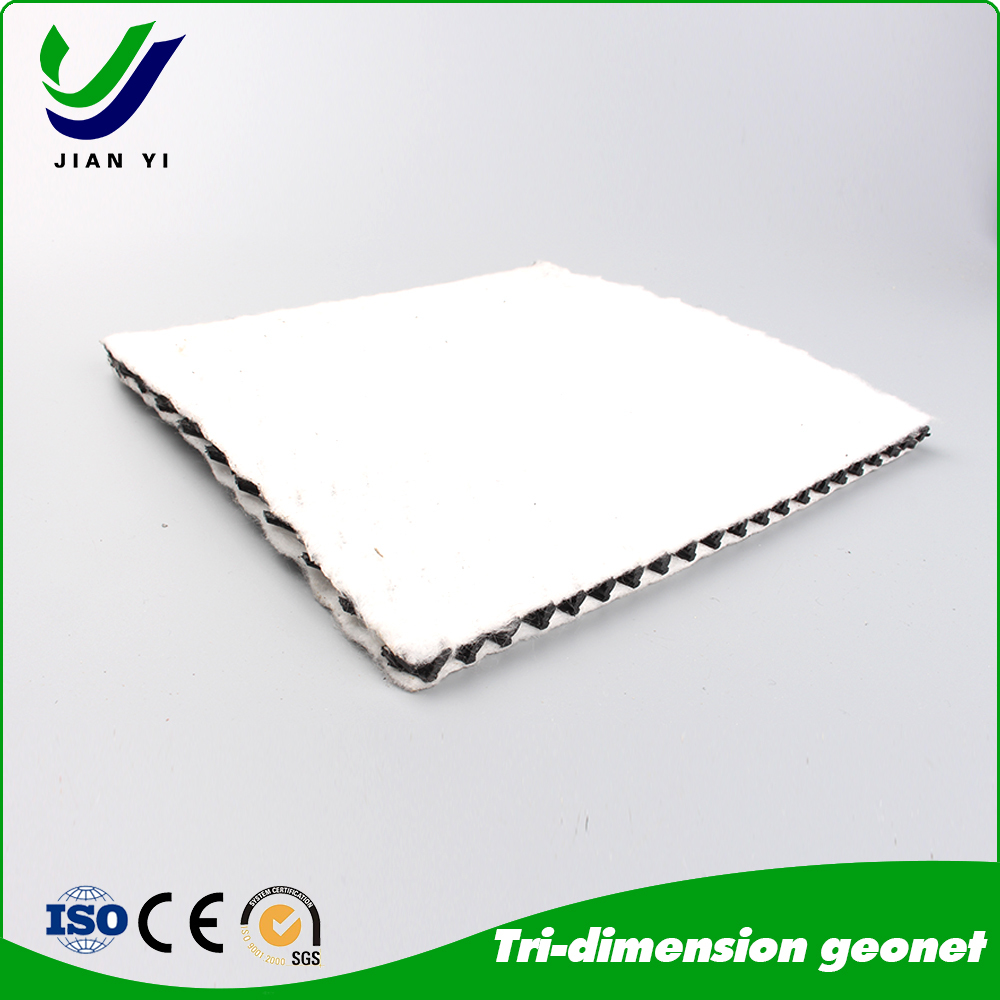

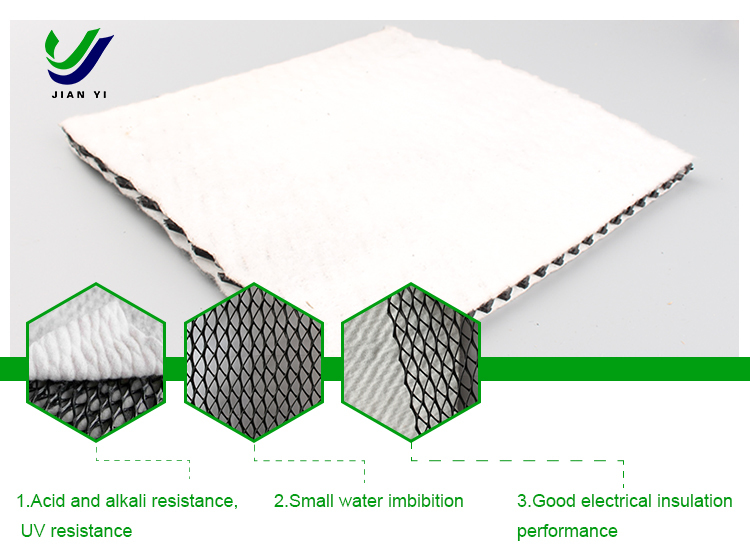

Our 3D Drainage Composite Net combines a rigid polymer core (polypropylene/PE) with thermally bonded nonwoven geotextiles to form an integrated drainage system. Engineered for rapid water collection, conveyance, and retention capacity in demanding geotechnical applications.

Key Features:

• High-Flow Drainage Core: Tri-planar geonet structure maintains consistent void space (>95% porosity) under heavy loads

• Integrated Filtration: Dual geotextile layers retain soil while allowing unimpeded water inflow

• Exceptional Compression Resistance: Withstands up to 1000 kPa stress without significant flow reduction

• Chemical & Biological Resilience: Inert polymer construction resists soil chemicals and root penetration

• Structural Void Maintenance: Prevents soil intrusion that clogs traditional drainage systems

Primary Applications:

• Landfill Systems: Leachate collection layers, landfill caps, and gas venting layers

• Retaining Walls & Bridge Abutments: Relieves hydrostatic pressure behind structures

• Green Roofs & Plaza Decks: Lightweight drainage layer for vegetative roofing systems

• Sport Fields & Landscaping: Subsurface drainage for turf, athletic tracks, and garden terraces

• Highway & Railway Embankments: Prevents water saturation in roadbeds and slopes

• Tunnel & Underground Structures: Perimeter drainage for waterproofing membranes

Compliance:
Tested to ASTM D4716 (flow capacity), D6364 (compression), and ISO 12958 standards for hydraulic performance.

Engineered Drainage Efficiency:
This composite net delivers superior long-term drainage performance by combining filtration, flow capacity, and structural integrity—reducing installation time and lifecycle costs in critical water management projects.
