Drainage Composite Geogrid Three Dimensional Material For Landfill

90㎡

MOQ

0.96USD~3.44USD per sqm

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Color: Black

Chemical Resistance: Excellent

Width: 2m-6m

Uv Resistance: Excellent

Length: 50m-100m

Tensile Strength: ≥16kN/m

Weight: ≥200g/m2

Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall

Highlight:

Drainage Composite Geogrid

Three Dimensional Composite Geogrid

Composite Geogrid Three Dimensional Material

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: L/C, D/P

Supply Ability: 600T/Month

Gallery

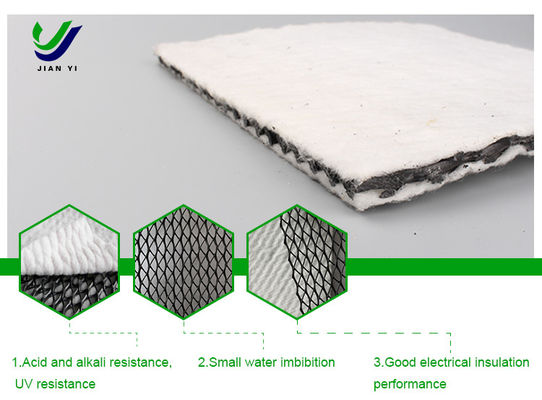

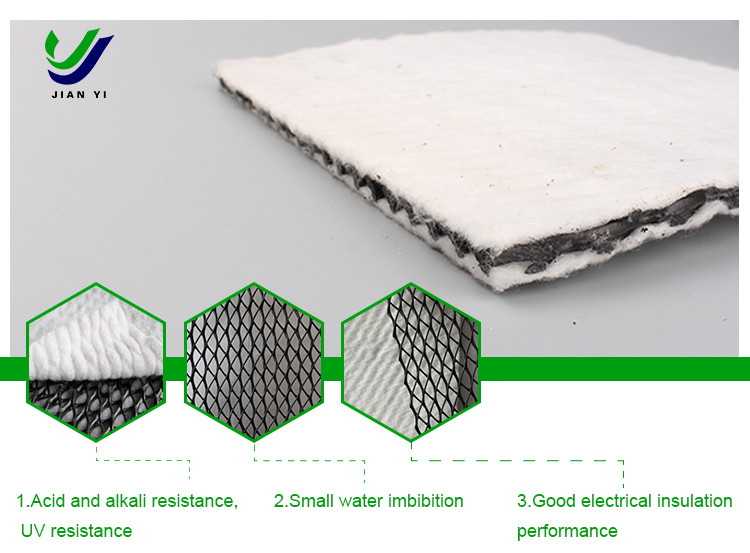

Drainage Composite Geogrid Three Dimensional Material For Landfill

Product Description

Drainage Geonet Three-Dimensional Composite Material For Optimal Drainage And Protection

Product Introduction

The three-dimensional composite drainage net is a new type of drainage geotechnical material, which consists of a three-dimensional plastic net with double-sided adhesive permeable geotextile1. This material has a unique three-dimensional structure, can withstand high compression loads during the entire use process, and can maintain a considerable thickness, providing good water conductivity

Product Application

Widely used in landfill drainage, highway subgrade and pavement drainage, railway drainage, tunnel drainage, underground structure drainage, retaining wall back drainage, garden and sports field drainage and other engineering drainage fields

Product Property

The three-dimensional composite drainage net has high tensile strength and shear strength, can withstand long-term high pressure loads, and can maintain a considerable thickness, providing good water conductivity. In addition, it also has good corrosion resistance and acid and alkali resistance, and has a long service life.

Product Specification and Technical Index

Drainage network core	Specification
Unit Weight(g/m2)	750	1000	1300	1600	1800
Thickness(OV=20pa, mm)	5.0	6.0	7.0	7.6	8.0
Hydraulic Conductivity(m/s)	K×10-4	K×10-4	K×10-3	K×10-3	K×10-3
Elongation Rate(%)	< 50	< 50	< 50	< 50	< 50
Tensile Strength(core network, KN/m)	8	10	12	13	14
Geotextiles(g/m2)	200-200	200-200	200-200	200-200	200-200

(CJ/T 452—2014)

Project	Index
Project	Geotechnical drainage network	Geotechnical composite drainage network
Density/(g/cm³)	≥0.939	—
Carbon Black Content (%)	2~3	—
Longitudinal Tensile Strength/(KN/m)	≥8.0	≥16.0
Longitudinal Hydraulic Conductivity (Normal Load 500KPa, Hydraulic Gradient 0.1)/(㎡/s)	≥3.0×10-3	≥3.0×10-4
Peel Strength/(KN/m)	—	≥0.17
Mass Per Unit Area Of Geotextile/(g/㎡)	—	≥200
