Features

Specifications

Color: White/Blue

Product Usage: Highway, Railway Subgrade And Shoulder, Soft Soil Foundation Drainage, Tunnel Underground Drainage

Product Property: Drainage The Penetration Water.Lower The Saturation Line.Reinforcement Of The Soft Soil Layer.Enhance The Soil And Prevent The Landslide.

Wire Diameter (mm): 1.5-5.5

Tensile Strength (KN/5cm, LD): ≥1.0

Elongation Rate(%, LD): ≥12

Tensile Strength (KN/5cm,TD): ≥0.8

Elongation Rate(%, TD): ≥12

Ball Bursting Strength(KN): ≥1.1

Highlight:

Highway Geotech Drainage Fabric

Soil Stabilization Geotech Drainage Fabric

Soil Reinforcement Geotech Drainage Fabric

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

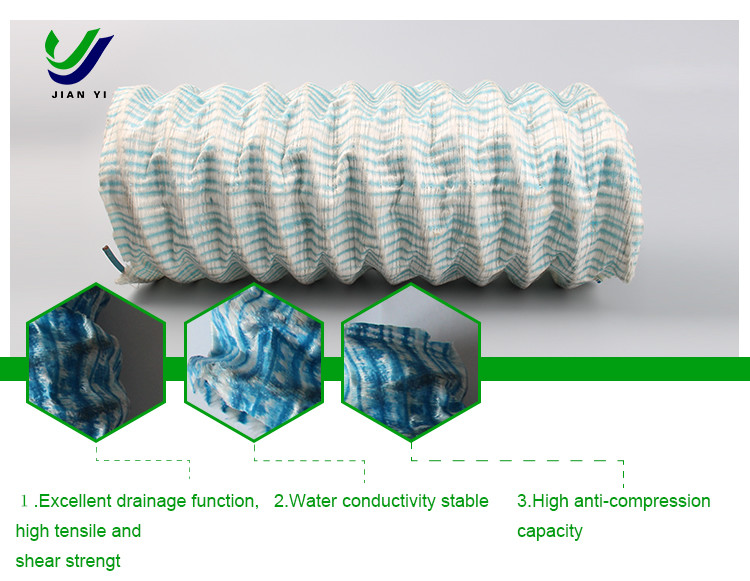

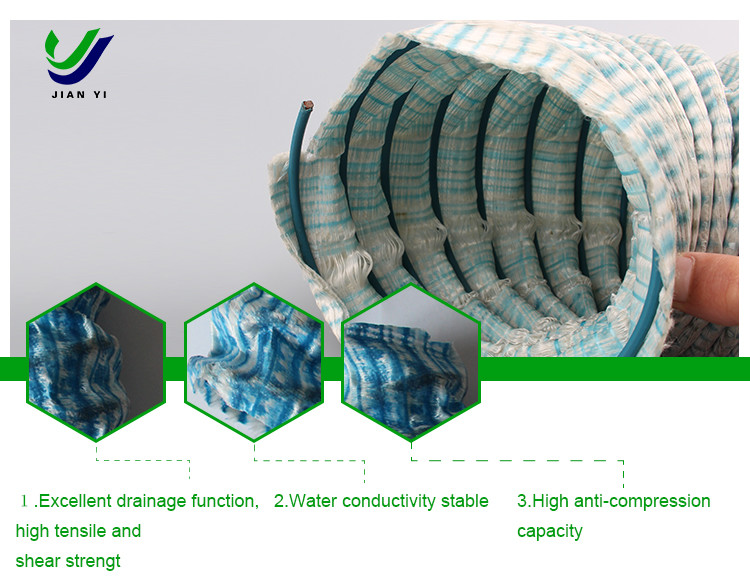

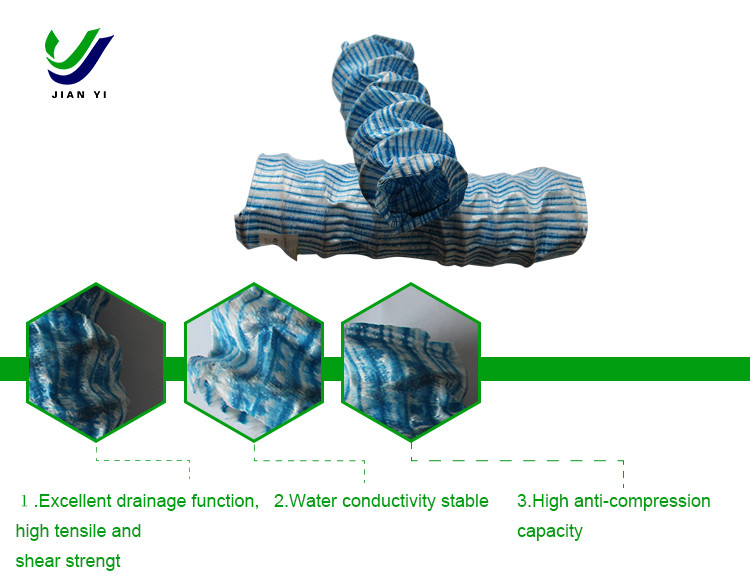

Highway Geotech Drainage Fabric For Soil Stabilization And Reinforcement

Product Description

Innovative Drainage Geotextile Filter Fabric for Soil Stabilization and Reinforcement

Product Application

1. Drainage for various types of retaining walls on the back of the vertical and horizontal.

2. Drainage for highway, railway roadbed and shoulder , soft ground.

3. Drainage for tunnel and underpass.

4. Drainage for electricity ash dam and water dam.

5. Drainage for the central isolation belt of the highway, protect the vegetation.

6. Drainage for the outdoor playground.

7. Drainage for transverse horizontal drilling.

8. Drainage and slope protection for the easy landslide ground.

9. Drainage for the roof garden and flower bed.

10. Maintaining the groundwater of hillside.

11. Drainage of the underground for soil preparation projects.

12. Drainage for the swale and reconstruction of the saline-alkali soil.

Product Property

1. Drainage the penetration water.

2. Lower the saturation line.

3. Reinforcement of the soft soil layer.

4. Enhance the soil and prevent the landslide.

Specification List

Specifacation	Wire Diameter (mm)	Wire Spacing (circle/m)	Outside Diameter Deviation (mm)		Precise Length (m)	Protective Layer Thickness(mm)		(mm)	D
FH30	1.5	45	±2		300			0.1-0.38	300-1500
FH50	1.6	47	±2		180	0.30		0.1-0.38	300-1500
FH80	2.0	37	±2		80	0.34		0.1-0.38	300-1500
FH100	2.6	32	±3		60	0.36		0.1-0.38	300-1500
FH150	3.5	24	±3.5		50	0.38		0.1-0.38	300-1500
FH200	4.5	17	±4		35	0.42		0.1-0.38	300-1500
FH250	5.0	19	±6			0.60
FH300	5.5	19	±8			0.60
Flat Rate Resistant of The Soft Penetrated Pipe
Flat Rate	Unit	Specification
Flat Rate	Unit	FH30	FH50	FH80	FH100	FH150	FH200	FH250	FH300
1%	KN	≥0.08	≥400	≥720	≥1600	≥3120	≥4000	≥4800	≥5600
2%	KN	≥0.16	≥720	≥1600	≥3120	≥4000	≥4800	≥5600	≥6400
3%	KN	≥0.35	≥1480	≥3120	≥4800	≥6400	≥6800	≥7200	≥7600
4%	KN	≥0.60	≥2640	≥4800	≥6000	≥7200	≥8400	≥8800	≥9600
5%	KN	≥1.00	≥4400	≥6000	≥7200	≥8000	≥9200	≥10400	≥12000
Properties Testing(JC937-2004)
Item				Specifacation
Soft Penetrated Pipe				Φ30	Φ50	Φ80	Φ100	Φ150	Φ200
Pipe Roughness				0.014	0.014	0.014	0.014	0.014	0.014
Tensile Strength (KN/5cm, LD)				≥1.0	≥1.0	≥1.0	≥1.0	≥1.0	≥1.0
Elongation Rate(%, LD)				≥12	≥12	≥12	≥12	≥12	≥12
Tensile Strength (KN/5cm,TD)				≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8
Elongation Rate(%, TD)				≥12	≥12	≥12	≥12	≥12	≥12
Ball Bursting Strength(KN)				≥1.1	≥1.1	≥1.1	≥1.1	≥1.1	≥1.1
Flow(cm3/S*10-3)				0.180	0.440	1.672	3.032	8.839	19.252
Permeability Coefficient(cm/S)				≥0.1	≥0.1	≥0.1	≥0.1	≥0.1	≥0.1
Sieve Size(O95,mm)				0.06-0.20
