Home /Products/Staple Fiber Geotextile/80% Uv Resistance Short Fiber Geotextile For Landfill Covers

80% Uv Resistance Short Fiber Geotextile For Landfill Covers

325㎡
MOQ
0.11USD~1.65USD per sqm
Price

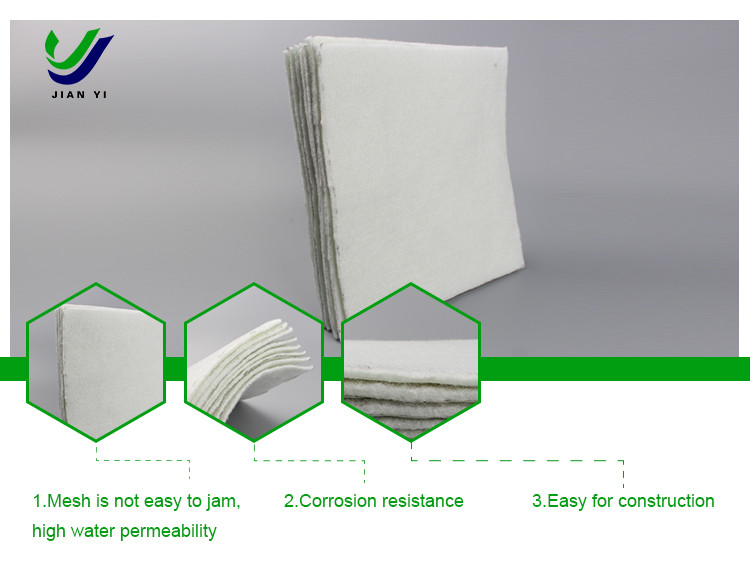

80% Uv Resistance Short Fiber Geotextile For Landfill Covers
Features Gallery Product Description Request A Quote
Features
Specifications
Uv Resistance: 80%
Length: 50~100m
Color: White
Width: 1m~6m
Acid And Alkali Resistance: Excellent
Application: Road Construction, Railway, Landfill, Etc.
Weight Variation: -8~-6%
Thickness: 0.9-5.0mm
Weight: 100g~800g/㎡
Sieve Size O90,O95: 0.07mm-0.20mm
Highlight:

Uv Resistance Short Fiber Geotextile

,

Landfill Covers Short Fiber Geotextile

,

80% Uv Resistance Geotextile Fabric
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001
Model Number: 2m-6m Width and 50m-100m Roll Length
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 500T/month
Product Description

Environmental-Friendly Staple Geotextile for Landfill Covers


Product Introduction
    Staple fiber geotextile is a geosynthetic material made of short fibers by physical methods (such as acupuncture, chemical bonding, etc.). It is widely used in civil engineering.


Product Properties
1. Road construction and maintenance: as a reinforcement material of the base layer, improve the bearing capacity and durability of the road.
2. Hydraulic engineering: used as filtration and drainage materials in reservoirs, canals, DAMS and other projects.
3. Environmental engineering: Covers used in landfills to prevent waste from coming into direct contact with soil.
4. Foundation reinforcement: Provides reinforcement on weak foundations to increase the carrying capacity of the soil.
5. Slope engineering: used for slope protection and stability, to prevent erosion and landslide.
6. Tunnel engineering: plays the role of strengthening and waterproofing in the tunnel lining.


Product Application
1. Road construction: improve the carrying capacity of roads and extend the service life of roads.
2. Hydraulic engineering: used for reinforcement and filtration in reservoirs, DAMS, canals and other projects.
3. Environmental engineering: Used in landfills, sewage treatment plants, etc., to prevent the spread of pollutants.
4. Civil engineering: Used as reinforcement and isolation materials in the construction of tunnels, subways, airports and other infrastructure.
5. Slope engineering: Used for slope protection to prevent soil erosion and landslides.

Product Specification
*  Grams/㎡: 100g~800g/㎡
*  Width:2m~6m
*  Roll length:50m~100m
PS: Customized request accept for all above.


Product Specification and Technical Index (GB/T 17638—2017)

Item Nominal Breaking Strength(KN/m)
3 5 8 10 15 20 25 30 40
1 Breaking Strength (KN/m,≥,LD/TD) 3.0 5.0 8.0 10.0 15.0 20.0 25.0 30.0 40.0
2 Elongation Rate (%,≥,LD/TD) 20~100
3 Bursting Strength(KN)≥ 0.6 1.0 1.4 1.8 2.5 3.2 4.0 5.5 7.0
4 Mass Deviation Rate Per Unit Area(%) ±5
5 Width Variation ( ％) -0.5
6 Thickness Deviation Rate(%) ±10
7 Sieve Size O90,O95 (mm) 0.07~0.20
8 Vertical Permeability Coefficient (cm/s) Kx(10ˉ1-10ˉ3) K=1.0-9.9
9 Tearing Strength (KN,≥,MD/CD) 0.10 0.15 0.20 0.25 0.40 0.50 0.65 0.80 1.00
10 Acid And Alkali Resistance (Strength Retention Rate)/%≥ 80
11 Antioxidant Performance (Strength Retention Rate)/%≥ 80
12 UV Resistance(Strength Retention Rate)/%≥ 80



(GB/T17638-1998)

Specification F100 F150 F200 F250 F300 F350 F400 F450 F500 F600 800 Remark
Item 100 150 200 250 300 350 400 450 500 600 800
Weight Variation (%) -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6 -
Thickness (mm≥) 0.90 1.20 1.70 2.10 2.40 2.70 3.00 3.20 3.60 4.10 5.00
Width Variation ( ％) -0.50
Breaking Strength (KN/m,≥,LD/TD) 2.50 4.50 6.50 8.00 9.50 11.00 12.50 14.00 16.00 19.00 25.00
Elongation Rate (%,≥,LD/TD) 25-100
CBR Burst Strength ( KN≥) 0.30 0.60 0.90 1.20 1.50 1.80 2.10 2.40 2.70 3.20 4.00
Sieve Size O90,O95 (mm) 0.07-0.2
Vertical Permeability Coefficient (cm/s) Kx(10ˉ1-10ˉ3) K=1.0-9.9
Tearing Strength (KN,≥,MD/CD) 0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.60
1) Specifications according to the mass per unit area, the actual specification between adjacent specifications in the table,
according to the interpolation method to calculate the corresponding assessment index, if beyond the scope in the table,
shall be determined between supplier and the demander.
2) Unit Weight standards according to the design or agreement.
3) Width as reference indexes for internal control of production, the appraisal based on the actual design value if user raised
requests.
