Corrosion Resistant Staple Geotextile Road Fabric For Environmental Engineering

325㎡
MOQ
0.11USD~1.65USD per sqm
Price
Corrosion Resistant Staple Geotextile Road Fabric For Environmental Engineering
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Road Construction, Railway, Dam, Coastal Engineering, Etc.
Weight: 100-800g/㎡
Feature: High Strength, Low Elongation, Excellent Durability, Good Water Permeability
Color: White
Width: 1m - 6m
Function: Separation, Filtration, Drainage, Reinforcement, Protection
Length: 50m - 100m
Sieve Size O90,O95: 0.07mm-0.20mm
Highlight:

Staple Geotextile Road Fabric

,

Corrosion Resistant Geotextile Road Fabric

,

Corrosion Resistant Geotextile Drainage Fabric
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001
Model Number: 2m-6m Width and 50m-100m Roll Length
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 500T/month
Product Description

Staple Geotextile Durable and Corrosion-Resistant for Environmental Engineering


Product Introduction
     Staple fiber geotextile is a kind of geomaterial with good water permeability, which is widely used in civil engineering.

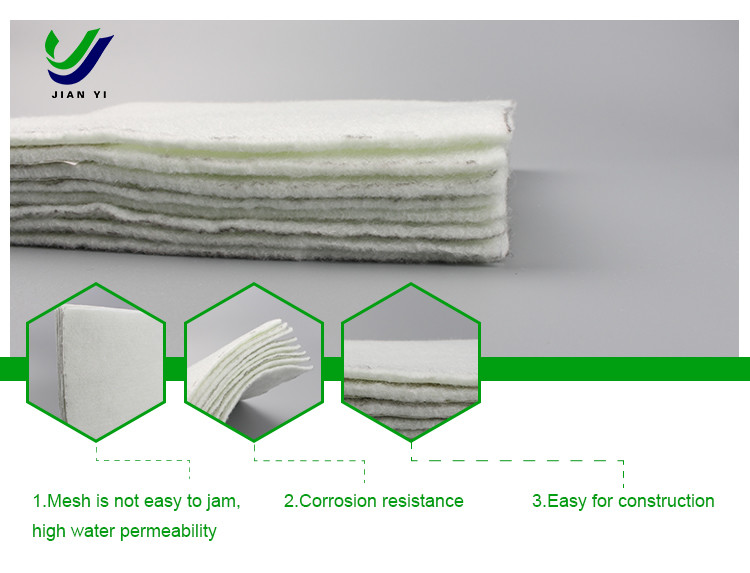

Product Properties
1.  Water permeability: water permeable short fiber geotextile has good permeability and water permeability, can make water flow through, while effectively intercepting soil particles, fine sand, small stone, etc., to maintain the stability of soil and water engineering.
2. Filterability: When water flows from the fine soil layer into the coarse soil layer, the permeable staple fiber geotextile can play a filtering role to prevent soil loss.
3. Durability: It has good tensile strength and deformation resistance, which can enhance the stability of the building structure.
4. Corrosion resistance: can resist the erosion of a variety of chemical substances, suitable for different environmental conditions.



Product Application

1. Water conservancy projects: In reservoirs, DAMS, canals and other projects, permeable staple fiber geotextiles are used for reinforcement and filtration.
2. Road construction: improve the bearing capacity and stability of the roadbed, extend the service life of the road.
3. Environmental engineering: Prevent the spread of pollutants in landfills, sewage treatment plants and other projects.
4. Slope engineering: Used for slope protection to prevent soil erosion and landslides.


Product Specification
*  Grams/㎡: 100g~800g/㎡
*  Width:2m~6m
*  Roll length:50m~100m
PS: Customized request accept for all above.


Product Specification and Technical Index (GB/T 17638—2017)

Item Nominal Breaking Strength(KN/m)
3 5 8 10 15 20 25 30 40
1 Breaking Strength (KN/m,≥,LD/TD) 3.0 5.0 8.0 10.0 15.0 20.0 25.0 30.0 40.0
2 Elongation Rate (%,≥,LD/TD) 20~100
3 Bursting Strength(KN)≥ 0.6 1.0 1.4 1.8 2.5 3.2 4.0 5.5 7.0
4 Mass Deviation Rate Per Unit Area(%) ±5
5 Width Variation ( ％) -0.5
6 Thickness Deviation Rate(%) ±10
7 Sieve Size O90,O95 (mm) 0.07~0.20
8 Vertical Permeability Coefficient (cm/s) Kx(10ˉ1-10ˉ3) K=1.0-9.9
9 Tearing Strength (KN,≥,MD/CD) 0.10 0.15 0.20 0.25 0.40 0.50 0.65 0.80 1.00
10 Acid And Alkali Resistance (Strength Retention Rate)/%≥ 80
11 Antioxidant Performance (Strength Retention Rate)/%≥ 80
12 UV Resistance(Strength Retention Rate)/%≥ 80



(GB/T17638-1998)

Specification F100 F150 F200 F250 F300 F350 F400 F450 F500 F600 800 Remark
Item 100 150 200 250 300 350 400 450 500 600 800
Weight Variation (%) -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6 -
Thickness (mm≥) 0.90 1.20 1.70 2.10 2.40 2.70 3.00 3.20 3.60 4.10 5.00
Width Variation ( ％) -0.50
Breaking Strength (KN/m,≥,LD/TD) 2.50 4.50 6.50 8.00 9.50 11.00 12.50 14.00 16.00 19.00 25.00
Elongation Rate (%,≥,LD/TD) 25-100
CBR Burst Strength ( KN≥) 0.30 0.60 0.90 1.20 1.50 1.80 2.10 2.40 2.70 3.20 4.00
Sieve Size O90,O95 (mm) 0.07-0.2
Vertical Permeability Coefficient (cm/s) Kx(10ˉ1-10ˉ3) K=1.0-9.9
Tearing Strength (KN,≥,MD/CD) 0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.60
1) Specifications according to the mass per unit area, the actual specification between adjacent specifications in the table,
according to the interpolation method to calculate the corresponding assessment index, if beyond the scope in the table,
shall be determined between supplier and the demander.
2) Unit Weight standards according to the design or agreement.
3) Width as reference indexes for internal control of production, the appraisal based on the actual design value if user raised
requests.
