Features

Specifications

Mass Per Unit Area: ≥4000g/㎡

Chemical Resistance: Excellent

Swelling Index: ≥24 Ml/2g

Material: Bentonite

Geosynthetic Type: Clay Liner

Tensile Strength: ≥600N/mm

Elongatio At Max Load: ≥10%

Resistance Hydraulic Pressure: 0.4MPa,1h,No Leakage

Main Function: Waterproof And Anti-seepage

Highlight:

Bentonite Gcl Geosynthetic Clay Liner

Waterproof Gcl Geosynthetic Clay Liner

Impermeable Bentonite Clay Liner

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001 & CE

Payment & Shipping Terms

Delivery Time: 30 days

Payment Terms: T/T,L/C

Supply Ability: 3000T/month

Gallery

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs

Product Description

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs

We, Changsha Jianyi, is a geosynthetic clay liner (gcl) manufacturer in China. Our GCL price is competitive in abroad and domestic market with good quality.

Geosynthetic Clay Liner introduction

It is betonite geo-synthetic waterproofing barrier. It is self-attaching and self -sealing to concrete or other construction structures. It is made of a non-woven geotextile, a natural sodic bentonite layer, with or without a pe geomembrane layer, and a polypropylene sheet.

These layers are connected with a dense felter that makes the bentonite a self-confinement with controlled expansion. With this system it is possible to avoid slippage and the accumulation of bentonite as a consequence of cuts, tears, vertical applications and movements.

Its performance can meet or exceed GRI-GCL3 and our national standard JG/T193-2006.

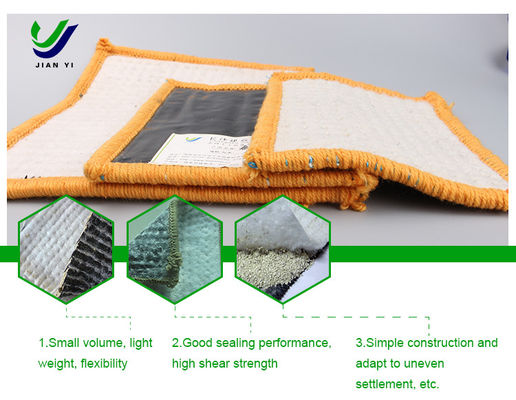

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 0

Bentonite clay liner Geosynthetic Clay Liners Membrane supported GCL

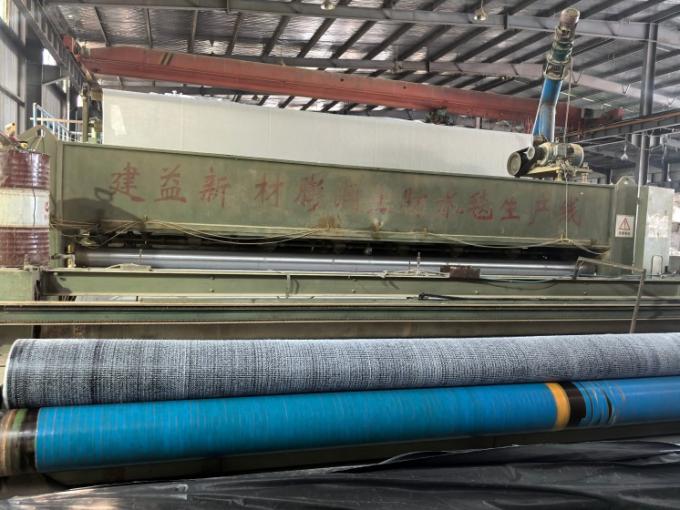

Geosynthetic Clay Liner product process:

Material Preparation
- Sodium bentonite (high-swelling clay) is purified and dried.
- Geotextile layers (woven/nonwoven polypropylene or polyester) are prepared.
Bentonite Spreading
- Bentonite powder (4.5–5 kg/m²) is evenly distributed between two geotextile layers.
Bonding Process
- Needle-punching: Fibers are mechanically entangled to hold bentonite in place.
- Stitching/Adhesive bonding (optional): Some GCLs use stitching or glue for extra strength.
Calendering (Optional)
- Rollers compress the blanket for better density and uniformity.
Quality Control
- Tests include peel strength, hydraulic conductivity, and bentonite distribution.
Cutting & Rolling
- The blanket is cut to size and rolled for packaging.

膨润土防水毯生产原料膨润土防水毯(1)

GCl Geosynthetic Clay Liner Function:

The engineering function of a GCL is containment as a hydraulic barrier to water, leachate or other liquids and sometimes gases.

As such, they are used as replacements for either compacted clay liners or geomembranes, or they are used in a composite manner to augment the more traditional liner materials.

The ultimate in liner security is probably a three component composite geomembrane/geosynthetic clay liner/compacted clay liner which has seen use as a landfill liner on many occasions.

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 5

Product Specification

* Unit Weight: ≥4000g/㎡ (customized request accept)
* Width: 4m~6m

* Roll Length:
PS: Customized request accept for all above.

Product Specification and Technical Index (JG/T 193-2006)

ITEM		GCL-NP (Needle Puched Process GCL)	GCL-OF (Needle Puched and Cocoon Process GCL)	GCL-AH (Viscose Process GCL)
Unit Weight (g/㎡)		≥4000 Not less than the specified value	≥4000 Not less than the specified value	≥4000 Not less than the specified value
Bentonite Swell Index (ml/2g)		≥24	≥24	≥24
Blue Clay (g/100g)		≥30	≥30	≥30
Tensile Strength (N/mm)		≥600	≥700	≥600
Elongatio At Max Load (%)		≥10	≥10	≥8
Peel Strength (N/100mm)	No-woven Geotextile& Woven Geotextile	≥40	≥40	-
Peel Strength (N/100mm)	PE Geomembrane & No-woven Geotextile	-	≥30	-
Pesistance Hydraulic Pressure (m/s)		≤5.0X10ˉ11	≤5.0X10ˉ12	≤1.0X10ˉ12
Resistance Hydraulic Pressure		0.4MPa,1h,No Leakage	0.6MPa,1h,No Leakage	0.6MPa,1h,No Leakage
Fluid Loss (m/L)		≤18	≤18	≤18
Durability Of Bentonite (mL/2g)		≥20	≥20	≥20

Geosynthetic Clay Liner Application

1. Roadway separation and stabilization

2. Landfill leachate collection

3. Steepened slopes

4. Retaining walls

5. Embankments over soft soil

6. Lagoon closures

7. Silt fence

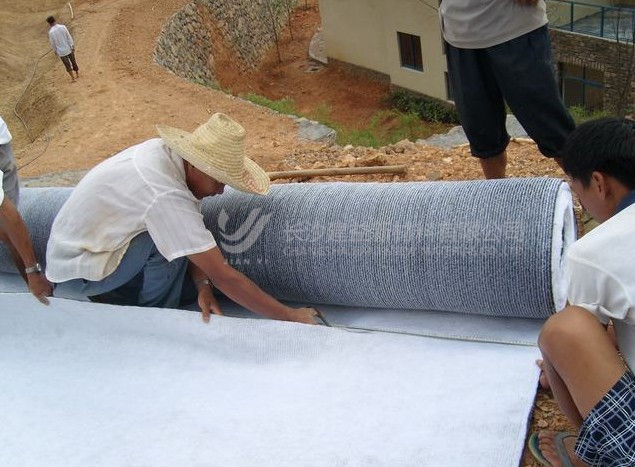

Geosynthetic Clay Liner Installation

1) Analyze the material cutting and draw the laying order and cutting diagram of bentonite waterproof blanket.

2) Check the surface quality of bentonite waterproof blanket and record the mechanical damage, manufacturing trauma, holes and other defects found to facilitate repair during laying.

3) The construction of waterproof blanket should be carried out in rainless and snowless weather. If it rains or snows during construction, use plastic film to cover it to prevent GCL from hydrating prematurely.

膨润土防水毯

Jianyi ---Your Professional GCl Geosynthetic Clay Liner Manufacturer

Jianyi New Material Co.,Ltd, which is the professional manufacturer specialized in R&D, produce, sales and installation of environmentally friendly materials.

We have one advanced imported geomembrane production line, two world-class HDPE geomembrane production lines, and one textured HDPE geomembrane production line. Our capacity of HDPE geomembrane can be 60 metric tons per day.

Jianyi is the largest manufacturer of GCl Geosynthetic Clay Liner in Hunan,we are one of the member units of HNWPA.

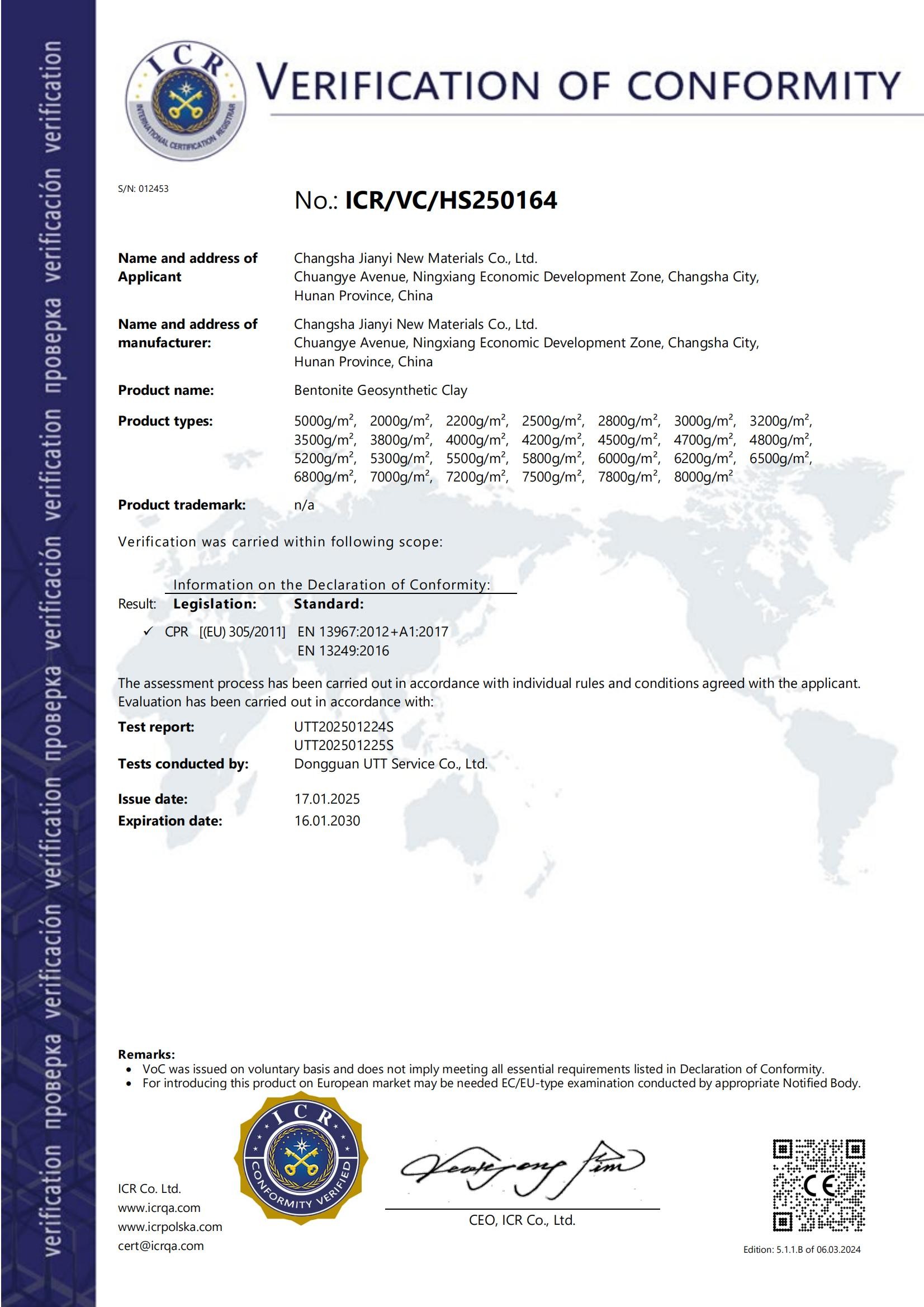

We have certificated by ISO9001, ISO14001 ISO45001 and CE.

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 7

We have about 20 patents, part of them as follows:

Patent for Geotextile Netting Machine/Composite geomat patent/Patent for composite film trimming device ect.

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 11

Changsha Jianyi have participated in many large-scale exhibitions abroad, such as Indonsia, Vietam, Russia , India, Philippine, Myanmar, Combodia etc ,our HDPE geomembrane products are deeply loved by exhibitors.

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 14

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 16

Changsha Jianyi have built a long term cooperation with many famous enterprises:

Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs 18

FAQ

Q1.What is your MOQ?

A1. 1 roll,around 325㎡.We normarlly have finsh product in stock.

Q2. How to transport the goods to our place?

A2: Usually by sea. Our product belongs heavy cargo so usually it is loaded in 20’container instead of in 40HQ container.
