Railway Roadbed Glass Fiber Geogrid Enhances Soil Slope To Prevent Soil Erosion

Railway Roadbed Glass Fiber Geogrid Enhances Soil Slope To Prevent Soil Erosion
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Material: High Strength Alkali-Free Glass Fiber
Width: 1m~6m
Grid Size: 12~50mm×mm
Application: Asphalt Pavement/Cement Concrete Pavement/Railway Roadbed
Installation Method: Nail Fixation/Self-Adhesive
Tensile Strength（LD）: 25~120KN/m
Tensile Strength（TD）: 25~120KN/m
Highlight:

Soil Erosion Prevent Glass Fiber Geogrid

,

Enhances Soil Slope Glass Fiber Geogrid

,

Railway Roadbed Fiberglass Geogrids
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

Glass Fiber Geogrid Further Enhances Soil Slope To Prevent Soil Erosion



Production Introduction



    Glass fiber geogrid is a kind of plane mesh structure material made of high strength non-alkali glass fiber roving without twist, woven by warp knitting machine and coated with special modified asphalt. It has high tensile strength, tear strength and creep resistance, and has excellent composite performance with asphalt mixture, which greatly improves the wear resistance and shear resistance of the base material.

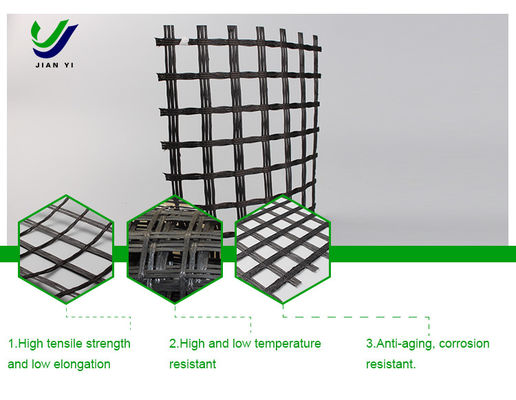

Production Property



1. High strength: Glass fiber has a high tensile strength, so that the geoglyceris can effectively improve the bearing capacity in the project.
2. Chemical resistance: Glass fiber has good resistance to most chemical substances and is suitable for use under various environmental conditions.
3. Aging resistance: After the addition of anti-aging agents, the glass fiber geogrid has excellent resistance to ultraviolet light and weather aging.



Production Application



1. Road, railway, airport subgrade reinforcement is used to strengthen asphalt surface or as reinforcement material.
2. Large parking lots and dock yard foundation enhancement to increase load carrying capacity.
3. Railway road slope protection protects slope stability.



Product Specification and Technical Index



Specification Item GSB 25-25 GSB 30-30 GSB 40-40 GSB 50-50 GSB 80-80 GSB 100-100 GSB 120-120 GSB25-25 Self adhesive GSB3030 Self adhesive GSB4040 Self adhesive GSB5050 Self adhesive GSB8080Self adhesive GSB100100 Self adhesive GSB120120 Self adhesive
Tensile Strength (KN/m) LD ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120 ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120
TD ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120 ≥25 ≥30 ≥40 ≥50 ≥80 ≥100 ≥120
Tensile Elongation (%) LD ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
TD ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
Grid Size (mm×mm) 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50 12~50
Width (m) 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6 1~6
