Features Gallery Product Description Request A Quote

Features

Specifications

Application: Landfill, Mining, Water Containment, Etc.

Thickness: 0.2~3mm

Material: HDPE (High-Density Polyethylene)

Color: Black，White，Green，Custom

Width: 3m - 8m

Length: 50~150m

Highlight:

Compound Geotechnical Membrane

Anti Seepage Geotechnical Membrane

HDPE Geotechnical Membrane

Basic Infomation

Place of Origin: China Hunan

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: T/T, L/C

Supply Ability: 700T/Month

Gallery

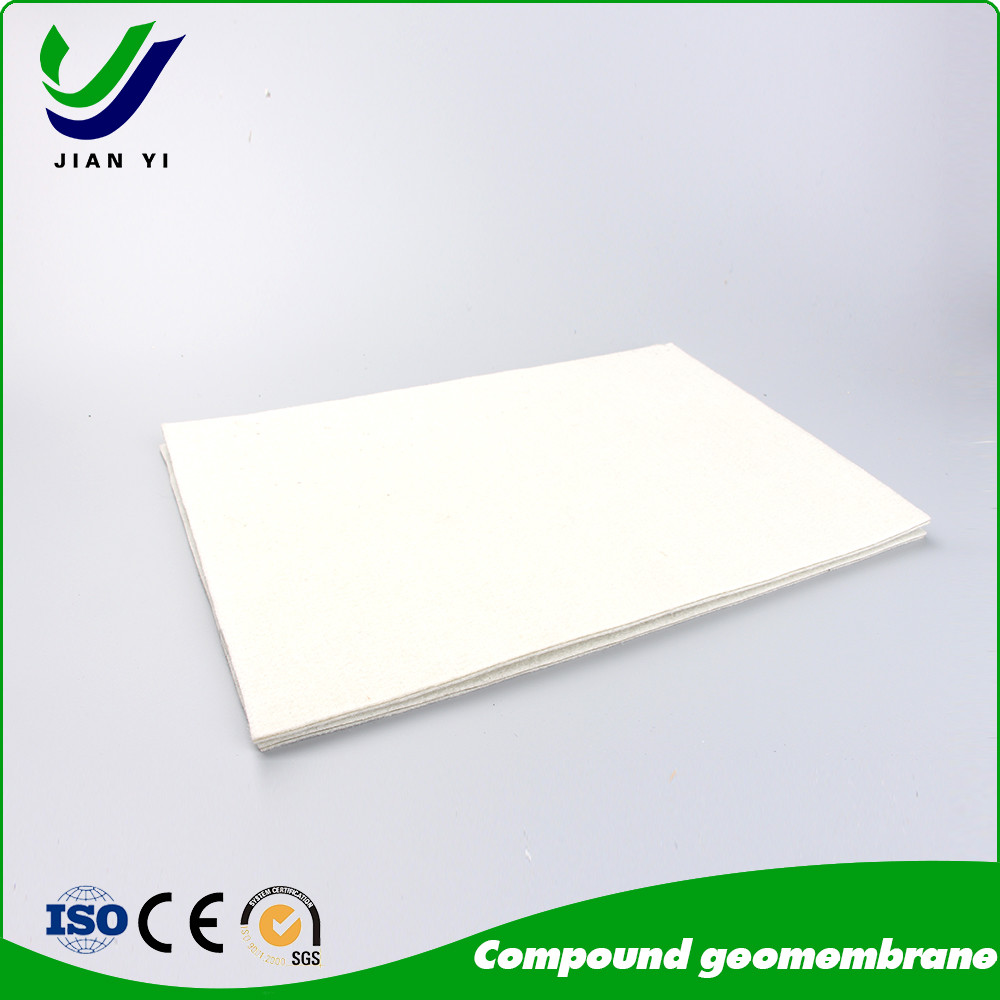

HDPE Compound Geotechnical Membrane For Anti Seepage

Product Description

Compound Geomembrane The Optimal Solution For And Durable Anti-Seepage

Product Introduction

Geosynthetic Membrane is a type of geotechnical impervious material made by combining plastic film as the impervious base material with non-woven fabric. Its impermeability mainly depends on the impermeability of the plastic film. Polyethylene (PE) is a high molecular weight chemical flexible material with low density, strong extensibility, high adaptability to deformation, corrosion resistance, low temperature resistance, and good frost resistance. Using geosynthetic membranes can improve efficiency and save engineering time.

Product Properties

1. High puncture resistance and large coefficient of friction

2. Excellent resistance to aging, wide range of ambient temperature adaptability

3 Excellent drainage resistance

Product Application

♦ Municipal construction: includes impervious lining for subways, basements and tunnels.

♦ Environmental Protection: anti-seepage treatment of landfill.

♦ Agricultural Water Conservancy: anti-seepage pavement of irrigation system.

♦ Traffic facilities: highway, railway subgrade anti-seepage treatment.

Construction

* For laying geomembrane, edge welding bead lap width 80mm-100mm, juncture place cannot have dirt, moisture, dust, etc

* Adjust two sides of geomembrane before welding seams ,keep a certain wedling width, and smooth without creasing.

* More details refer geomembrane construction scheme

Product Specification

Product Specification and Technical Index (GB/T 17642-2008)

Item		Specifications								Remark
Geotextile Unit Weight (g/㎡)		300	500	600	700	800	900	1000	1100
Geomembrane Thickness (mm)		0.25-0.35				0.30-0.50
Nominal Fracture Strength (KN/m)		2.50	7.50	10	12	14	16	18	20
Breaking Strength (KN/m,≥,LD/TD)		2.50	7.50	10	12	14	16	18	20
Standard Intensity Corresponding Elongation Rate (%)		30~100
CBR Burst Strength (KN,≥)		0.70	1.50	1.90	2.20	2.50	2.80	3.00	3.20
Longitudinal Tear Strength (KN,≥)		0.05	0.25	0.32	0.40	0.48	0.56	0.62	0.70
Hydrostatic Pressve (Mpa)		See List Below
Peel Strength (N/cm,≥)		6
Vertical Permeability Coefficient (cm/s)		According to design or contract mentioned.
Width Variation (%)		-1.00

Specification Item		Geomembrane Thickness (mm)								Remark
Specification Item		0.20	0.30	0.40	0.50	0.60	0.70	0.80	1.00	Remark
Hydrostatic Pressve (Mpa)	One geotextiles with one geomembrane	0.40	0.50	0.60	0.80	1.00	1.20	1.40	1.60
Hydrostatic Pressve (Mpa)	Two geotextiles with one geomembrane	0.50	0.60	0.80	1.00	1.20	1.40	1.60	1.80
