Non-Woven Polypropylene Geotextile with High Water Permeability, Excellent Puncture Resistance, and UV Resistance for Mine Drainage Systems

325㎡
MOQ
0.11USD~1.65USD per sqm
Price
Non-Woven Polypropylene Geotextile with High Water Permeability, Excellent Puncture Resistance, and UV Resistance for Mine Drainage Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Uv Resistance: Yes
Chemical Resistance: Good
Water Permeability: High
Color: White
Puncture Resistance: Excellent
Application: Road Construction, Drainage, Filtration
Width: 1m~6m
Weight: 100-800g/㎡
Length: 50m~100m
Tearing Strength: 0.08~0.6KN
Highlight:

High Water Permeability Geotextile Fabric

,

Excellent Puncture Resistance Staple Fiber Geotextile

,

UV Resistance Non-Woven Polypropylene Geotextile
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 2m-6m Width and 50m-100m Roll Length
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: T/T,L/C
Supply Ability: 500T/month
Product Description

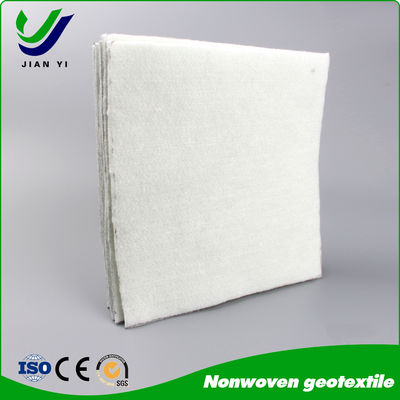

Non-Woven Polypropylene Geotextile for Mine Drainage Systems
Our Non-Woven Polypropylene Geotextile is a high-performance drainage material engineered specifically for demanding mine drainage applications. Manufactured from premium polypropylene fibers using advanced needle-punching technology, this geotextile features a porous structure with ≥80% porosity and uniform pore size distribution.
Product Specifications
Weight Range 100g/m² to 800g/m²
Pore Size Range 0.1mm to 1.0mm
Customization Available to meet specific drainage requirements
Key Features & Benefits

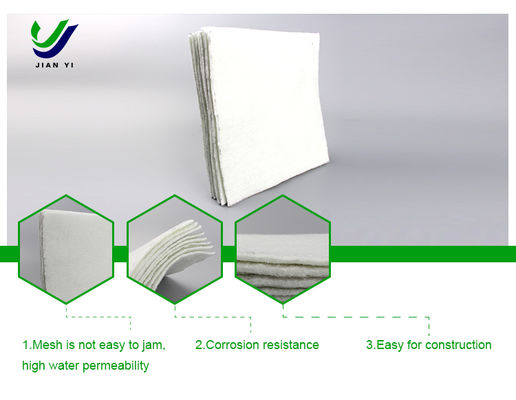

  • Superior Drainage Performance: Porous structure enables rapid water flow while retaining soil particles and preventing drainage system clogging
  • Effective Filtration Protection: Filters suspended solids and sediment to protect drainage pipes and equipment from blockage and damage
  • Exceptional Durability: Treated with anti-mildew, anti-corrosion, and UV-stabilization additives for stable performance in harsh mining environments
  • Chemical & Biological Resistance: Withstands acidic, alkaline, and high-salt mine water erosion while resisting microbial decomposition
  • Soil Stabilization: Binds surrounding soil to prevent erosion caused by water flow
Application Scenarios

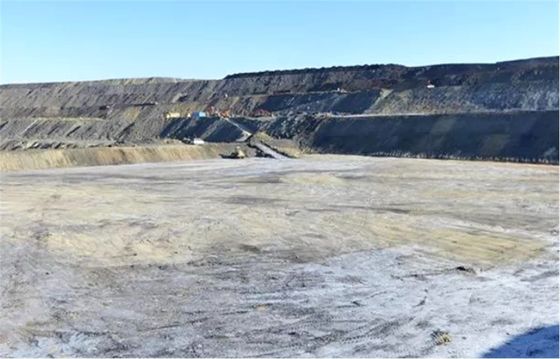

This geotextile is extensively used in various mine drainage applications including:
  • Leachate collection layers in tailings dams and waste rock yards
  • Groundwater drainage systems for open-pit mines to prevent slope instability
  • Surface water drainage ditches throughout mining areas
  • Subsurface drainage systems for mine roads and construction pits
  • Abandoned mine remediation and environmental restoration projects
Suitable for all mining operations including metal mines, coal mines, and non-metallic mines.
Installation Guidelines
Important Installation Notes:
  • Position geotextile with porous side facing water flow direction for optimal drainage efficiency
  • Ensure flat, taut installation with 10-15cm overlaps between adjacent sections
  • For subsurface systems, place around drainage pipes and cover with gravel or sand
  • Avoid dragging over sharp objects to prevent puncture damage
  • Conduct regular inspections for potential blockages
  • Minimize prolonged direct sunlight exposure when not in use
