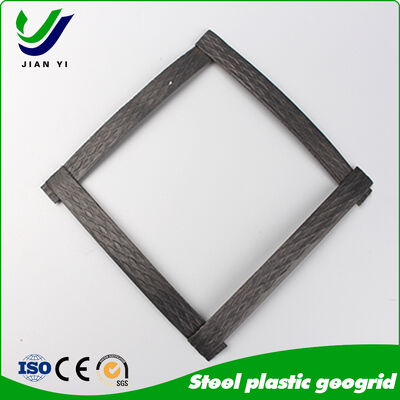

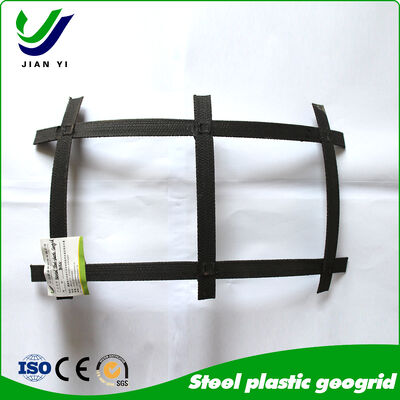

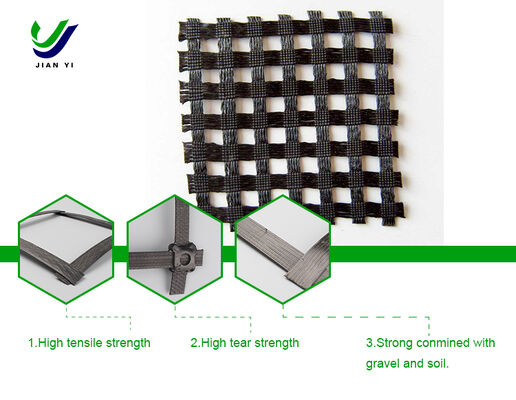

High-Tensile Strength Steel Geogrid with UV Resistance and 30~120KN/m Tensile Resistance for Heavy-Duty Road Construction

High-Tensile Strength Steel Geogrid with UV Resistance and 30~120KN/m Tensile Resistance for Heavy-Duty Road Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Carrying Capacity: Strong
Surface: Rough
Two-way Limited Tensile Resistance: 30~120KN/m
Tensile Resistance When Elongation In The 1%: 23~98KN/m
Uv Resistance: Yes
Material: Polypropylene
Color: Black
Highlight:

High-tensile steel geogrid for road construction

,

UV-resistant biaxial plastic geogrid

,

Heavy-duty geogrid with 30~120KN/m tensile
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description
High-Tensile Steel Geogrid for Heavy-Duty Road Construction
Steel Geogrid is a high-strength geosynthetic material manufactured from premium low-carbon steel wire or steel plate. Through advanced welding, stretching, and anti-corrosion treatment processes, it delivers exceptional tensile strength, creep resistance, and corrosion resistance for superior roadbed reinforcement.
This product meets ASTM and EN international standards, effectively enhancing roadbed bearing capacity, dispersing surface stress, and preventing settlement and cracking in demanding heavy-duty applications.
Manufacturing Process & Quality Standards
Production Excellence
Our manufacturing process strictly adheres to international standards:
  • Material selection using high-quality low-carbon steel wire (ASTM A36/A1011 or EN 10025 S235JR)
  • Precision drawing and straightening to specified steel bar specifications
  • Automated resistance welding (WPS welding process specification) for uniform, robust grid structure
  • Hot-dip galvanizing treatment compliant with ASTM A123 or EN ISO 1461 for enhanced corrosion resistance
  • Custom cutting and packaging tailored to project requirements
Technical Specifications
Compliant with ASTM D4595-17, EN ISO 10318:2010, GB/T 17689-2014
Parameter Specification
Material Low-carbon steel wire (Q235, ASTM A36, EN 10025 S235JR)
Wire Diameter 4-12 mm
Grid Size 50*50 mm - 300*300 mm (customizable)
Longitudinal Tensile Strength ≥ 80 kN/m
Transverse Tensile Strength ≥ 80 kN/m
Elongation at Break ≤ 10%
Galvanized Layer Thickness 70-110 μm (ASTM A123: 70-100 μm; EN ISO 1461: 85-110 μm)
Service Life ≥ 50 years (in normal environment)
Application Scenarios
Ideal for demanding infrastructure projects requiring superior foundation reinforcement:
  • Heavy-duty road and highway construction (expressways, national highways, industrial roads)
  • Airport runways, freight yards, and port terminals
  • Soft soil roadbed reinforcement to accelerate consolidation and reduce settlement
Our steel geogrid significantly enhances foundation bearing capacity and extends project service life in the most challenging environments.
