Thi-Dimension Compound Geonet For Drainage Superior Drainage And Protection System
Product Introduction

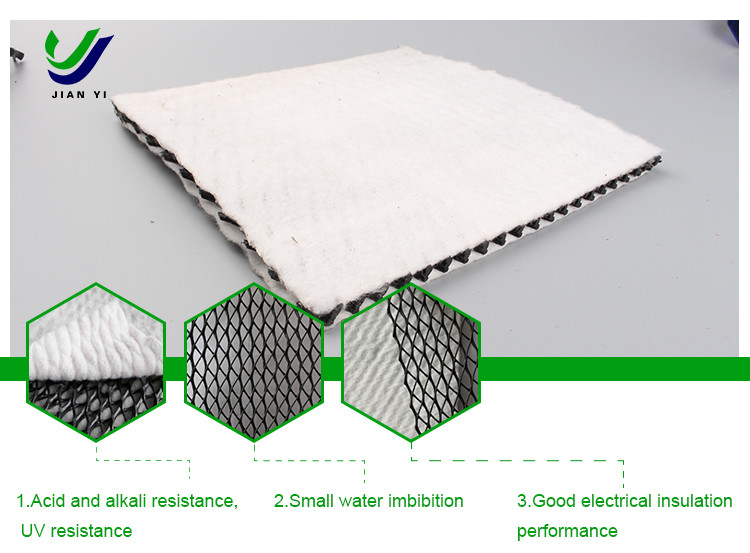

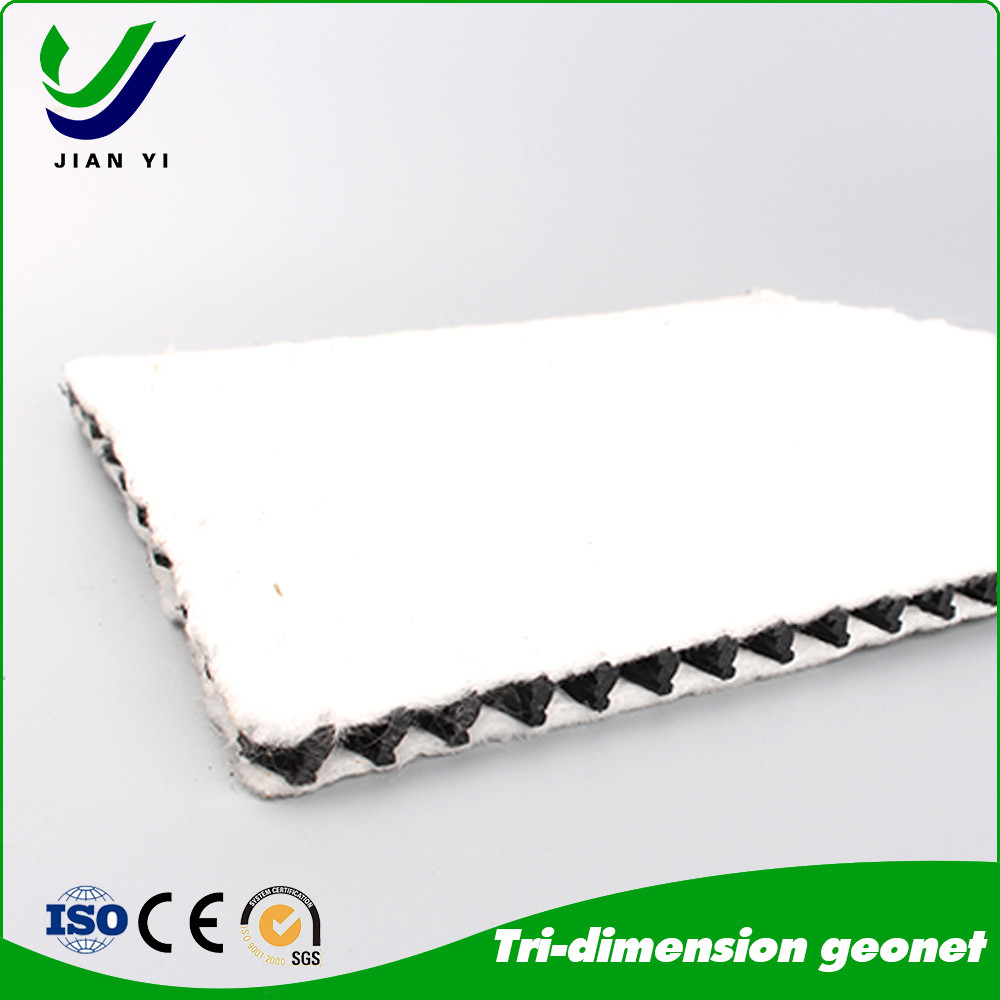

Thi-dimension compound geonet for drainage is made of a unique thi-dimension geonet and adhesive with geotextiles on both sides. It has the property of geotextile(filtration) and geonet(drainage and protection), it provide a complete function system" filtration-drainage-protection". The core of net with its unique tri-dimension structure can bear higher compressing load in construction and remanin the certain thickness, provide a good water conductivity.
3D drainage geonet 3D drainage network Drainage-geonet-HF10
Tri Dimension Composite Geonet Function
♦ Excellent drainage function, can bear long time high press load.
♦ High tensile and shear strength.
♦ Reduce the rate of geotextile embedding into the core of geonet, it can protect the water conductivity stable and long time.
♦ Can bear more than 2000kpa compression load.
♦ The anti-compression capacity is much higher than the common drainage geonet.
Tri Dimension Composite Geonet Production
-
Material Preparation
-
Extrusion & Molding
-
Cooling & Shaping
-
Geotextile Lamination
-
Cutting & Rolling
-
Quality Control
-
Packaging
Tri Dimension Composite Geonet Specification
Product Specification and Technical Index
| Drainage network core |
Specification |
| Unit Weight(g/m2) |
750 |
1000 |
1300 |
1600 |
1800 |
| Thickness(OV=20pa, mm) |
5.0 |
6.0 |
7.0 |
7.6 |
8.0 |
| Hydraulic Conductivity(m/s) |
K×10-4 |
K×10-4 |
K×10-3 |
K×10-3 |
K×10-3 |
| Elongation Rate(%) |
< 50 |
< 50 |
< 50 |
< 50 |
< 50 |
| Tensile Strength(core network, KN/m) |
8 |
10 |
12 |
13 |
14 |
| Geotextiles(g/m2) |
200-200 |
200-200 |
200-200 |
200-200 |
200-200 |
(CJ/T 452—2014)
| Project |
Index |
| Geotechnical drainage network |
Geotechnical composite drainage network |
| Density/(g/cm³) |
≥0.939 |
— |
| Carbon Black Content (%) |
2~3 |
— |
| Longitudinal Tensile Strength/(KN/m) |
≥8.0 |
≥16.0 |
| Longitudinal Hydraulic Conductivity (Normal Load 500KPa, Hydraulic Gradient 0.1)/(㎡/s) |
≥3.0×10-3 |
≥3.0×10-4 |
| Peel Strength/(KN/m) |
— |
≥0.17 |
| Mass Per Unit Area Of Geotextile/(g/㎡) |
— |
≥200 |
|
Tri Dimension Composite Geonet Application
1. Soft soil foundation drainage.
2. Back drain in retaining walls and dams.
3. Landfill drains.
4. Road drain
Application example:

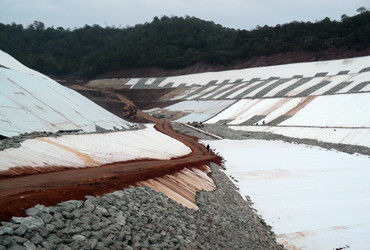

Our tri-planar geonet heat-bonded with nonwoven geotextile is applied in the protection of a retaining wall:
Tri Dimension Composite Geonet Installation
1. Orient the geosynthetics so that the length of the roll is perpendicular to the road.
2. Geosynthetics must be terminated, with the geotextiles on adjacent geonet cores overlapped along the roll.
3. Connect the rolls by connecting the geonet cores of adjacent geosynthetics with white or yellow plastic buckles or polymer straps. Connect with straps every 3 feet along the length of the roll.
4. The overlapped geotextiles must be in the same direction as the fill stacking.
If the geosynthetics are laid between the foundation/base and the subbase, continuous wedge welding, flat head welding or stitching should be performed to secure the upper layer of the overlapped geotextiles.
If stitching is used, it is recommended to use the flat head stitching method or the general stitching method to achieve the economical requirements of the stitch length.
Jianyi ---Your Professional Composite Geonet Manufacturer
Jianyi New Material Co.,Ltd, which is the professional manufacturer specialized in R&D, produce, sales and installation of environmentally friendly materials.

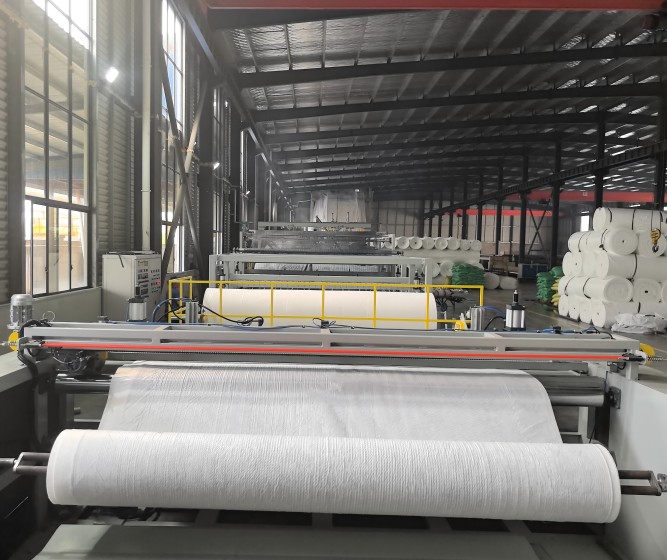

We have one advanced imported geomembrane production line, two world-class HDPE geomembrane production lines, and one textured HDPE geomembrane production line. Our capacity of HDPE geomembrane can be 60 metric tons per day.
Jianyi is the largest manufacturer of Composite Geonet in Hunan,we are one of the member units of HNWPA.

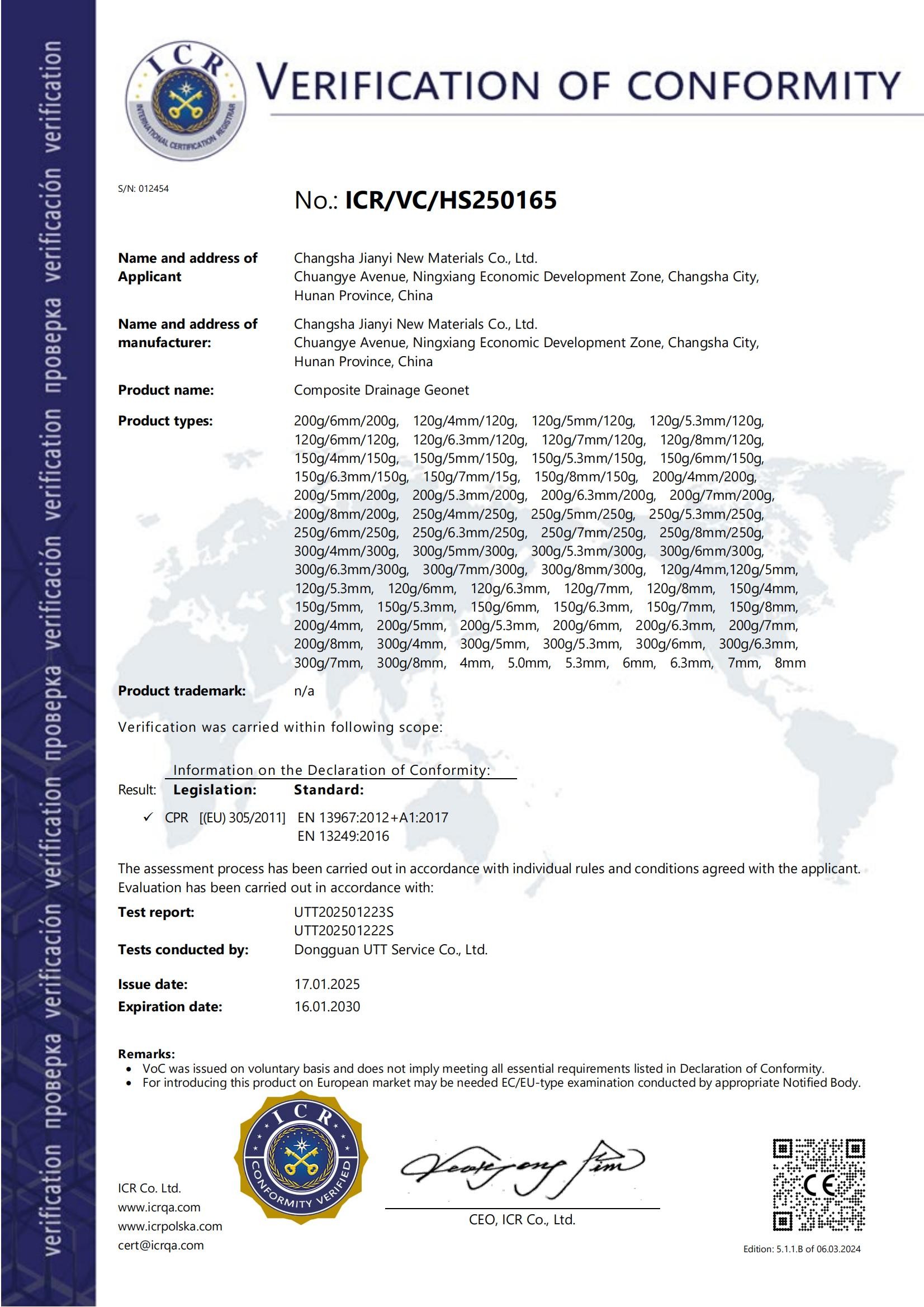

We have certificated by ISO9001, ISO14001 ISO45001 and CE.
We have about 20 patents, part of them as follows:
Patent for Geotextile Netting Machine/Composite geomat patent/Patent for composite film trimming device ect.
Changsha Jianyi have participated in many large-scale exhibitions abroad, such as Indonsia, Vietam, Russia , India, Philippine, Myanmar, Combodia etc ,our HDPE geomembrane products are deeply loved by exhibitors.
Changsha Jianyi have built a long term cooperation with many famous enterprises:
FAQ
Q1: How can we get a sample from you?
A1: Just contact us by email or phone or other contact ways and we will arrange to courier to you.
Q2: What is your MOQ?
A2: 1roll, around 180㎡
Q3: Can you send technicians to help us install them?
A3: Of course, yes. We can offer installation price and make some agreements.
