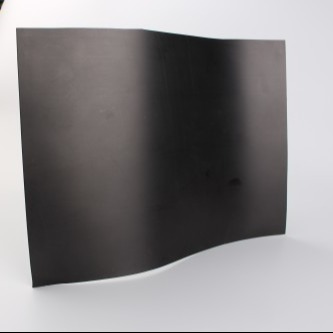

Waterproof And Seepage Smooth HDPE Geomembrane For Landfills And Sewages
Product Introduction
HDPE geomembrane is also knowned as high-density polyethylene impermeable geomembrane.
Waterproof material, the raw material is high-molecular polymer. The main components are 97.5% of HDPE and 2.5% of Carbon black/anti-aging agent/anti-oxygen/UV absorbent / stabilizer and other accessories.
Manufactured via triple co-extrusion technique by the most advanced automatic equipment which is imported from Italy.
Jianyi geomembranes are all manufactured according to National and city constructive standards,which is close US standards.
Its main function is anti-seepage and isolation.

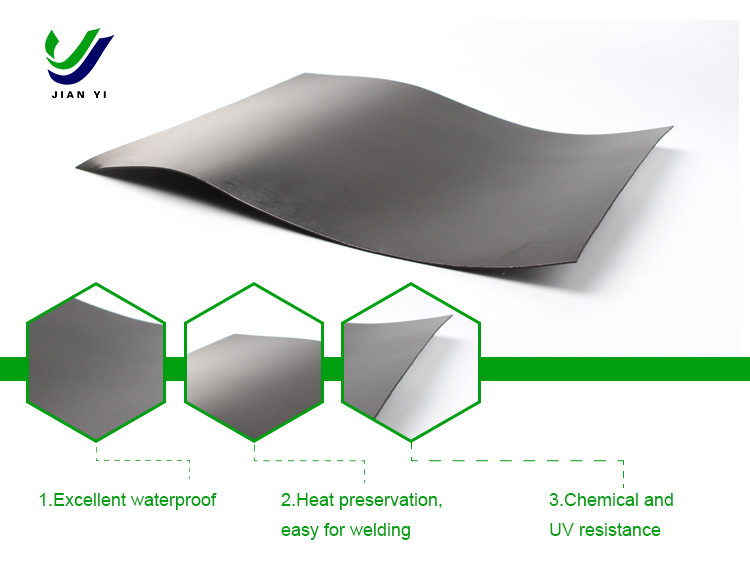

Advantages of HDPE geomembrane
1)High anti-seepage ratio:
HDPE geomembrane has a great anti-seepage effect unmatched by ordinary waterproof materials, and is recommended in some projects with high anti-seepage requirements.It's Permeability property is ≤1.0*10-13g●cm/(cm2●s●pa).
2)Chemical Stability:
It has excellent stability, acid and alkali resistance, salt solution, oil, alcohol, etc., and is mostly used in sewage treatment and landfills.
3)Anti plant root system
HDPE geomembrane has excellent puncture resistance and resists most plant roots. It is a must-choice product for planting roofs.
4)Aging resistance
HDPE geomembrane has excellent anti-aging, anti-ultraviolet, anti-decomposition capabilities. Oven aging at 85℃, standard OIT, 55% retained after 90 days, oven aging at 85℃,high pressure OIT, 80% retained after 90 days.
5)High Mechanic strength
It has good mechanical strength, and is first choice for seepage prevention in water conservancy projects. The tensile strength ,tear resistance, and puncture resistance properties all meet GRI-GM13 standard.
6)Low cost
Compared with other traditional materials, HDPE geomembrane has obvious cost advantages and is the best product for water storage and anti-seepage.
7)Environmental protection formulation
The raw materials used in Yingfan HDPE geomembrane have reached relevant international standards, and are non-toxic and environmentally friendly. Widely used in drinking water ponds, breeding ponds, etc.
8)Rapid construction
Compared with other traditional materials, HDPE geomembrane can be laid in a variety of forms to meet different construction requirements.

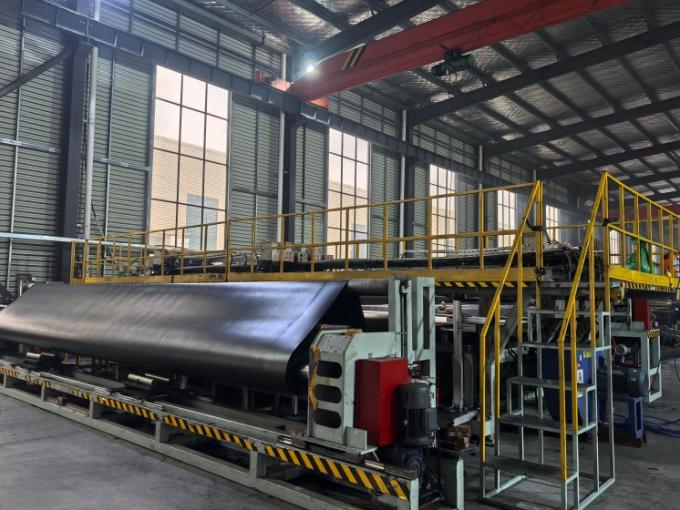

HDPE Geomembrane Production Process
The production of Jianyi High Density Polyethylene Geomembranes as follows:
Our product parts of testing equipments:
Thickness Tester Fiber Strength Tester Carbon Black Tester
Product Application
* The seepage control of landfills, sewages, waste disposal and etc.
* River banks, lake dams, tailings dams, sewage dams and reservoirs, irrigation channels and liquid storage pool( mines,pits).
* The anti-seepage lining for subways, basements, tunnels and etc.
* The brine seepage control of roadbeds and other foundations.
* The level of impervious blanket of dams, vertical anti-seepage layer of the basements,offerdam constructions, waste sites.
* Fish farms of sea water and fresh water.
* Used for The foundation of highways, railways, the waterproof layer of expansive soils and collapsible loess.
* Roofing seepage control.
Product Specification
Jianyi have Eight production lines, so we can supply complete specifications to meet different requirements of our customers.
- Smooth geomenbrane and Rough geomenbrane production line.
- Long fiber geotextile production line and Staple fiber geotextile production line
- Composite geomembrane production line
- 3m and 6m Compound drainage network production line
- Bentonite waterproof blanket production line
Product Specifications of Jianyi as follows:
* Thickness(mm): 0.30mm~3.00mm
* Width:1m~9m
* Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.

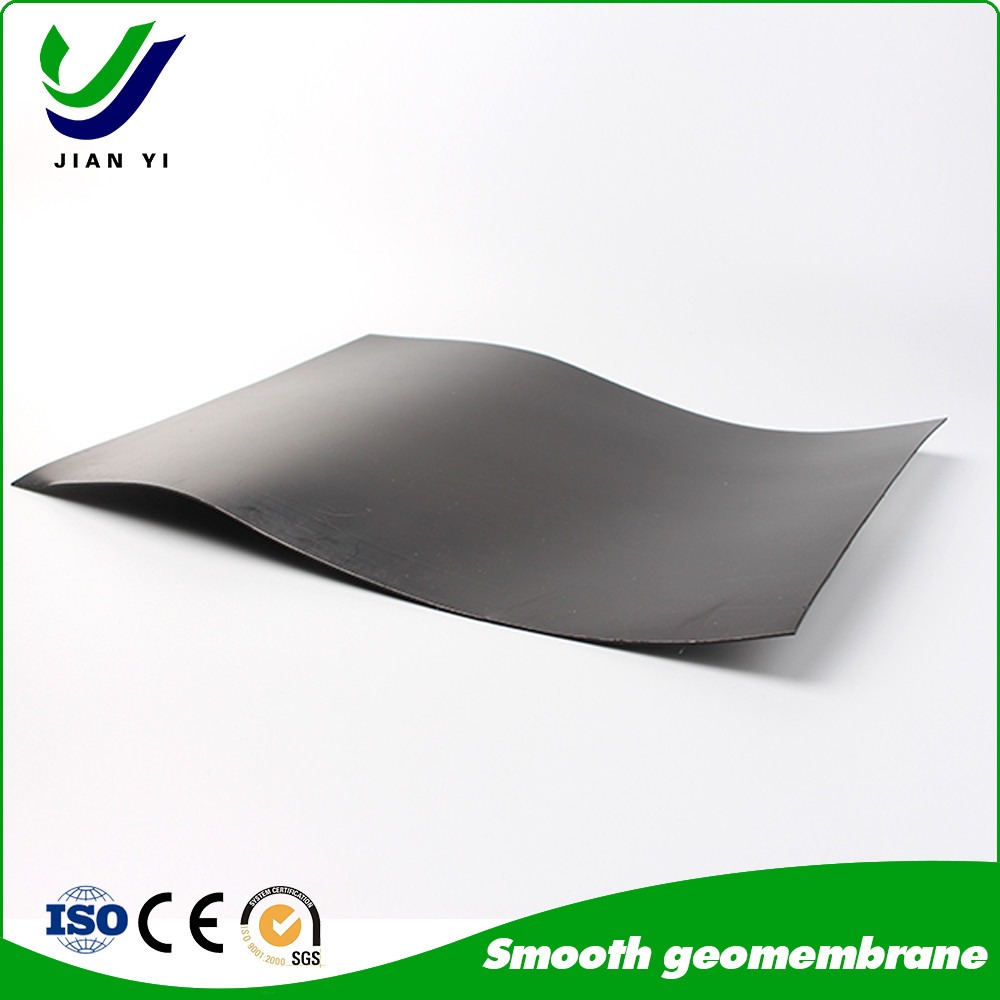

Smooth HDPE Geomembrane For Landfill and Sewage
(According to the Latest National standard: GH-2S & GB/T 17643-2011)
| Specification |
0.75mm |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
2.50mm |
3.00mm |
Remark |
| Item |
| Thickness (mm) |
0.75mm |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
2.50mm |
3.00mm |
|
| Density (g/c㎡,≥) |
0.939 |
|
| Tensile Properties |
| Yield Strength (N/mm,LD/TD) |
11 |
15 |
18 |
22 |
29 |
37 |
44 |
|
| Breaking Strength (N/mm,LD/TD) |
20 |
27 |
33 |
40 |
53 |
67 |
80 |
|
| Yeild Elongation Rate (%) |
12 |
|
| Breaking Elongation Rate (%) |
700 |
|
| Rectangular Tear Strength (N) |
93 |
125 |
156 |
187 |
249 |
311 |
374 |
|
| Puncture Strength (N) |
240 |
320 |
400 |
480 |
640 |
800 |
960 |
|
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method) |
300 |
|
| Carbon Black |
| Carbon Black Content(Rang) (%) |
2.0~3.0 |
|
| Carbon Black Dispersion |
Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3 |
|
| Oxidative Induction Time (OIT) |
| Standard OIT (min) |
100 |
|
| High Pressure OIT (min) |
400 |
|
| 85℃ Oven Ageing (Minimum Average) |
| 90 days after baking, the standard OIT retention(%) |
55 |
|
| 90 days after baking, the hight pressure OIT retention(%) |
80 |
|
| The Anti-UV Strength |
| Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) |
50 |
|
| Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) |
50 |
|
| -70℃ The Low Temperature Embrittlement Performance mpact |
Pass |
|
| Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) |
≤1.0X10-13 |
|
| Dimensional Stability |
±2 |
|
Product Specification and Technical Index
(According to the Latest National standard: GH-1 & GB/T 17643-2011)
Specification
Item |
0.30 |
0.50 |
0.75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
Remark |
| Thickness (mm) |
0.30 |
0.50 |
0.75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
|
| Density (g/c㎡,≥) |
0.94 |
| Tensile Yield Strength (N/mm, ≥,LD/TD) |
4 |
7 |
10 |
13 |
16 |
20 |
26 |
33 |
40 |
|
| Tensile Breaking Strength (N/mm, ≥,LD/TD) |
6 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
|
| Yield Elongation Rate (%,≥,LD/TD) |
- |
- |
- |
11 |
|
| Breaking Elongation Rate (%,≥,LD/TD) |
600 |
|
| Rectangular Tear Load (N,≥,LD/TD) |
34 |
56 |
84 |
115 |
140 |
170 |
225 |
280 |
340 |
|
| Puncture Strength (N,≥) |
72 |
120 |
180 |
240 |
300 |
360 |
480 |
600 |
720 |
|
| Carbon Black Content (%) |
2.0~3.0 |
|
| Carbon Black Dispersion |
Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed |
|
Jianyi ---Your Professional HDPE Geomembrane Sheet Manufacturer
Jianyi New Material Co.,Ltd, which is the professional manufacturer specialized in R&D, produce, sales and installation of environmentally friendly materials.
We have one advanced imported geomembrane production line, two world-class HDPE geomembrane production lines, and one textured HDPE geomembrane production line. Our capacity of HDPE geomembrane can be 60 metric tons per day.
Jianyi is the largest manufacturer of HDPE geomembrane in Hunan,we are one of the member units of HNWPA.
We have certificated by ISO9001, ISO14001 ISO45001 and CE.
ISO9001:2015 ISO14001:2015 ISO45001:2018 CE:2025
We have about 20 patents, part of them as follows:
Patent for Geotextile Netting Machine/Composite geomat patent/Patent for composite film trimming device ect.
Changsha Jianyi have participated in many large-scale exhibitions abroad, such as Indonsia, Vietam, Russia , India, Philippine, Myanmar, Combodia etc ,our HDPE geomembrane products are deeply loved by exhibitors.
Changsha Jianyi have built a long term cooperation with many famous enterprises:
HDPE Geomembrane Installation Specification

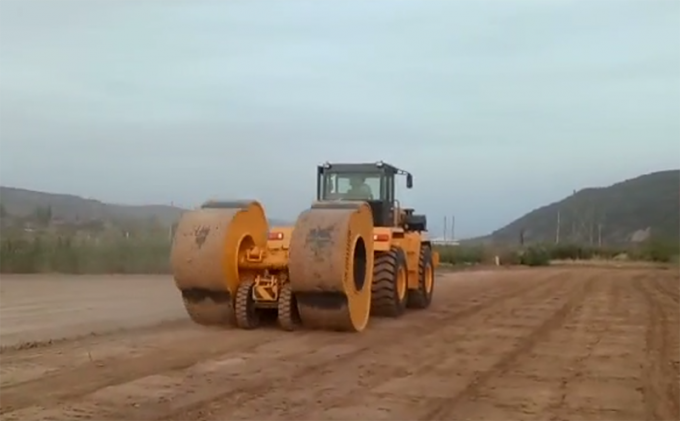

(1)Worksite treatment: The laying base should be solid and flat. There should be no roots, rubble, stones, concrete particles, steel bars, glass shards, etc. that may damage the HDPE geomembrane within a vertical depth of 25 mm.

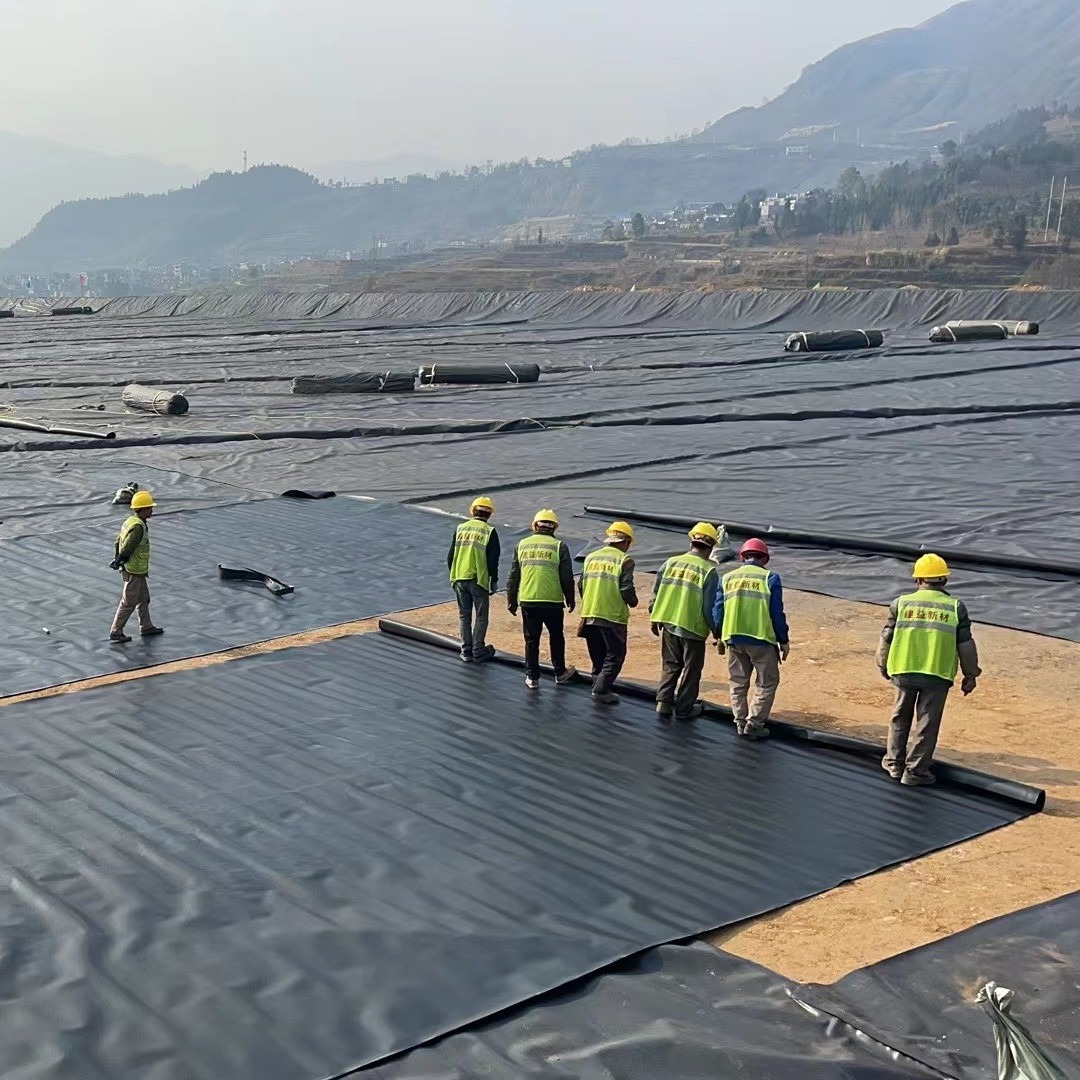

(2)Pave: The outdoor laying construction of HDPE geomembrane should be above 5 °C, and there is no rain or snow-free weather below 4 winds. When laying the geomembrane, the weld seam should be minimized. Under the premise of ensuring the quality, the raw materials should be saved as much as possible, and the quality can be easily ensured.
(3)Measure: measure the size for cutting.
(4)Cutting: Cutting according to actual size needs; the lap width is 10cm~15cm.
(5)Trial welding: Test welding must be performed before the welding work is carried out. The test welding shall be carried out on the sample of the impervious material provided. The length of the sample shall not be less than 1 m and the width shall not be less than 0.2 m. After the test welding was completed, three 2.5 cm wide test pieces were cut to test the tear strength and the weld shear strength.
(6)Welding: The geomembrane is welded using automatic crawl type double rail welding machine. An extrusion hot-melt welder shall be used where the double rail welding machine can not work. It's matched with the welding rod of the same material with geomembrane.The welding process are as follows: adjusting the pressure, setting the temperature, setting speed, joints inspection, geomembrane loading into the machine, start the motor.There shall be no oil or dust at the joints, and there shall be no debris, condensation, moisture and other debris in the lap joint surface of the geomembrane. Must be cleaned before welding.
(7)Inspect: Air pressure detection: When using automatic crawl type double rail welding machine, the air cavity is reserved in the middle of the weld, and the air pressure testing equipment should be used to detect the strength and air tightness. After the construction of a weld is completed, both ends of the weld cavity are sealed, and the air chamber of the weld is pressurized to 250 kPa with a gas pressure detecting device for 3-5 minutes, the air pressure should not be lower than 240 kPa.And then at the other end of the weld,when the opening is deflated, the barometer pointer can be quickly returned to the zero side as qualified.
(8)Repair: If geomembrane surface has holes and other defects and leakage, welding, damage, etc. in the welding process, use fresh base metal to repair them in time, make up each side more than the damaged part 10cm ~ 20cm.
(9)Anchor: There are many methods for geomembrane anchoring: grooved anchoring, nail anchoring, expansion bolt anchoring, and embedded parts.
FAQ
1.How To Repair HDPE Pond Liner ?
a.When the damaged part is small:
Generally, the diameter of hole is not more than 6mm. To repair this kind of damage, simply clean the damaged part and its surroundings, and then use the extrusion welding machine to repair, the material of welding rod is the same with the geomembrane.
b. When the damaged part is on the HDPE geomembrane plane:
To repair such damage, you need to clean up the damaged part, measure the area of the damaged part, and then cut the repair material of the same material and the same thickness into a circular or oval shape (the area is about three times of the damaged part) covered on the damaged part to repair, such repair is generally used hot air welding torch, extrusion welding machine or special adhesive for geomembrane.
