Features Gallery Product Description Request A Quote

Features

Specifications

Application: Landfill, Mining, Water Containment, Etc.

Thickness: 0.2~3mm

Material: HDPE (High-Density Polyethylene)

Color: Black，White，Green，Custom

Width: 3m - 8m

Length: 50~150m

Highlight:

8m Width Geosynthetic Membrane

Impermeable Geosynthetic Membrane

Landfill Impermeable Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: T/T, L/C

Supply Ability: 700T/Month

Gallery

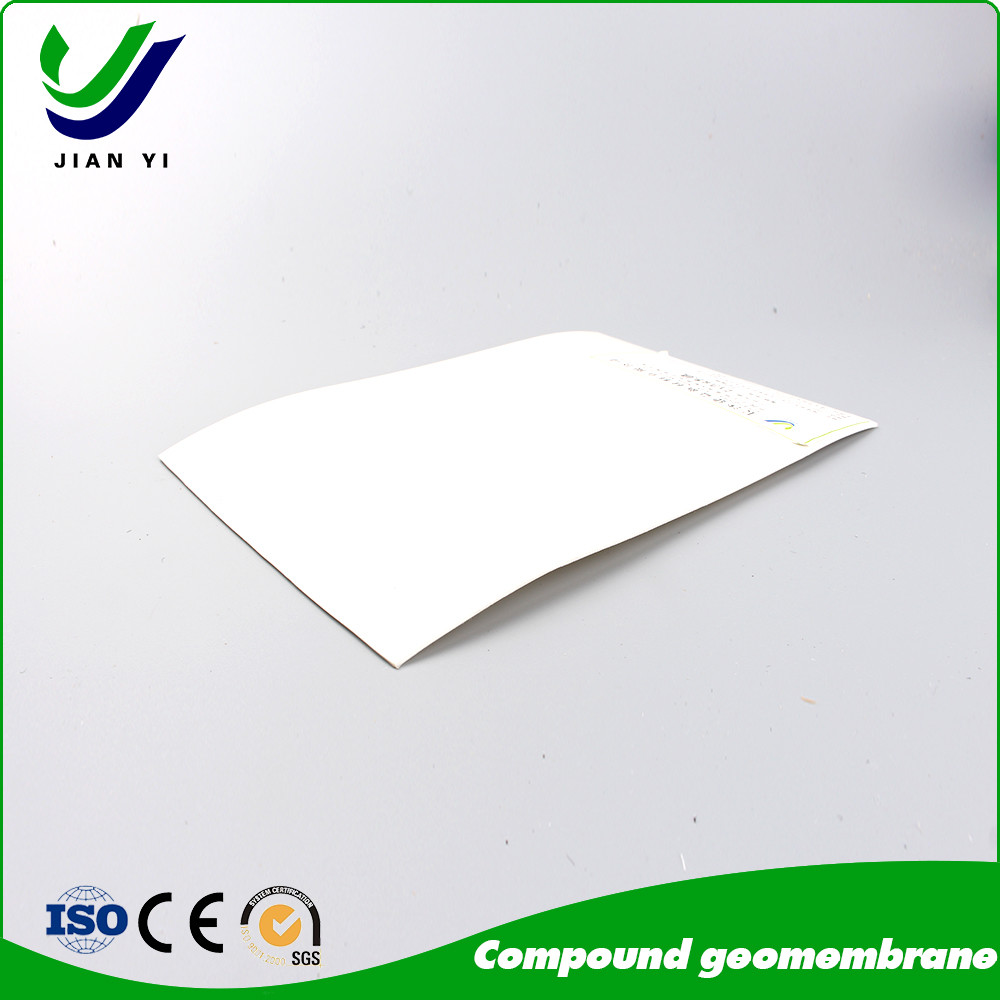

3-8m Width Geosynthetic Membrane Impermeable For Landfill

Product Description

3-8m Width Compound Geomenbrance High-Performance Geosynthetic Solution

Product Introduction

Composite geomembrane is an impermeable material which is composed of geotextile and geomembrane. It is mainly used for anti-seepage, it has high physical and mechanical properties, such as tensile, tear-resistant and roof-breaking, and can meet the needs of civil engineering such as Water Conservancy, municipal, construction, traffic, subway, tunnel and so on. Due to the selection of polymer materials and the addition of anti-aging agents in the production process, it can be used in unconventional temperature environment.

Product Properties

* Good anti-seepage and waterproof performance
* Good elasticity and the ability to adapt to the deformation
* Good ageing resistance, corrosion resistance ability
* Under high temperature use and long service life

Product Application

The product has high strength, good extensibility, large modulus of deformation, acid and alkali resistance, corrosion resistance, aging resistance, impermeability and so on.

Construction

Composite geomembrane can meet the needs of water conservancy, municipal, construction, transportation, Subway, tunnel, engineering construction, such as anti-seepage, isolation, reinforcement, crack reinforcement and other civil engineering needs. Commonly used in dykes, drainage ditch anti-seepage treatment, as well as waste yard anti-pollution treatment.

Product Specification

Product Specification and Technical Index (GB/T 17642-2008)

Item		Specifications								Remark
Geotextile Unit Weight (g/㎡)		300	500	600	700	800	900	1000	1100
Geomembrane Thickness (mm)		0.25-0.35				0.30-0.50
Nominal Fracture Strength (KN/m)		2.50	7.50	10	12	14	16	18	20
Breaking Strength (KN/m,≥,LD/TD)		2.50	7.50	10	12	14	16	18	20
Standard Intensity Corresponding Elongation Rate (%)		30~100
CBR Burst Strength (KN,≥)		0.70	1.50	1.90	2.20	2.50	2.80	3.00	3.20
Longitudinal Tear Strength (KN,≥)		0.05	0.25	0.32	0.40	0.48	0.56	0.62	0.70
Hydrostatic Pressve (Mpa)		See List Below
Peel Strength (N/cm,≥)		6
Vertical Permeability Coefficient (cm/s)		According to design or contract mentioned.
Width Variation (%)		-1.00

Specification Item		Geomembrane Thickness (mm)								Remark
Specification Item		0.20	0.30	0.40	0.50	0.60	0.70	0.80	1.00	Remark
Hydrostatic Pressve (Mpa)	One geotextiles with one geomembrane	0.40	0.50	0.60	0.80	1.00	1.20	1.40	1.60
Hydrostatic Pressve (Mpa)	Two geotextiles with one geomembrane	0.50	0.60	0.80	1.00	1.20	1.40	1.60	1.80
