Durability and Economy Compound Geomembrane for Environmental Protection Projects

300㎡
MOQ
0.41USD~5.5USD per sqm
Price

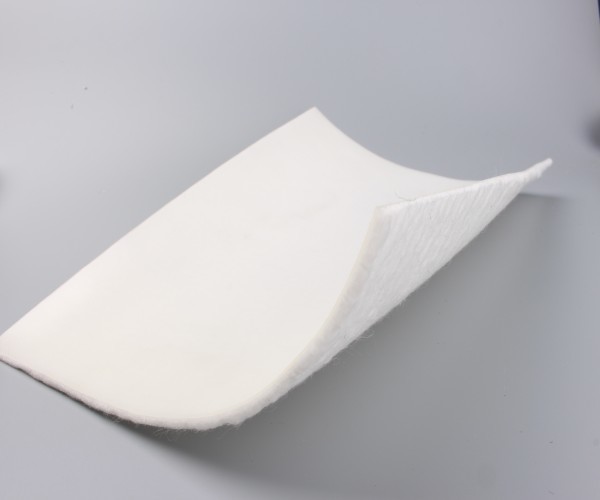

Durability and Economy Compound Geomembrane for Environmental Protection Projects
Features Gallery Product Description Chat Now
Features
Specifications
Application: Landfill, Mining, Water Containment, Etc.
Thickness: 0.2~3mm
Material: HDPE (High-Density Polyethylene)
Color: Black,White,Green,Custom
Width: 3m - 8m
Length: 50~150m
Highlight:

Construction Compound Geomembrane

,

200g Compound Geomembrane

,

Compound Geomembrane 0.5 Mm

Basic Infomation
Place of Origin: China Hunan
Brand Name: JianYi
Certification: ISO 9001
Model Number: 200g/0.5 mm/200g
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 700T/Month
Product Description

Durability and Economy Compound Geomembrane for Environmental Protection Projects



Product Introduction

Compound geomembrane is an impermeable material made by combining geotechnical fabrics with geomembranes. It uses plastic film as the base material for seepage prevention and is combined with non-woven fabric to form a geotechnical anti-seepage material. It is a commonly used type of geotechnical composite material.





Product Properties

•  Enhanced impermeability
•  Durability
•  Strong Adaptability
•  Construction convenient
•  Economy


Product Application

Composite geomembranes are suitable for various projects such as water conservancy, chemical industry, construction, transportation, subway, tunnel, waste treatment sites, etc. They are also used for reinforcing railway subgrade, maintaining highway pavement, protecting sports venues, dams, and water conservancy structures, isolating engineering buildings, tunnels, coastal beaches, land reclamation, and environmental protection projects.


Product Specification

Product Specification and Technical Index (GB/T 17642-2008)

Item Specifications Remark
Geotextile Unit Weight      (g/㎡) 300 500 600 700 800 900 1000 1100
Geomembrane Thickness (mm) 0.25-0.35 0.30-0.50
Nominal Fracture Strength (KN/m) 2.50 7.50 10 12 14 16 18 20
Breaking Strength (KN/m,≥,LD/TD) 2.50 7.50 10 12 14 16 18 20
Standard Intensity Corresponding Elongation Rate (%) 30~100
CBR Burst Strength (KN,≥) 0.70 1.50 1.90 2.20 2.50 2.80 3.00 3.20
Longitudinal Tear Strength (KN,≥) 0.05 0.25 0.32 0.40 0.48 0.56 0.62 0.70
Hydrostatic Pressve (Mpa) See List Below
Peel Strength (N/cm,≥) 6
Vertical Permeability Coefficient (cm/s) According to design or contract mentioned.
Width Variation (%) -1.00

 Specification
Item
Geomembrane Thickness (mm) Remark
0.20 0.30 0.40 0.50 0.60 0.70 0.80 1.00
Hydrostatic Pressve (Mpa) One geotextiles with one geomembrane 0.40 0.50 0.60 0.80 1.00 1.20 1.40 1.60
Two geotextiles with one geomembrane 0.50 0.60 0.80 1.00 1.20 1.40 1.60 1.80
