Features

Specifications

Puncture Resistance: 240-960N

Chemical Resistance: Excellent

Tear Strength: 93-374N

Usage: Liners

Color: Black, Green, Custom

Carbon Black Content: 2.0%-3.0%

Material: High Density Polyethylene (HDPE)

Application: Landfill, Mining, Water Containment, Etc.

Width: 1m-9m

Elongation At Break: 700%

Thickness: 0.3mm-3.0mm

Highlight:

Seamless HDPE Smooth Geomembrane

Seepage Control HDPE Smooth Geomembrane

9m HDPE Smooth Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

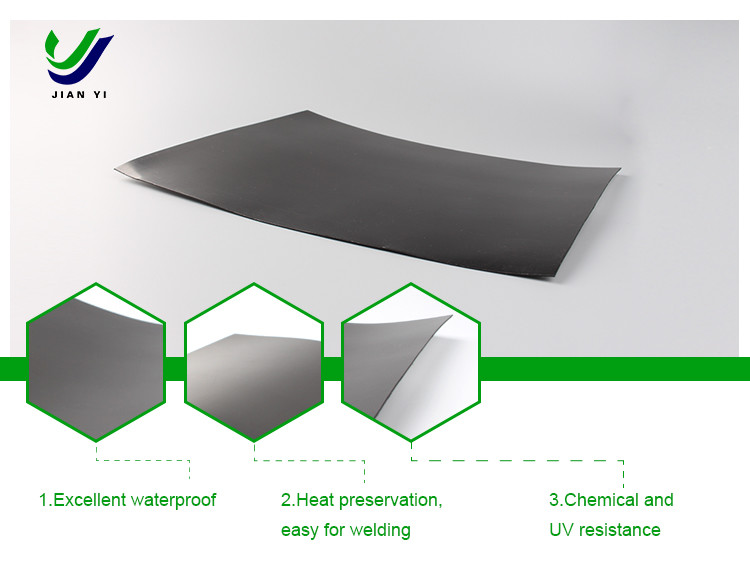

Seamless HDPE Smooth Geomembrane 1m-9m For Effective Seepage Control

Product Description

Seamless HDPE Smooth Geomembrane For Effective Seepage Control

Product Introduction

Smooth geomembrane, also known as smooth geomembrane, is a kind of waterproof barrier geosynthetic material with high polymer as the basic raw material. It is made of high quality primary high density polyethylene (HDPE) as impermeable substrate, adding carbon black, antioxidant, anti-aging agent, ultraviolet absorber and color masterbatch through special formula, and using three-layer co-extrusion blow molding technology. This material has very low permeability, excellent chemical resistance and UV resistance properties, and cost-effective, is the first choice of civil engineering seepage prevention materials, widely used in many fields.

Product Properties

1. Environmental protection: does not contain harmful substances, do not pollute the environment.
2. Reusability: Only the surface layer can be replaced, saving resources.
3. Wide range of application: suitable for basement, pool and other types of waterproof projects.
4. Uv resistance: Protects the material from UV damage.
5. Good stability: it is not easy to deform or break under physical action.

Product Application

1. Water conservancy: can be used for seepage, drainage, protection and so on.
2. Environmental protection: suitable for landfills, sewage treatment plants, etc.
3. Municipal engineering: can be used for waterproofing and protection of underground facilities.
4. Aquaculture: Used for seepage prevention of fish ponds, shrimp ponds, etc.
5. Sewage treatment: applied in tailings seepage prevention and landfill.
6. Landscape: provides beauty while ensuring water resistance.
7. Hydraulic engineering: plays a role in the seepage prevention of DAMS and reservoirs.

Product Specification

* Thickness(mm): 0.30mm~3.00mm
* Width:1m~9m
* Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.

Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (g/c㎡,≥)	0.939
Tensile Properties
Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	700
Rectangular Tear Strength (N)	93	125	156	187	249	311	374
Puncture Strength (N)	240	320	400	480	640	800	960
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Specification Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Remark
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/c㎡,≥)	0.94
Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
Yield Elongation Rate (%,≥,LD/TD)	-	-	-	11
Breaking Elongation Rate (%,≥,LD/TD)	600
Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
Carbon Black Content (%)	2.0~3.0
Carbon Black Dispersion	Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
