Features

Specifications

Tear Resistance: 93-374N

Thickness: 0.3-3.0mm

Type: Geomembranes

Chemical Resistance: Excellent

Width: 1m-9m

Puncture Resistance: 240-960N

Installation Method: Hot Wedge Welding

Material: HDPE

Temperature Range: -70℃ To 80℃

Length: 30m - 100m

Elongation At Break: 700%

Uv Resistance: Yes

Application: Landfill, Mining, Agriculture

Color: Black, Green, Custom

Highlight:

Smooth HDPE Geo Membrane

UV Resistant HDPE Geo Membrane

Liquid Treatment HDPE Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

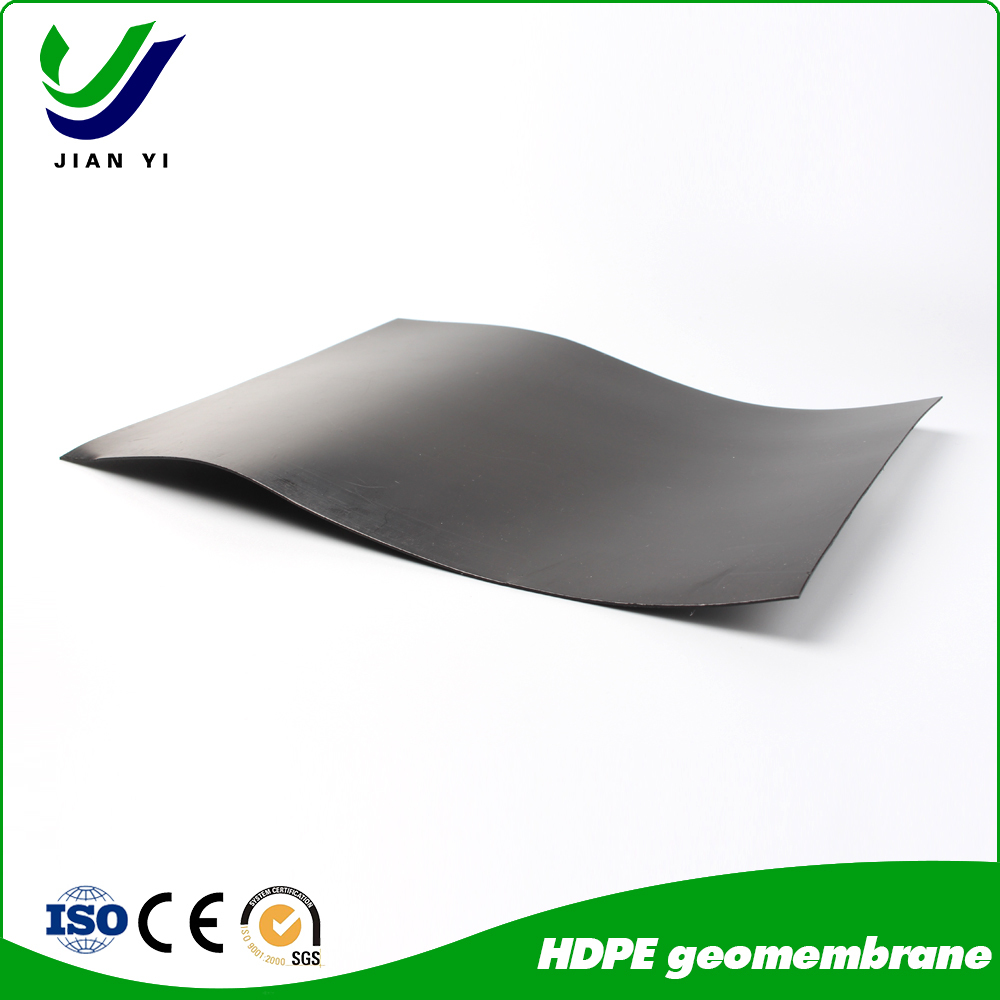

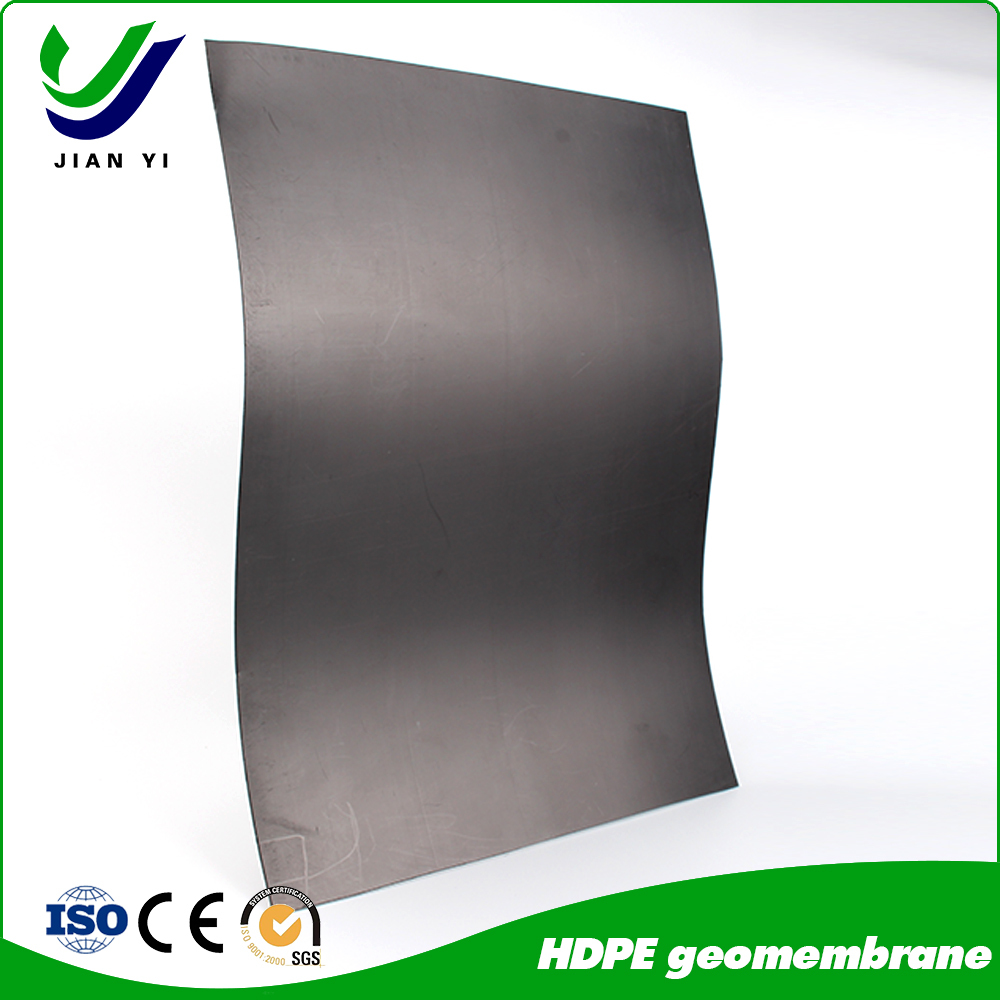

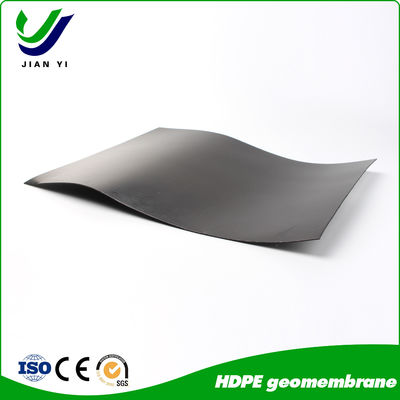

UV Resistant Smooth HDPE Geo Membrane For Waste Solid Liquid Treatment

Product Description

UV Resistant HDPE Smooth Geomembrane For Waste Solid Liquid Treatment

Product Introduction
Smooth geomembrane, also known as smooth geomembrane, is a widely used waterproof barrier geosynthetic material. The material is based on high polymer, which has extremely low permeability, excellent chemical resistance and UV resistance, and has a high cost performance.

Product Properties

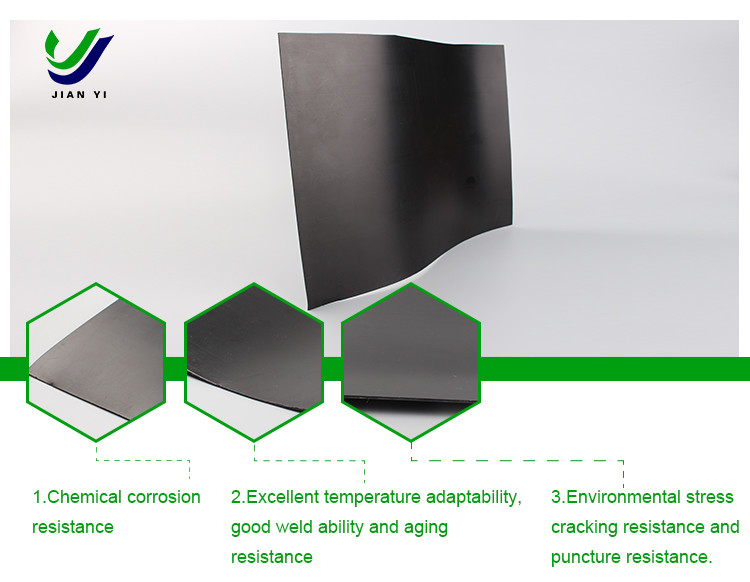

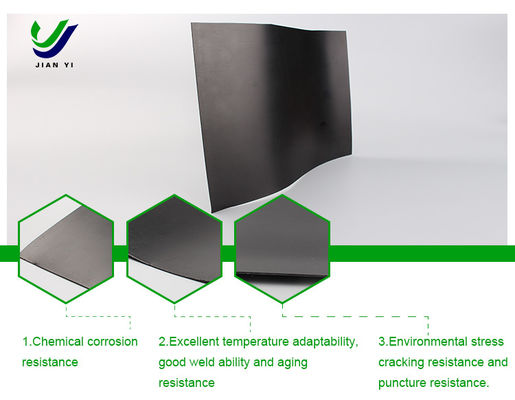

High anti-seepage coefficient, high tensile strength, high tear resistance, good deflection, strong acid, alkali, oil corrosion resistance, good heat and cold resistance, ultraviolet radiation resistance, good aging resistance, good weather resistance, good environmental protection, easy to weld, convenient installation and construction.

Product Application
1. Water conservancy project: river embankment, lake dam, tailings dam, sewage dam and other seepage prevention.
2. Waste solid liquid treatment: landfill, sewage treatment plant and other seepage prevention.
3. Municipal engineering: subway, building underground engineering and other anti-seepage lining.
4. Aquaculture: seawater, freshwater fish and shrimp farms, etc.
5. Garden project: waterproofing and moisture-proof of river and reservoir.
6. Salt industry: The crystallization ponds of salt farms are covered.
7. Transportation infrastructure: road, railway foundation waterproof layer, etc.
8. Petrochemical industry: chemical plants, refineries and other lining.
9. Mining engineering: washing pool, pile leaching pool and other bottom lining seepage prevention.

Product Specification
* Thickness(mm): 0.30mm~3.00mm
* Width:1m~9m
* Roll length:30m~100m (customized request accept)
PS: Customized request accept for all above.

Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (g/c㎡,≥)	0.939
Tensile Properties
Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	700
Rectangular Tear Strength (N)	93	125	156	187	249	311	374
Puncture Strength (N)	240	320	400	480	640	800	960
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Specification Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Remark
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/c㎡,≥)	0.94
Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
Yield Elongation Rate (%,≥,LD/TD)	-	-	-	11
Breaking Elongation Rate (%,≥,LD/TD)	600
Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
Carbon Black Content (%)	2.0~3.0
Carbon Black Dispersion	Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
