Chemical Resistance Drainage Geonet UV Resistant For Retaining Wall

90㎡

MOQ

0.96USD~3.44USD per sqm

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Color: Black

Chemical Resistance: Excellent

Width: 2m-6m

Uv Resistance: Excellent

Length: 50m-100m

Tensile Strength: ≥16kN/m

Weight: ≥200g/m2

Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall

Highlight:

UV Resistant Drainage Geonet

Retaining Wall Drainage Geonet

Chemical Resistance Composite Geonet

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: L/C, D/P

Supply Ability: 600T/Month

Gallery

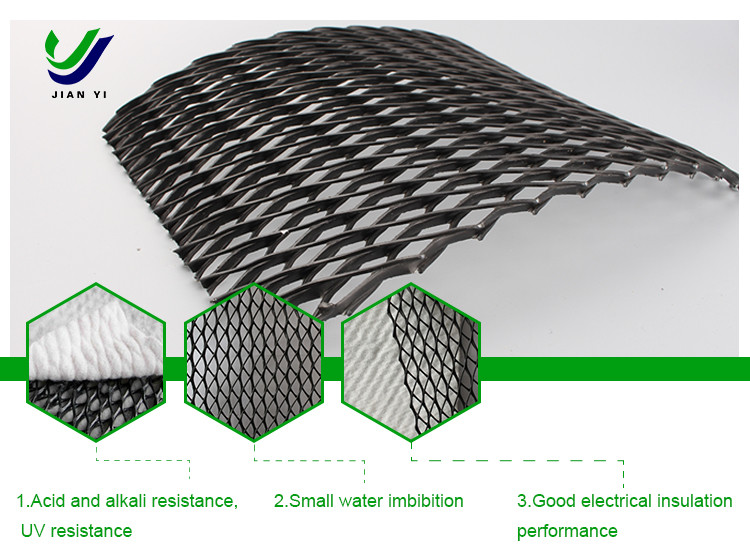

Chemical Resistance Drainage Geonet UV Resistant For Retaining Wall

Product Description

Strong And Durable Drainage Geonet For Various Construction Projects And Applications

Product Introduction

The three-dimensional composite drainage net is a new type of drainage geotechnical material, which consists of a three-dimensional plastic net with double-sided adhesive permeable geotextile1. This material has a unique three-dimensional structure, can withstand high compression loads during the entire use process, and can maintain a considerable thickness, providing good water conductivity

Product Property

♦ Strong drainage: strong drainage is equivalent to one meter thick gravel drainage

♦ High tensile strength: can withstand high pressure load for a long time Corrosion resistance

♦ Acid and alkali resistance: has a long service life

♦ Convenient construction: convenient construction can shorten the construction period and reduce costs

Product Application

Darinage for the landfill, roadbed and road surface, railway, tunnel, underground structure, back of retaining wall, garden and playground, etc.

Product Specification and Technical Index

Drainage network core	Specification
Unit Weight(g/m2)	750	1000	1300	1600	1800
Thickness(OV=20pa, mm)	5.0	6.0	7.0	7.6	8.0
Hydraulic Conductivity(m/s)	K×10-4	K×10-4	K×10-3	K×10-3	K×10-3
Elongation Rate(%)	< 50	< 50	< 50	< 50	< 50
Tensile Strength(core network, KN/m)	8	10	12	13	14
Geotextiles(g/m2)	200-200	200-200	200-200	200-200	200-200

(CJ/T 452—2014)

Project	Index
Project	Geotechnical drainage network	Geotechnical composite drainage network
Density/(g/cm³)	≥0.939	—
Carbon Black Content (%)	2~3	—
Longitudinal Tensile Strength/(KN/m)	≥8.0	≥16.0
Longitudinal Hydraulic Conductivity (Normal Load 500KPa, Hydraulic Gradient 0.1)/(㎡/s)	≥3.0×10-3	≥3.0×10-4
Peel Strength/(KN/m)	—	≥0.17
Mass Per Unit Area Of Geotextile/(g/㎡)	—	≥200
Mass Per Unit Area Of Geotextile/(g/㎡)	—	≥200
