200g/6.3mm/200g Drainage Geonet For Complete Anti Filtration Protection

90㎡

MOQ

0.96USD~3.44USD per sqm

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Color: Black

Chemical Resistance: Excellent

Width: 2m-6m

Uv Resistance: Excellent

Length: 50m-100m

Tensile Strength: ≥16kN/m

Weight: ≥200g/m2

Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall

Highlight:

200g Drainage Geonet

Anti Filtration Drainage Geonet

6.3mm Drainage Geonet

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: L/C, D/P

Supply Ability: 600T/Month

Gallery

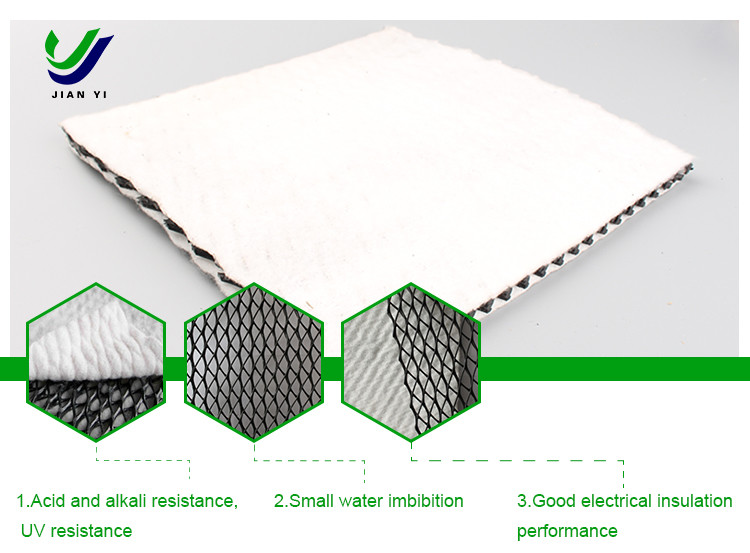

200g/6.3mm/200g Drainage Geonet For Complete Anti Filtration Protection

Product Description

200g/6.3mm/200g Long-Lasting Drainage Geonet For Complete Anti-Filtration Protection

Product Introduction

It is a common specification of three-dimensional composite drainage net. Among them, 200g represents the unit mass area of geotextiles on both sides, that is, the weight of fabric per square meter is 200 grams. And 6.3mm represents the height of the mesh core

Product Application

This three-dimensional composite drainage network is mainly used for drainage of landfills, roadbeds and tunnel walls. It can replace traditional sand and gravel layers and provide complete anti-filtration-drainage-protection functions.

Product Property

The three-dimensional composite drainage net has high tensile strength and shear strength, can withstand long-term high pressure loads, and can maintain a considerable thickness, providing good water conductivity. In addition, it also has good corrosion resistance and acid and alkali resistance, and has a long service life.

Product Specification and Technical Index

Drainage network core	Specification
Unit Weight(g/m2)	750	1000	1300	1600	1800
Thickness(OV=20pa, mm)	5.0	6.0	7.0	7.6	8.0
Hydraulic Conductivity(m/s)	K×10-4	K×10-4	K×10-3	K×10-3	K×10-3
Elongation Rate(%)	< 50	< 50	< 50	< 50	< 50
Tensile Strength(core network, KN/m)	8	10	12	13	14
Geotextiles(g/m2)	200-200	200-200	200-200	200-200	200-200

(CJ/T 452—2014)

Project	Index
Project	Geotechnical drainage network	Geotechnical composite drainage network
Density/(g/cm³)	≥0.939	—
Carbon Black Content (%)	2~3	—
Longitudinal Tensile Strength/(KN/m)	≥8.0	≥16.0
Longitudinal Hydraulic Conductivity (Normal Load 500KPa, Hydraulic Gradient 0.1)/(㎡/s)	≥3.0×10-3	≥3.0×10-4
Peel Strength/(KN/m)	—	≥0.17
Mass Per Unit Area Of Geotextile/(g/㎡)	—	≥200
Mass Per Unit Area Of Geotextile/(g/㎡)	—	≥200
