Features

Specifications

Application: Landfill, Mining, Water Containment, Etc.

Thickness: 0.2~3mm

Material: HDPE (High-Density Polyethylene)

Color: Black，White，Green，Custom

Width: 3m - 8m

Length: 50~150m

Highlight:

High Strength Compound Geomembrane

Anti Seepage Landfill Compound Geomembrane

Landfill Geocomposite Membrane

Basic Infomation

Place of Origin: China Hunan

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: T/T, L/C

Supply Ability: 700T/Month

Gallery

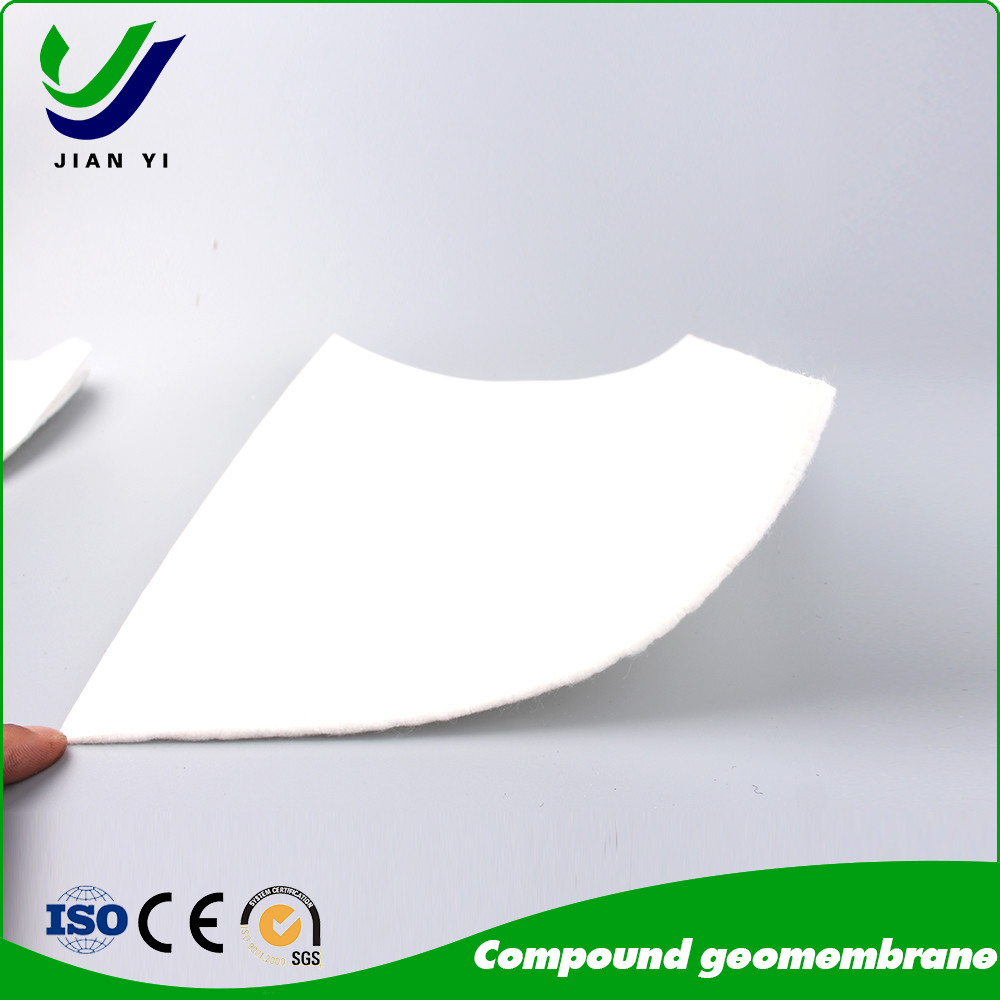

High Strength Compound Geomembrane For Anti Seepage Treatment Landfill

Product Description

High Strength Compound Geomembrane For Environmental Protection Systems

Product Introduction

Composite geomembrane is a geosynthetic product made by combining geomembrane and geotechnical fabric through co-pressing or polymer bonding. It comes in various forms such as one fabric and one membrane, two fabrics and one membrane, and two membranes and one fabric. Generally, it has a width of 4m to 6m and a mass of 200 to 1500 grams per square meter. It exhibits high tensile resistance, tear resistance, and puncture resistance, among other physical and mechanical performance indicators.

Product Properties

* Good anti-seepage and waterproof performance

* Good elasticity and the ability to adapt to the deformation

* Good ageing resistance, corrosion resistance ability

* Under high temperature use and long service life

Product Application

Composite geomembrane is widely used in many fields, such as hydraulic engineering reinforcement of reservoirs, lakes and canals, because of its excellent impermeability, tensile strength and other mechanical properties.

♦ Municipal construction: includes impervious lining for subways, basements and tunnels.

♦ Environmental Protection: anti-seepage treatment of landfill.

♦ Agricultural Water Conservancy: anti-seepage pavement of irrigation system.

♦ Traffic facilities: highway, railway subgrade anti-seepage treatment.

Product Specification

Product Specification and Technical Index (GB/T 17642-2008)

Item		Specifications								Remark
Geotextile Unit Weight (g/㎡)		300	500	600	700	800	900	1000	1100
Geomembrane Thickness (mm)		0.25-0.35				0.30-0.50
Nominal Fracture Strength (KN/m)		2.50	7.50	10	12	14	16	18	20
Breaking Strength (KN/m,≥,LD/TD)		2.50	7.50	10	12	14	16	18	20
Standard Intensity Corresponding Elongation Rate (%)		30~100
CBR Burst Strength (KN,≥)		0.70	1.50	1.90	2.20	2.50	2.80	3.00	3.20
Longitudinal Tear Strength (KN,≥)		0.05	0.25	0.32	0.40	0.48	0.56	0.62	0.70
Hydrostatic Pressve (Mpa)		See List Below
Peel Strength (N/cm,≥)		6
Vertical Permeability Coefficient (cm/s)		According to design or contract mentioned.
Width Variation (%)		-1.00

Specification Item		Geomembrane Thickness (mm)								Remark
Specification Item		0.20	0.30	0.40	0.50	0.60	0.70	0.80	1.00	Remark
Hydrostatic Pressve (Mpa)	One geotextiles with one geomembrane	0.40	0.50	0.60	0.80	1.00	1.20	1.40	1.60
Hydrostatic Pressve (Mpa)	Two geotextiles with one geomembrane	0.50	0.60	0.80	1.00	1.20	1.40	1.60	1.80
