Name: Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application
Brand: Hebei Bending Fence Technology Co., Ltd.
SKU: 6m-8m Width and 50m-150m Roll Length
Price: 3.55 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Color: Black

Uv Resistance: Yes

Length: 50m-100m

Application: Landfill Capping, Pond Liners, Waste Containment

Width: 6m-8m

Waterproof: Yes

Thickness: 0.5mm-2.5mm

Highlight:

Easy Construction Laying Textured Geomembrane

2.5mm Textured Geomembrane

1.0mm Waste Containment Textured Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001 & CE

Model Number: 6m-8m Width and 50m-150m Roll Length

Payment & Shipping Terms

Packaging Details: Plastic packaging

Delivery Time: 7-15 days

Payment Terms: T/T,L/C

Supply Ability: 1200t/month

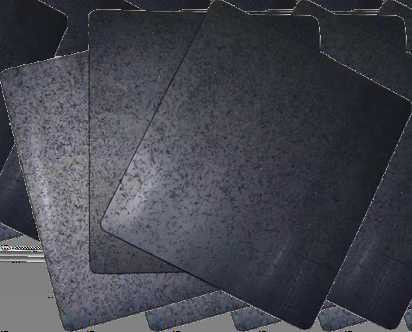

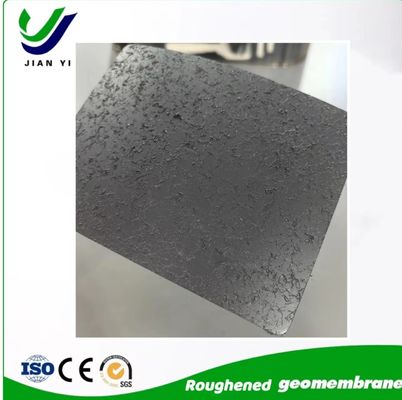

Gallery

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application

Product Description

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application

Product Introduction

Jianyi HDPE textured geomembranes are available with either single- or double-sided textured surface which exhibit superior shear strength and the high multi-axial performance. The textured surface processing is the only one that produces a textured material without significant reduction of any physical properties. The product allows project for greater slopes to be designed since frictional characteristics are enhanced. Compared with smooth HDPE geomembranes, they have better friction features.

The manufacturing of HDPE geomembrane textured contains approximately 97.5% polyethylene, 2.5% carbon black and trace amounts of anti-oxidants and heat stabilizers, no other additives, fillers or extenders are used. The textured surface is processed by spraying system.

Feature and Advantage of HDPE Geomenbrane Textured

1. Tear Resistant

2. Puncture Resistance

3. Very low permeability

4. Good friction performance

5. Alkali and acid resistance

Geomembrane Series

Textured HDPE Geomembrane For Landfill project national standard (GB/T 17643-2011(GH-2T1,GH-2T2))

Serial Number	Project	Index
Serial Number	Thickness(mm)	0.75	1.00	1.25	1.50	2.00	2.50	3.00
1	Density (g/c㎡,≥)	≥0.940
2	Textured Highth (mm)	≥0.25
3	Yield Strength (N/mm,LD/TD)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
4	Breaking Strength (N/mm,LD/TD)	≥8	≥10	≥13	≥16	≥21	≥26	≥32
5	Yeild Elongation Rate (%)	≥12
6	Breaking Elongation Rate (%)	≥100
7	Rectangular Tear Strength (N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
8	Puncture Strength (N)	≥200	≥270	≥335	≥400	≥535	≥670	≥800
9	Tensile Load Stress Cracking (Notch Constant Load Tensle Method) h	≥300
10	Carbon Black Content(Rang) (%)	2.0~3.0
11	Carbon Black Dispersion	There is not more than one grade 3 in 10 data, and grade 4 and grade 5 are not allowed
12	Oxidative Induction Time (OIT)	Standard OIT (min)≥100
12	Oxidative Induction Time (OIT)	High Pressure OIT (min)≥400
13	85℃ thermal aging (Atmospheric Pressure OIT Retention After 90 Day)	≥55
14	Ultraviolet Irradiation After 1600 Hours, The OIT Retention(%)	≥50

(CJ(City construction standard)-T234-2006)

Specification	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Textured Highth (mm)	0.25
Density (g/c㎡,≥)	0.94
Tensile Properties
Yield Strength (N/mm,LD/TD)	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	10	13	16	21	26	32
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	100
Rectangular Tear Strength (N)	125	156	187	249	311	374
Puncture Strength (N)	267	333	400	534	667	800
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Forms Ordinary sheet size/roll:

Thickness mm	Width meters	Length meters
1.0	5.8/6	50
1.0	7	50
1.5	5.8/6	50/100
1.5	7	50
2.0	5.8/6	50
	7	50
	8	50/100

HDPE Gemenbrane Texture Application

HDPE Geomembrane textured is used in applications that require increased frictional resistance, excellent chemical resistance and endurance properties.

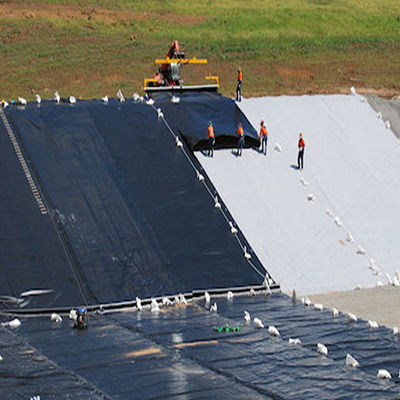

Solid waste landfills

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application 0

Mining, coal ash pond

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application 1

Dam and embankment erosion control

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application 2

Artificial lake lining

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application 3

HDPE Texture geomembrane spraying production equipment

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application 4

Service

1, Free sample available

2, Trial order acceptable

3, Customized packing acceptable

4, Excellent after-sales service system

Changsha Jianyi New Material Co., Ltd., headquarter in Hunan and having branches in Surrounding cities , is one of the leading and comprehensive geosynthetics manufacture and installation service provider in China. Our HDPE geomembrane production capability is top ranking in recent years around our country. Our company have CE certificate for HDPE geomembrane series products as well as ISO9001, ISO14001 company certificates.

We have improved our textured geomembrane equipment last year by bringing new spraying processing system.
