Features

Specifications

Application: Landfill, Mining, Water Containment, Etc.

Thickness: 0.2~3mm

Material: HDPE (High-Density Polyethylene)

Color: Black，White，Green，Custom

Width: 3m - 8m

Length: 50~150m

Highlight:

Impermeable HDPE Composite Geomembrane

Drainage HDPE Composite Geomembrane

Drainage HDPE Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: T/T, L/C

Supply Ability: 700T/Month

Gallery

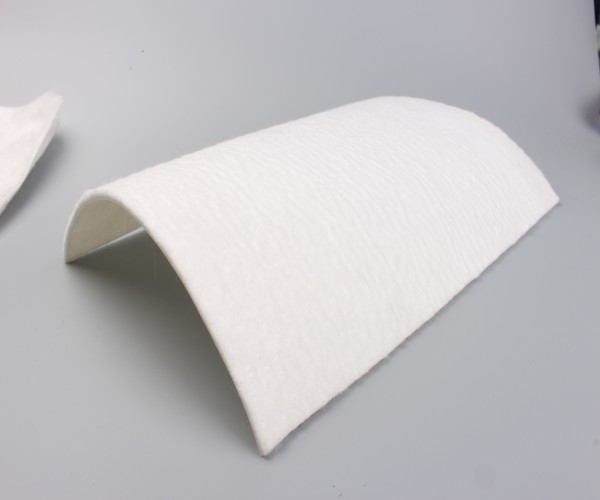

HDPE Composite Geomembrane The Ultimate Material for Impermeable and Drainage Applications

Product Description

Composite Geomembrane The Superior Material for Impermeable and Drainage Applications

Product Introduction

Composite geomembrane is a type of geotechnical material made by combining plastic film with non-woven fabric. It possesses various excellent properties, making it widely used in applications such as impermeable, drainage, isolation, and reinforcement.

Product Properties

1. Good physical and mechanical properties

2. Resistant to ultraviolet radiation, water resistance, and high and low temperature resistance.

3. Resistant to chemical agents, corrosion, and mold.

4. Good permeability

5. High tensile strength, low elongation

6. High tear resistance and excellent wear resistance

7. Water resistance

8. Combines both impermeable and drainage functions.

9. Long service life

10. Good cold and heat resistance

Product Application

The product has high strength, good extensibility, large modulus of deformation, acid and alkali resistance, corrosion resistance, aging resistance, impermeability and so on.

To sum up, the composite geomembrane has been widely used in modern engineering due to its excellent physical, chemical, and mechanical properties.

Product Specification

Product Specification and Technical Index (GB/T 17642-2008)

Item		Specifications								Remark
Geotextile Unit Weight (g/㎡)		300	500	600	700	800	900	1000	1100
Geomembrane Thickness (mm)		0.25-0.35				0.30-0.50
Nominal Fracture Strength (KN/m)		2.50	7.50	10	12	14	16	18	20
Breaking Strength (KN/m,≥,LD/TD)		2.50	7.50	10	12	14	16	18	20
Standard Intensity Corresponding Elongation Rate (%)		30~100
CBR Burst Strength (KN,≥)		0.70	1.50	1.90	2.20	2.50	2.80	3.00	3.20
Longitudinal Tear Strength (KN,≥)		0.05	0.25	0.32	0.40	0.48	0.56	0.62	0.70
Hydrostatic Pressve (Mpa)		See List Below
Peel Strength (N/cm,≥)		6
Vertical Permeability Coefficient (cm/s)		According to design or contract mentioned.
Width Variation (%)		-1.00

Specification Item		Geomembrane Thickness (mm)								Remark
Specification Item		0.20	0.30	0.40	0.50	0.60	0.70	0.80	1.00	Remark
Hydrostatic Pressve (Mpa)	One geotextiles with one geomembrane	0.40	0.50	0.60	0.80	1.00	1.20	1.40	1.60
Hydrostatic Pressve (Mpa)	Two geotextiles with one geomembrane	0.50	0.60	0.80	1.00	1.20	1.40	1.60	1.80
