Bentonite Geosynthetic Clay Liner for Seepage Prevention , Geosynthetic Type bentonite clay liner

Bentonite Geosynthetic Clay Liner The Ultimate Geosynthetic Material for Seepage Prevention

Product Introduction

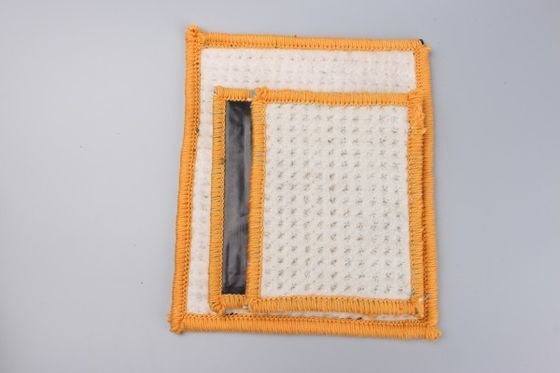

 Geosynthetics Clay Liner(abbreviated as GCL)  is a geosynthetic material specifically designed for preventing seepage. It mainly consists of high-swelling sodium-based bentonite filled between specially designed composite geotechnical fabrics and non-woven fabric, which are formed through needling. When exposed to water, this material can form a uniform, high-density gelatinous waterproof layer, effectively preventing water seepage.

Product Properties

1. High expansibility: sodium bentonite can absorb five times its own weight in water, and the volume can expand to more than 15-17 times the original.
2. Low permeability: The formation of a high-density diaphragm under water pressure, water permeability can reach 5×10^-11m/s, with strong waterproof performance.
3. Durability: As a natural inorganic material, sodium bentonite will not reduce performance due to aging or corrosion, and has long-term durability.
4. Environmental protection: harmless to the human body, friendly to the environment, is an environmentally friendly material.
5. Easy construction: no need to heat or paste, easy and fast construction.

Product Application

Bentonite waterproof blankets are widely used in various environmental engineering applications, such as:

Man-made lake water scenery

• Landfill

• Underground Parking Garage

• Rooftop Garden

• Pool

• Oil Depot

• Chemical Warehouse

In addition, it is also used in water conservancy projects, highway projects and other projects that require waterproofing.

Product Specification

*  Unit Weight: ≥4000g/㎡ (customized request accept)
*  Width: 4m~6m

*  Roll Length:
   PS: Customized request accept for all above.

Product Specification and Technical Index (JG/T 193-2006)
