Easy Construction Laying Textured Slope anti-slip Geomembrane 1.0mm-2.5mm For Waste Containment
Product Introduction

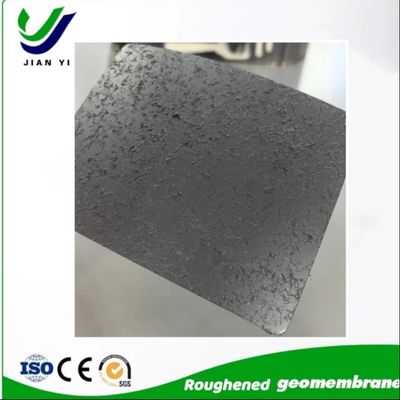

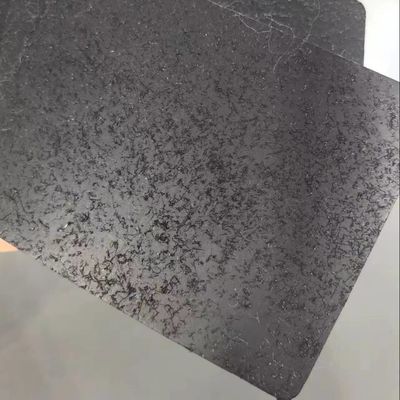

Textured roughened geomembrane is a special treated geomembrane with a particle-like rough surface formed through a special process, which enhances the friction performance of the membrane surface. This membrane utilizes updated production equipment during its production, resulting in a rough texture on the surface of the polyethylene impervious membrane, hence it is called spray rough geomembrane. It is mainly used for projects requiring larger friction coefficients, such as slope membrane surface coverage projects, including landfills, tailings storage yards, channel seepage prevention, dam seepage prevention, and subway engineering, etc.
Advantages of HDPE geomembrane
Enhanced Friction Performance
Textured surface increases interface friction with soils, geotextiles, and other materials, preventing slippage on steep slopes.
Superior Durability
UV-stabilized, chemical-resistant, and puncture-proof for a service life exceeding 50 years.
Environmental Safety
Certified for potable water containment and landfill applications (compliant with NSF/ANSI 61 and GRI-GM13 standards).
Easy Installation
Lightweight and flexible, allowing for quick deployment and welding.
Cost-Effective
Reduces long-term maintenance costs and project risks.

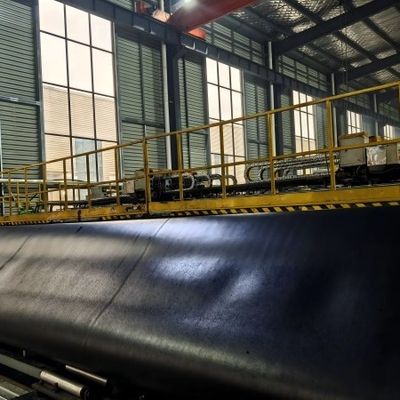

textured geomembranes Production Process
Our textured geomembranes are manufactured under strict quality control:
Raw Material Preparation: Virgin HDPE resin mixed with carbon black and antioxidants.
Co-Extrusion: Three-layer co-extrusion technology ensures uniform thickness and texture.
Surface Texturing: Secondary roughening creates a rough surface during cooling.
Quality Inspection: Real-time thickness monitoring, tensile testing, and texture analysis.
Rolling & Packaging: Cut to custom widths (2m–8m) and lengths, wrapped for protection.
Our product parts of testing equipments:
Thickness Tester Fiber Strength Tester Carbon Black Tester
Product Application
*Landfills: Base liners and caps to prevent leachate leakage.
*Mining: Heap leach pads, tailings ponds, and acid containment.
*Water Conservation: Reservoirs, canals, and aquaculture ponds.
*Agriculture: Biogas digesters and irrigation ponds.
*Civil Engineering: Tunnel waterproofing, roadbed stabilization.
Product Specification
Jianyi have Eight production lines, so we can supply complete specifications to meet different requirements of our customers.
- Smooth geomenbrane and Rough geomenbrane production line.
- Long fiber geotextile production line and Staple fiber geotextile production line
- Composite geomembrane production line
- 3m and 6m Compound drainage network production line
- Bentonite waterproof blanket production line
Product Specifications of Jianyi as follows:
* Thickness(mm): 0.50mm~2.50mm
* Width:6m~8m
* Roll length: 50m~100m (customized request accept)
PS: Customized request accept for all above.
Geomembrane Series
Textured HDPE Geomembrane For Landfill (GB/T 17643-2011(GH-2T1,GH-2T2))
| Serial Number |
Project |
Index |
| Thickness(mm) |
0.75 |
1.00 |
1.25 |
1.50 |
2.00 |
2.50 |
3.00 |
| 1 |
Density (g/c㎡,≥) |
≥0.940 |
| 2 |
Textured Highth (mm) |
≥0.25 |
| 3 |
Yield Strength (N/mm,LD/TD) |
≥11 |
≥15 |
≥18 |
≥22 |
≥29 |
≥37 |
≥44 |
| 4 |
Breaking Strength (N/mm,LD/TD) |
≥8 |
≥10 |
≥13 |
≥16 |
≥21 |
≥26 |
≥32 |
| 5 |
Yeild Elongation Rate (%) |
≥12 |
| 6 |
Breaking Elongation Rate (%) |
≥100 |
| 7 |
Rectangular Tear Strength (N) |
≥93 |
≥125 |
≥160 |
≥190 |
≥250 |
≥315 |
≥375 |
| 8 |
Puncture Strength (N) |
≥200 |
≥270 |
≥335 |
≥400 |
≥535 |
≥670 |
≥800 |
| 9 |
Tensile Load Stress Cracking (Notch Constant Load Tensle Method) h |
≥300 |
| 10 |
Carbon Black Content(Rang) (%) |
2.0~3.0 |
| 11 |
Carbon Black Dispersion |
There is not more than one grade 3 in 10 data, and grade 4 and grade 5 are not allowed |
| 12 |
Oxidative Induction Time (OIT) |
Standard OIT (min)≥100 |
| High Pressure OIT (min)≥400 |
| 13 |
85℃ thermal aging (Atmospheric Pressure OIT Retention After 90 Day) |
≥55 |
| 14 |
Ultraviolet Irradiation After 1600 Hours, The OIT Retention(%) |
≥50 |
|
(CJ-T234-2006)
| Specification |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
2.50mm |
3.00mm |
Remark |
| Item |
| Thickness (mm) |
1.00mm |
1.25mm |
1.50mm |
2.00mm |
2.50mm |
3.00mm |
|
| Textured Highth (mm) |
0.25 |
|
| Density (g/c㎡,≥) |
0.94 |
|
| Tensile Properties |
| Yield Strength (N/mm,LD/TD) |
15 |
18 |
22 |
29 |
37 |
44 |
|
| Breaking Strength (N/mm,LD/TD) |
10 |
13 |
16 |
21 |
26 |
32 |
|
| Yeild Elongation Rate (%) |
12 |
|
| Breaking Elongation Rate (%) |
100 |
|
| Rectangular Tear Strength (N) |
125 |
156 |
187 |
249 |
311 |
374 |
|
| Puncture Strength (N) |
267 |
333 |
400 |
534 |
667 |
800 |
|
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method) |
300 |
|
| Carbon Black |
| Carbon Black Content(Rang) (%) |
2.0~3.0 |
|
| Carbon Black Dispersion |
Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3 |
|
| Oxidative Induction Time (OIT) |
| Standard OIT (min) |
100 |
|
| High Pressure OIT (min) |
400 |
|
| 85℃ Oven Ageing (Minimum Average) |
| 90 days after baking, the standard OIT retention(%) |
55 |
|
| 90 days after baking, the hight pressure OIT retention(%) |
80 |
|
| The Anti-UV Strength |
| Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) |
50 |
|
| Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) |
50 |
|
| -70℃ The Low Temperature Embrittlement Performance mpact |
Pass |
|
| Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) |
≤1.0X10-13 |
|
| Dimensional Stability |
±2 |
|
Jianyi ---Your Professional HDPE Geomembrane Sheet Manufacturer
Jianyi New Material Co.,Ltd, which is the professional manufacturer specialized in R&D, produce, sales and installation of environmentally friendly materials.
We have one advanced imported geomembrane production line, two world-class HDPE geomembrane production lines, and one textured HDPE geomembrane production line. Our capacity of HDPE geomembrane can be 60 metric tons per day.
Jianyi is the largest manufacturer of HDPE geomembrane in Hunan,we are one of the member units of HNWPA.
We have certificated by ISO9001, ISO14001 ISO45001 and CE.
ISO9001:2015 ISO14001:2015 ISO45001:2018 CE:2025
We have about 20 patents, part of them as follows:
Patent for Geotextile Netting Machine/Composite geomat patent/Patent for composite film trimming device ect.
Changsha Jianyi have participated in many large-scale exhibitions abroad, such as Indonsia, Vietam, Russia , India, Philippine, Myanmar, Combodia etc ,our HDPE geomembrane products are deeply loved by exhibitors.
Changsha Jianyi have built a long term cooperation with many famous enterprises:
HDPE Geomembrane Installation Specification
Subgrade Preparation: Remove sharp objects; compact soil to 95% Proctor density.
Unrolling: Align rolls with slopes; minimize wrinkles.
Welding: Use dual-track hot wedge welders for seams (test weld seams via air pressure/vacuum box).
Anchoring: Secure edges in trenches or with anchor bolts.
Protection Layer: Cover with geotextile or soil (min. 30cm depth).
