Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications

180㎡
MOQ
0.83USD~2.75USD per sqm
Price
Reinforced Composite Bentonite Waterproof Blanket with High Tensile Strength and Long Service Life for Geosynthetic Clay Liner Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Width: 4-6m
Swelling Index: ≥24ml/2g
Type: Geosynthetic Clay Liner
Unit Weight: ≥4000g/㎡
Blue Clay: ≥30g/100g
Elongatio At Max Load: ≥10%
Pesistance Hydraulic Pressure: ≤5.0X10ˉ11m/s
Durability Of Bentonite: ≥20mL/2g
Highlight:

Reinforced Composite Bentonite Waterproof Blanket

,

High Tensile Strength Geosynthetic Clay Liner

,

Long Service Life Bentonite GCL
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4000-6000g/㎡
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: T/T,L/C
Supply Ability: 3000T/month
Product Description

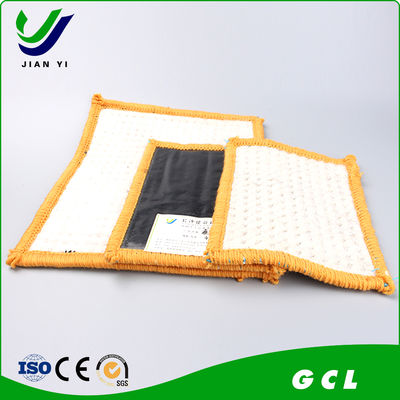

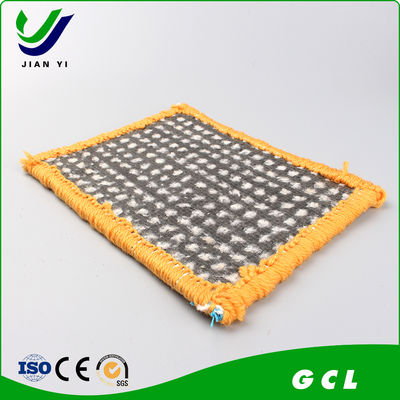

Bentonite Waterproof Blanket - Reinforced Composite Impermeable Material
Product Introduction
This reinforced bentonite waterproof blanket represents an advanced upgrade to traditional BWB technology. By integrating a high-strength geogrid between the bentonite layer and geotextile, the product achieves superior tensile strength and tear resistance while maintaining the exceptional water-swelling and impermeable properties of natural bentonite. Engineered for applications demanding enhanced structural integrity and waterproof reliability.

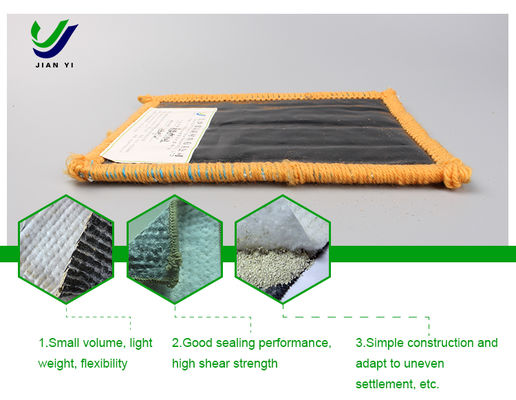

Product Features
  • High Tensile Strength: Geogrid reinforcement significantly enhances tensile strength and tear resistance, suitable for large-area installations and deformation-prone environments
  • Reliable Impermeability: Evenly distributed bentonite particles form a continuous impermeable layer that effectively blocks water seepage
  • Easy Installation: Lightweight and flexible design allows for simple cutting and laying, reducing construction complexity and improving efficiency
  • Long Service Life: Composite structure resists aging and damage, providing durable waterproof performance exceeding 50 years under normal conditions
Application Fields
Ideal for large-scale water conservancy projects including dams and sluices, highway and railway subgrade anti-seepage systems, landfill leachate collection and treatment facilities, industrial wastewater storage tanks, and coastal reclamation projects. Particularly suited for applications with extensive structural spans and demanding requirements for both anti-seepage performance and structural stability.
Product Installation Guidelines
  • Base Surface Preparation: Remove debris and sharp objects, level and compact the surface with flatness tolerance within ±5cm
  • Laying Sequence: Install from lower to upper sections along slopes; horizontal installation proceeds from upstream to downstream
  • Overlap Specifications: Maintain 20cm longitudinal overlap and 15cm transverse overlap widths
  • Connection Treatment: Apply bentonite paste to overlap areas for enhanced impermeability; secure with fixing nails at density of 2-3 nails per square meter
  • Inspection & Backfilling: Conduct comprehensive inspection for wrinkles, damage, and insufficient overlap; backfill with non-corrosive soil in compacted layers
Performance Advantage: The reinforced composite structure combines the proven waterproofing capabilities of bentonite with enhanced mechanical strength, delivering reliable long-term performance in demanding civil engineering applications.
