High Tensile Strength Three-Dimensional Composite Drainage Net with Excellent Chemical and UV Resistance for Landfill and Roadbed Projects

90㎡
MOQ
0.96USD~3.44USD per sqm
Price
High Tensile Strength Three-Dimensional Composite Drainage Net with Excellent Chemical and UV Resistance for Landfill and Roadbed Projects
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Chemical Resistance: Excellent
Width: 2m-6m
Uv Resistance: Excellent
Length: 50m-100m
Tensile Strength: ≥16kN/m
Weight: ≥200g/m2
Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall
Highlight:

High Tensile Strength Drainage Geonet

,

Excellent UV Resistance Composite Drainage Network

,

Stable Drainage Performance Three-Dimensional Composite Drainage Net
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4mm-8mm
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: L/C,D/P
Supply Ability: 600T/Month
Product Description

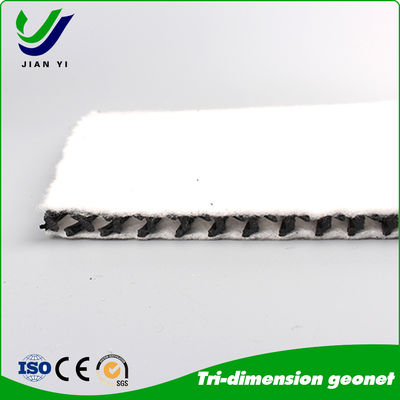

Three-Dimensional Composite Drainage Net
High-strength reinforced drainage material engineered for projects requiring exceptional drainage efficiency and structural integrity.
Product Overview

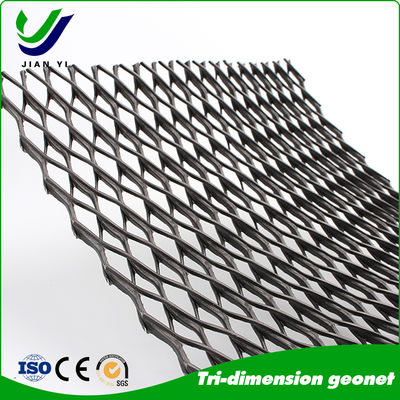

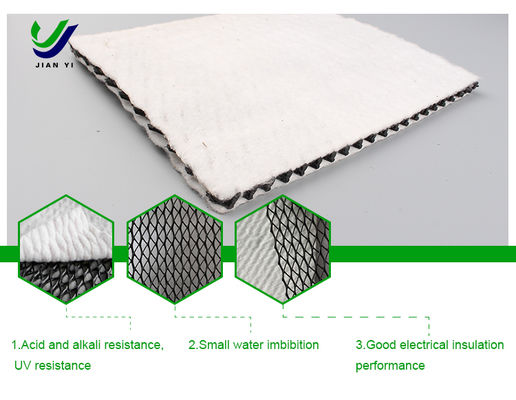

This advanced composite drainage net features a high-strength geogrid layer integrated between the three-dimensional mesh core and geotextile. The geogrid significantly enhances tensile strength and tear resistance while maintaining superior drainage performance through the three-dimensional mesh core structure.
Key Features
  • High Tensile Strength: Geogrid reinforcement provides exceptional tensile strength (≥ 50kN/m) and tear resistance, ideal for large-area installation and deformation-prone areas
  • Stable Drainage Performance: Fixed three-dimensional mesh core structure resists deformation under pressure, ensuring consistent drainage channel functionality
  • Enhanced Soil Integration: Geotextile and geogrid combination increases friction with soil, improving overall soil structure stability
  • Easy Installation: Lightweight, flexible design allows for simple cutting and laying, reducing construction complexity and increasing work efficiency
Application Areas
Ideal for large-scale water conservancy projects, high-speed railway and highway subgrade drainage, extensive landfill drainage systems, and deep foundation pit drainage. Particularly suitable for projects with large structural spans, high backfill loads, and demanding requirements for both drainage performance and structural stability.
Installation Guidelines
  1. Base Surface Preparation: For large-scale projects or soft base surfaces, reinforce with geotextile first to enhance bearing capacity
  2. Laying Sequence: Install in water flow direction with geogrid layer facing backfill soil. Maintain 20cm longitudinal overlap and 15cm transverse overlap, ensuring tight compression in overlap areas
  3. Anchor Bolt Fixing: Secure with high-strength anchor bolts at 1m spacing. Protect drainage net by covering bolt heads with protective caps
  4. Layered Backfilling: Backfill in 30-50cm layers, compacting each layer with a roller. Avoid direct heavy machinery contact with drainage net to prevent mesh core damage
Tag:

Roadbed Drainage Geonet

6.3mm Drainage Geonet

Geosynthetic Composite Drainage Network
