Three-Dimensional Composite Drainage Net with High-Efficiency Drainage, Excellent UV Resistance, and ≥16kN/m Tensile Strength

90㎡
MOQ
0.96USD~3.44USD per sqm
Price
Three-Dimensional Composite Drainage Net with High-Efficiency Drainage, Excellent UV Resistance, and ≥16kN/m Tensile Strength
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Chemical Resistance: Excellent
Width: 2m-6m
Uv Resistance: Excellent
Length: 50m-100m
Tensile Strength: ≥16kN/m
Weight: ≥200g/m2
Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall
Highlight:

Three-Dimensional Drainage Geonet with UV resistance

,

Composite Drainage Net high tensile strength

,

Efficient drainage geonet with 16kN/m strength
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4mm-8mm
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: L/C,D/P
Supply Ability: 600T/Month
Product Description

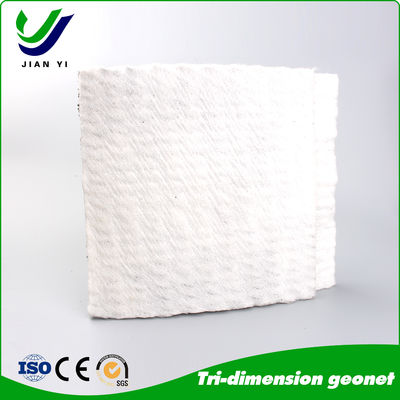

Three-Dimensional Composite Drainage Net
High-efficiency drainage and filtration material engineered for superior performance in demanding applications.
Product Overview

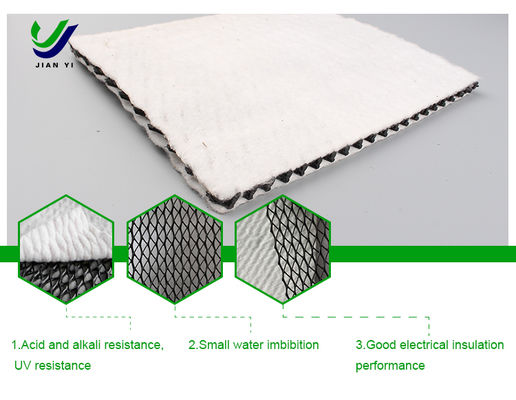

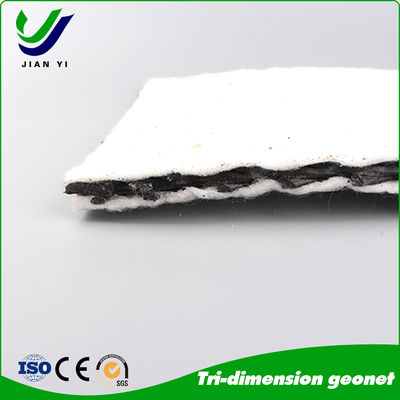

Our Three-Dimensional Composite Drainage Net consists of a three-dimensional plastic mesh core bonded between two layers of non-woven geotextile. The mesh core's high void ratio creates optimal drainage channels, while the geotextile layers provide effective filtration to prevent soil particle intrusion and clogging.
Key Features
  • High Drainage Efficiency: Mesh core with over 90% void ratio provides exceptional flow capacity, delivering 5-10 times faster drainage than traditional materials
  • Superior Filtration: Non-woven geotextile with optimized pore size effectively filters soil particles while maintaining long-term drainage stability
  • Exceptional Compressive Strength: Stable three-dimensional structure maintains optimal drainage performance under high pressure conditions
  • Durability & Resistance: Manufactured from high-quality HDPE material with excellent resistance to chemical corrosion, UV radiation, and aging
Application Areas
This drainage net is widely utilized in:
  • Landfill leachate drainage systems
  • Highway and railway subgrade drainage
  • Slope and embankment drainage
  • Basement exterior wall protection
  • Sports field drainage infrastructure
  • Soft soil foundation treatment
  • Coastal reclamation projects
Installation Guidelines
  1. Surface Preparation: Ensure base surface is level, clean, and free of sharp objects. Compact uneven areas to prevent damage to the drainage net.
  2. Laying Procedure: Position drainage net with geotextile facing soil. Lay from bottom to top along slopes, and upstream to downstream horizontally. Maintain 15-20cm overlap between adjacent nets.
  3. Securing & Connection: Fix drainage net to base surface using fixing nails at 1-1.5m intervals. Connect overlap areas with staples or adhesive to ensure watertight seals.
  4. Backfilling: Apply fine soil or sand backfill immediately after installation. Compact in layers and avoid direct heavy machinery contact with the drainage net.
Tag:

Roadbed Drainage Geonet

6.3mm Drainage Geonet

Geosynthetic Composite Drainage Network
