Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical Resistance and Tensile Strength ≥16kN/m

90㎡
MOQ
0.96USD~3.44USD per sqm
Price
Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical Resistance and Tensile Strength ≥16kN/m
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Chemical Resistance: Excellent
Width: 2m-6m
Uv Resistance: Excellent
Length: 50m-100m
Tensile Strength: ≥16kN/m
Weight: ≥200g/m2
Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall
Highlight:

lightweight drainage geonet with chemical resistance

,

thin 3D composite drainage net

,

high tensile strength drainage geonet
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4mm-8mm
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: L/C,D/P
Supply Ability: 600T/Month
Product Description

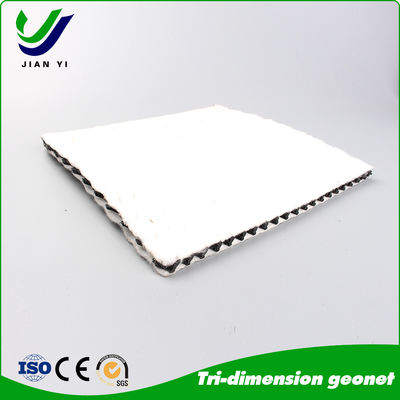

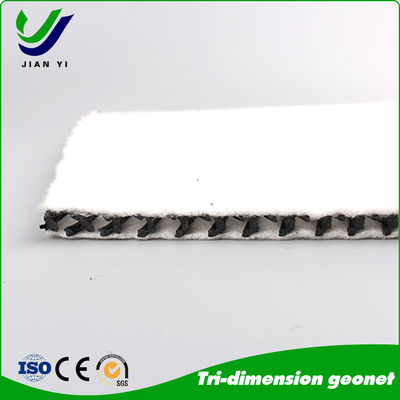

Three-Dimensional Composite Drainage Net
Lightweight and thin drainage material designed for space-constrained applications
Product Overview
This innovative three-dimensional composite drainage net features a thin, high-strength mesh core combined with lightweight non-woven geotextile. With a minimal thickness of only 3-5mm and weight under 200g/m², it optimizes construction space while reducing transportation and installation costs. The product delivers exceptional drainage performance in a compact, lightweight design ideal for space-limited projects.
Key Specifications:
Thickness: 3-5mm
Weight: ≤ 200g/m²
Overlap Width: 10cm
Fixing Spacing: 20-25cm
Product Features
  • Lightweight & Compact: Minimal thickness and weight for installation in narrow spaces and areas with limited load capacity
  • Excellent Flexibility: Easily folds and bends to accommodate curved surfaces and irregular shapes
  • High-Efficiency Drainage: Mesh core with optimal void ratio ensures reliable drainage performance for standard project requirements
  • Easy Installation: Can be cut to any size using ordinary scissors, eliminating need for specialized tools
Application Areas
Ideal for indoor floor drainage, wall drainage, roof drainage, small-scale garden landscape drainage, and renovation projects. Particularly suited for applications with limited construction space and lower load requirements.
Installation Guidelines
  1. Surface Preparation: Thoroughly clean the base surface, removing all dust, debris, and oil stains. Ensure surface is flat and dry.
  2. Cutting & Placement: Cut drainage net to required dimensions. Lay on prepared surface with 10cm overlap between adjacent sections. Secure overlap areas manually.
  3. Secure Fixing: Use environmentally friendly adhesive for indoor projects; employ small plastic nails for outdoor applications with 20-25cm spacing.
  4. Finishing: Cover surface with fine soil or decorative materials. For indoor applications, floor tiles or other finishes can be applied directly over the drainage net.
