Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical Resistance and Tensile Strength ≥16kN/m

90㎡
MOQ
0.96USD~3.44USD per sqm
Price
Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical Resistance and Tensile Strength ≥16kN/m
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Chemical Resistance: Excellent
Width: 2m-6m
Uv Resistance: Excellent
Length: 50m-100m
Tensile Strength: ≥16kN/m
Weight: ≥200g/m2
Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall
Highlight:

lightweight drainage geonet with chemical resistance

,

thin 3D composite drainage net

,

high tensile strength drainage geonet
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4mm-8mm
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: L/C,D/P
Supply Ability: 600T/Month
Product Description

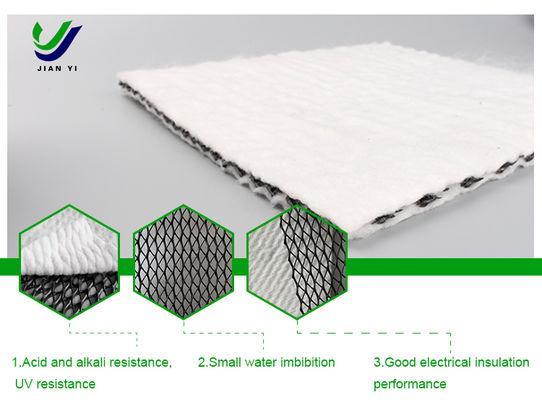

Three-Dimensional Composite Drainage Net
Lightweight and thin drainage material engineered for space-constrained applications with superior performance characteristics.
Product Overview
This innovative three-dimensional composite drainage net features a thin, high-strength mesh core combined with lightweight non-woven geotextile. With a minimal thickness of 3-5mm and weight under 200g/m², it optimizes construction space while reducing transportation and installation costs.
Key Advantages: Excellent drainage performance in limited spaces, cost-effective transportation and installation, and versatile application capabilities.
Product Features
  • Lightweight & Compact: Minimal thickness and weight ideal for narrow spaces and areas with limited load capacity
  • Superior Flexibility: Easily folds and bends to accommodate curved surfaces and irregular shapes
  • Efficient Drainage: High void ratio mesh core ensures optimal water flow for standard project requirements
  • Easy Installation: Can be cut to any size with ordinary scissors, eliminating need for specialized tools
Application Areas
Designed for indoor floor drainage, wall drainage, roof drainage, small-scale garden landscape systems, and renovation projects. Particularly effective in applications with limited construction space and lower load requirements.
Installation Guidelines
  1. Surface Preparation: Thoroughly clean and level the base surface, removing all dust, debris, and contaminants
  2. Cutting & Placement: Cut drainage net to required dimensions and lay on prepared surface with 10cm overlap between adjacent sections
  3. Secure Installation: Use eco-friendly adhesive for indoor projects or small plastic nails for outdoor applications (20-25cm spacing)
  4. Final Finishing: Cover with fine soil or decorative materials; for indoor use, directly apply floor tiles or other finishing surfaces
Specification Value
Thickness 3-5mm
Weight ≤ 200g/m²
Overlap Width 10cm
Fixing Spacing 20-25cm
Tag:

Roadbed Drainage Geonet

6.3mm Drainage Geonet

Geosynthetic Composite Drainage Network
