Eco-Friendly Non-Toxic Durable Geosynthetic Clay Liner for Water Conservancy and Landscape Projects

180㎡
MOQ
0.83USD~2.75USD per sqm
Price
Eco-Friendly Non-Toxic Durable Geosynthetic Clay Liner for Water Conservancy and Landscape Projects
Features Gallery Product Description Request A Quote
Features
Specifications
Width: 4-6m
Swelling Index: ≥24ml/2g
Type: Geosynthetic Clay Liner
Unit Weight: ≥4000g/㎡
Blue Clay: ≥30g/100g
Elongatio At Max Load: ≥10%
Pesistance Hydraulic Pressure: ≤5.0X10ˉ11m/s
Durability Of Bentonite: ≥20mL/2g
Highlight:

Eco-Friendly Geosynthetic Clay Liner

,

Non-Toxic Bentonite Waterproof Blanket

,

Durable GCL
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4000-6000g/㎡
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: T/T,L/C
Supply Ability: 3000T/month
Product Description
Eco-Friendly GCL: Non-Toxic, Durable for Water Conservancy and Landscape Projects

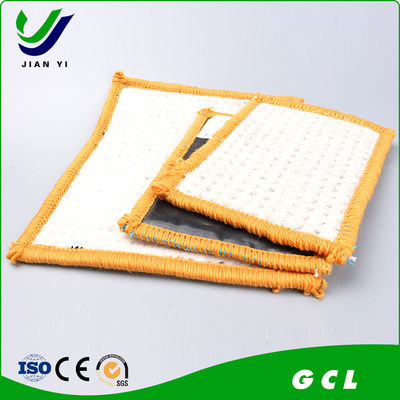

Geosynthetic Clay Liner (GCL) is an environmentally friendly anti-seepage material that utilizes 100% natural sodium bentonite as its core component. This non-toxic, odorless material is completely pollution-free and poses no harm to soil, water quality, or living organisms.
Unlike chemical waterproofing materials, GCL offers exceptional durability that resists aging, corrosion, and degradation from environmental changes, ensuring long-term stable anti-seepage performance.

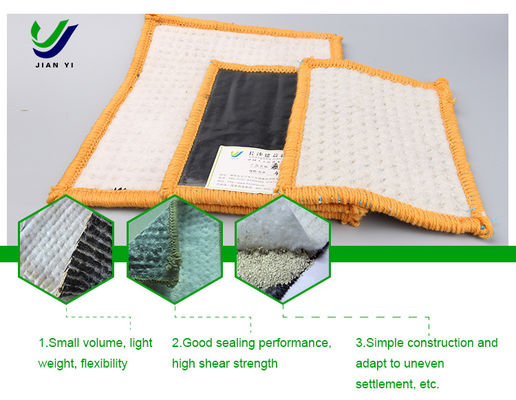

Advanced Manufacturing Process
Our production employs advanced adhesive bonding combined with needle punching composite technology, effectively preventing bentonite leakage during application. The geotextile component consists of high-quality polypropylene non-woven fabric, providing superior tensile strength and puncture resistance.
Sodium bentonite undergoes precise drying, crushing, and sieving processes to ensure uniform particle size distribution and stable expansion characteristics. The entire manufacturing process is pollution-free, complies with global environmental standards, and is certified under ISO 14001 environmental management systems.
Technical Specifications
Compliant with ASTM D6363-17, JG/T 193-2006, EN ISO 13760:2019 standards
Parameter Specification
Bentonite Type Natural sodium bentonite (pH value 8-9)
Unit Weight 4500-5500 g/m²
Tear Strength (Longitudinal/Transverse) ≥ 3.0 kN/m
Hydrostatic Pressure Resistance 0.4 MPa, no leakage for 1 hour
Bentonite Water Absorption ≥ 5 times its own weight
Thickness (After Hydration) 5-10 mm
Service Life ≥ 50 years (in dark, dry environments)

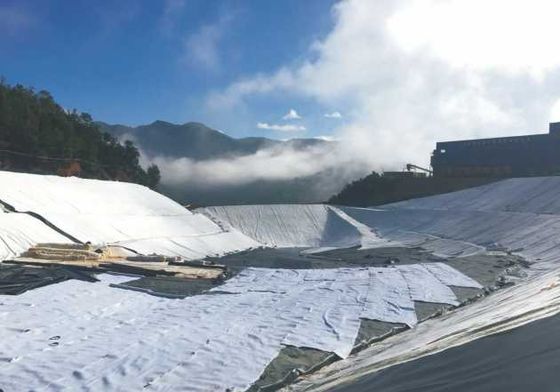

Application Areas
  • Artificial lakes and landscape pools
  • Roof gardens and green infrastructure
  • Irrigation canals and water channels
  • River channel reinforcement projects
  • Farmland water conservancy anti-seepage systems
GCL helps conserve water resources and improves water utilization efficiency across various environmental and agricultural applications, making it an ideal solution for projects requiring both environmental protection and long-term durability.
Tag:

Anti Seepage Geosynthetic Clay Liner

Bentonite Gcl Geosynthetic Clay Liner

Sodium Bentonite GCL Liner
