Anti-Clogging Composite Drainage Geonet with UV Resistance and Tensile Strength ≥16kN/m for Water Conservancy Projects

90㎡
MOQ
0.96USD~3.44USD per sqm
Price
Anti-Clogging Composite Drainage Geonet with UV Resistance and Tensile Strength ≥16kN/m for Water Conservancy Projects
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Chemical Resistance: Excellent
Width: 2m-6m
Uv Resistance: Excellent
Length: 50m-100m
Tensile Strength: ≥16kN/m
Weight: ≥200g/m2
Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall
Highlight:

Anti-Clogging Drainage Geonet

,

UV Resistance Composite Drainage Geonet

,

Tensile Strength ≥16kN/m 3D Composite Drainage Net
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4mm-8mm
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: L/C,D/P
Supply Ability: 600T/Month
Product Description

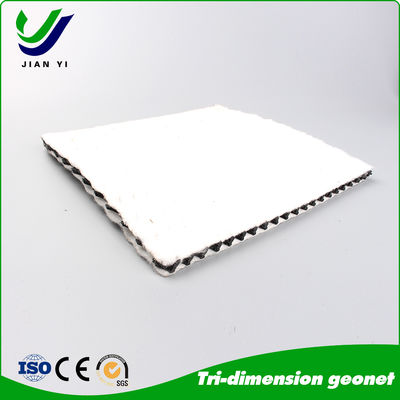

Anti-Clogging Composite Drainage Geonet
Specially engineered to prevent drainage channel clogging in water conservancy and agricultural projects. This advanced drainage solution features a unique three-dimensional geonet core structure combined with high-performance filtration layers to effectively intercept soil particles and prevent blockages from soil, sand, and other impurities.
Key Advantages: Excellent anti-clogging performance, stable drainage efficiency, and extended service life
Advanced Manufacturing Process

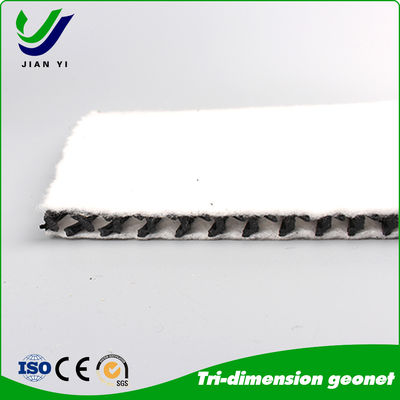

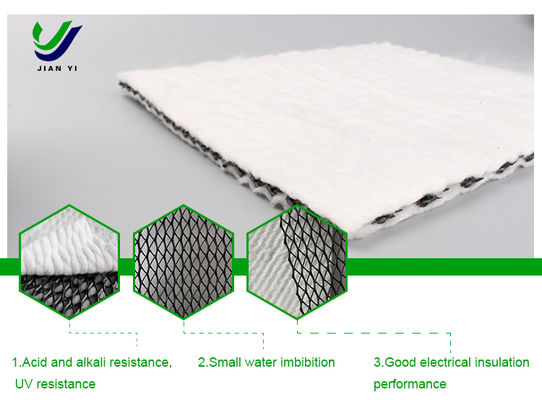

The geonet core utilizes a specialized staggered rib structure that increases drainage channel area while reducing clogging potential. The upper and lower non-woven geotextile layers employ gradient filtration technology - coarse upper filtration combined with fine lower filtration - effectively intercepting soil particles of varying sizes. Anti-clogging additives enhance filtration efficiency, and high-temperature hot-melt bonding ensures secure integration between filtration layers and geonet core for optimal drainage performance.
Technical Specifications
Compliant with ASTM D6391-17, EN ISO 10318:2010, and GB/T 17642-2011 standards
Parameter Specification
Filtration Structure Gradient filtration (coarse upper layer + fine lower layer)
Anti-Clogging Performance No clogging after 1000 hours continuous filtration (simulated soil particle test)
Drainage Capacity ≥ 0.25 m³/(m*h) (under 200 kPa pressure, after long-term use)
Thickness Range 6-18 mm
Unit Weight 350-700 g/m²
Tensile Strength (Longitudinal/Transverse) ≥ 25 kN/m
Permeability Coefficient ≥ 8*10⁻⁴ m/s
Application Scenarios
  • Water Conservancy & Agricultural Projects: Irrigation canal drainage, farmland drainage, small river channel drainage
  • Wetland Protection Projects: Wetland water level regulation, wetland drainage systems
  • Ecological Slope Protection: Ecological river channel slope protection, urban green belt drainage
This drainage geonet effectively prevents channel blockages, ensures consistent drainage performance, and supports environmental protection initiatives.
Tag:

Roadbed Drainage Geonet

6.3mm Drainage Geonet

Geosynthetic Composite Drainage Network
