Low-Temperature Resistant Composite Drainage Geonet with High Tensile Strength and Excellent UV Resistance for Cold Region Infrastructure

90㎡
MOQ
0.96USD~3.44USD per sqm
Price
Low-Temperature Resistant Composite Drainage Geonet with High Tensile Strength and Excellent UV Resistance for Cold Region Infrastructure
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Chemical Resistance: Excellent
Width: 2m-6m
Uv Resistance: Excellent
Length: 50m-100m
Tensile Strength: ≥16kN/m
Weight: ≥200g/m2
Application: Landfill, Roadbed, Railway, Tunnel, Retaining Wall
Highlight:

low-temperature resistant drainage geonet

,

high tensile strength drainage geonet

,

UV resistant geonet for cold regions
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4mm-8mm
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: L/C,D/P
Supply Ability: 600T/Month
Product Description

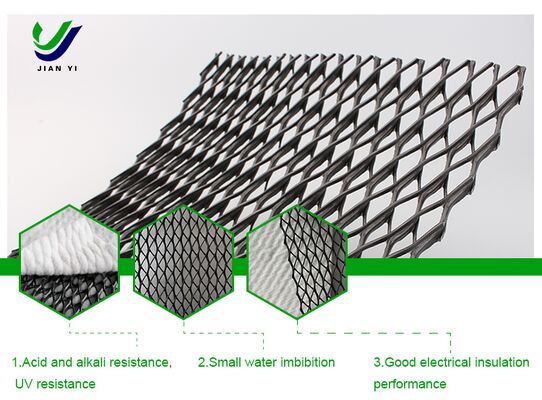

Low-Temperature Resistant Composite Drainage Geonet
Specially engineered for cold region infrastructure projects, this composite drainage geonet combines low-temperature resistant HDPE material with modified non-woven geotextile using advanced composite technology. The product maintains excellent flexibility and strength in extreme low-temperature environments down to -70°C, preventing brittle fracture and ensuring reliable drainage performance in cold climate applications.
Advanced Manufacturing Process
The geonet core utilizes low-temperature resistant HDPE material with specialized additives to maintain flexibility at -70°C. Upper and lower non-woven geotextile layers employ modified polypropylene fiber processed through specialized needle punching technology to enhance low-temperature resistance and tensile strength. The composite process uses low-temperature hot-melt bonding technology to prevent brittle fracture of composite layers in freezing conditions. Finished products undergo rigorous low-temperature performance testing, including repeated bending at -40°C without brittle fracture.
Technical Specifications
Compliant with ASTM D6391-17, EN ISO 10318:2010, and GB/T 17642-2011 standards
Parameter Specification
Low-Temperature Resistance Operating range: -70°C to 120°C (no brittle fracture at -40°C)
Material Composition Low-temperature resistant HDPE geonet core + modified polypropylene non-woven geotextile
Thickness Range 7-22 mm
Unit Weight 400-850 g/m²
Tensile Strength Longitudinal: ≥ 28 kN/m, Transverse: ≥ 28 kN/m
Drainage Capacity ≥ 0.35 m³/(m·h) under 200 kPa pressure at -20°C
Freeze-Thaw Resistance ≥ 200 cycles without damage, maintaining stable performance
Application Scenarios
Cold Region Infrastructure Projects
  • Highway and railway subgrade drainage in northern regions
  • Tunnel drainage systems in cold climates
  • Reservoir drainage in alpine regions
Urban Infrastructure in Cold Regions
  • Urban drainage pipeline systems
  • Basement drainage solutions
  • Green space drainage applications
This specialized drainage geonet effectively resists low-temperature impacts, ensuring stable drainage performance and maintaining project safety and stability in cold region applications.
Tag:

Roadbed Drainage Geonet

6.3mm Drainage Geonet

Geosynthetic Composite Drainage Network
