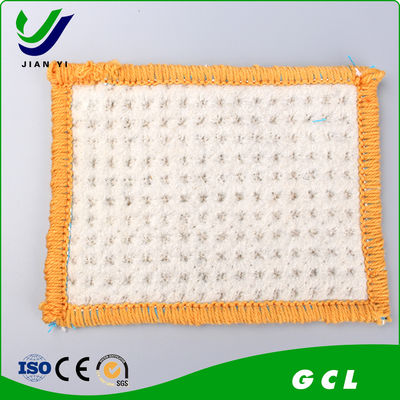

Self-Sealing Sodium Bentonite Waterproof Blanket with 4-6m Width and ≥24ml/2g Swelling Index for Reliable Waterproofing

180㎡
MOQ
0.83USD~2.75USD per sqm
Price
Self-Sealing Sodium Bentonite Waterproof Blanket with 4-6m Width and ≥24ml/2g Swelling Index for Reliable Waterproofing
Features Gallery Product Description Request A Quote
Features
Specifications
Width: 4-6m
Swelling Index: ≥24ml/2g
Type: Geosynthetic Clay Liner
Unit Weight: ≥4000g/㎡
Blue Clay: ≥30g/100g
Elongatio At Max Load: ≥10%
Pesistance Hydraulic Pressure: ≤5.0X10ˉ11m/s
Durability Of Bentonite: ≥20mL/2g
Highlight:

Self-Sealing Sodium Bentonite Waterproof Blanket

,

4-6m Width Geosynthetic Clay Liner

,

≥24ml/2g Swelling Index Bentonite GCL
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4000-6000g/㎡
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: T/T,L/C
Supply Ability: 3000T/month
Product Description
Self-Sealing Sodium Bentonite Waterproof Blanket
This advanced geosynthetic clay liner (GCL) utilizes high-purity sodium bentonite as the core waterproofing material, delivering exceptional self-sealing and anti-seepage performance for complex engineering applications where water leakage presents significant challenges.

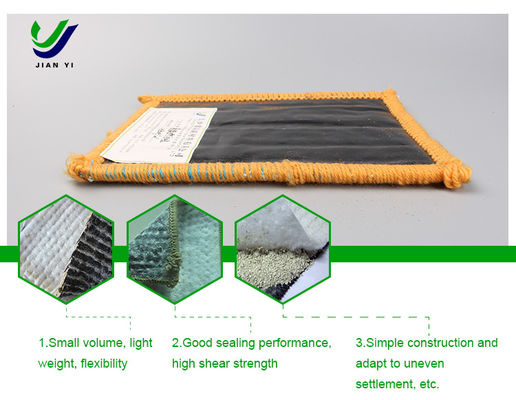

Advanced Composite Structure
The scientifically engineered three-layer construction ensures optimal performance:
  • Upper and Lower Non-Woven Geotextiles: Provide protection and water permeability, allowing rapid water contact with the bentonite layer
  • Middle Bentonite Layer: Evenly distributed, high-density sodium bentonite that swells rapidly upon water contact to form a dense impermeable barrier
Superior Performance Characteristics
  • Excellent puncture resistance for protection against sharp objects
  • Superior aging and chemical corrosion resistance
  • Maintains stable performance in harsh environmental conditions
  • Exceptional flexibility and foundation settlement adaptability
  • Accommodates slight foundation deformation without cracking or leakage
  • Lightweight design for easy transport and installation

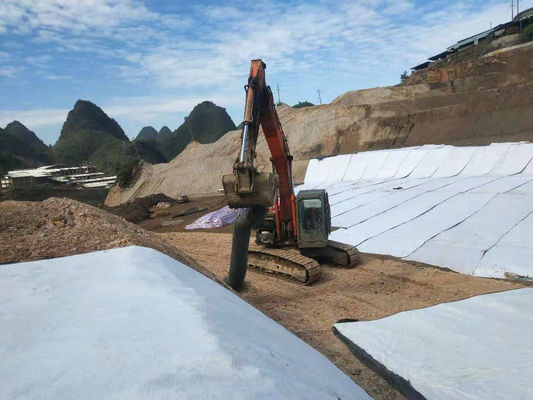

Application Areas
Ideal for demanding waterproofing applications including:
  • Landfill bottom liners and containment systems
  • Roof garden and green roof waterproofing
  • Tunnel and underground structure waterproofing
  • Riverway renovation and water channel projects
  • Basement and below-grade waterproofing systems
Installation Specifications
Overlapping installation requires 15-20cm overlap between adjacent blankets. Secure using mechanical fixing or adhesive methods. For enhanced joint impermeability, apply bentonite paste to seal connections. This efficient installation process reduces labor intensity and improves construction efficiency while ensuring long-term waterproof performance.
Tag:

Anti Seepage Geosynthetic Clay Liner

Bentonite Gcl Geosynthetic Clay Liner

Sodium Bentonite GCL Liner
