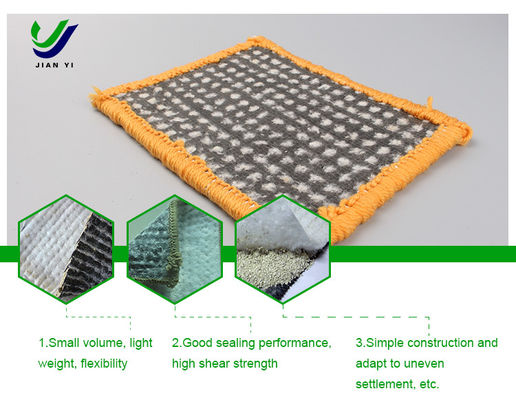

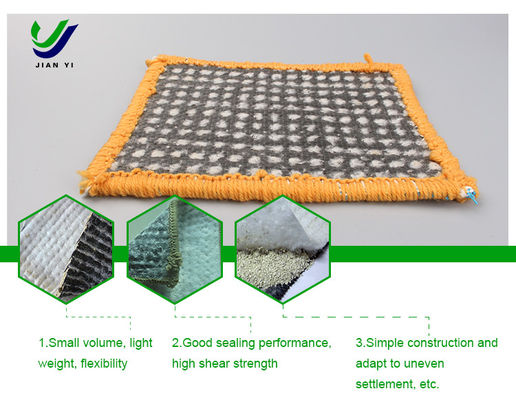

High-Efficiency Bentonite GCL for Quick Construction in Emergency Anti-Seepage Projects

180㎡
MOQ
0.83USD~2.75USD per sqm
Price
High-Efficiency Bentonite GCL for Quick Construction in Emergency Anti-Seepage Projects
Features Gallery Product Description Request A Quote
Features
Specifications
Width: 4-6m
Swelling Index: ≥24ml/2g
Type: Geosynthetic Clay Liner
Unit Weight: ≥4000g/㎡
Blue Clay: ≥30g/100g
Elongatio At Max Load: ≥10%
Pesistance Hydraulic Pressure: ≤5.0X10ˉ11m/s
Durability Of Bentonite: ≥20mL/2g
Highlight:

Bentonite GCL for emergency anti-seepage

,

High-efficiency bentonite clay liner

,

Quick construction geosynthetic clay liner
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001 CE
Model Number: 4000-6000g/㎡
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: T/T,L/C
Supply Ability: 3000T/month
Product Description
High-Efficiency GCL: Quick Construction for Emergency Anti-Seepage Projects
Geosynthetic Clay Liner (GCL) offers significant advantages including simple construction, rapid installation, and minimal equipment requirements. These benefits substantially reduce construction timelines and costs while providing reliable waterproofing solutions for emergency applications.
Construction Advantages
GCL requires no heating, adhesive application, or mixing during installation. It can be directly laid on prepared base surfaces, achieving effective waterproofing through simple compaction and hydration processes. This makes it particularly suitable for emergency anti-seepage projects where time is critical.
Manufacturing Process
Our integrated production line enables automated operations including raw material feeding, spreading, needle punching, cutting, and rolling. With a daily production capacity of up to 10,000 m², each roll is packaged with waterproof, moisture-resistant film to prevent bentonite deterioration during transportation and storage. Every GCL roll undergoes comprehensive quality control testing before shipment.
Technical Specifications
Compliant with ASTM D6363-17, EN ISO 13760:2019, and GB/T 17642-2011 standards:
Parameter Specification
Construction Efficiency 1000-1500 m² per worker per day
Hydration Time ≤ 30 minutes (begins expansion upon water contact)
Initial Strength ≥ 2.0 MPa (24 hours after hydration)
Unit Weight 4000-5000 g/m²
Longitudinal Tensile Strength ≥ 5.5 kN/m
Transverse Tensile Strength ≥ 5.5 kN/m
Waterproof Thickness ≥ 3 mm (after full expansion)
Roll Weight ≤ 200 kg (easy handling and installation)
Application Scenarios
Ideal for emergency anti-seepage requirements including:
  • Flood control and disaster relief operations
  • Emergency leakage repair for reservoirs and dams
  • Temporary anti-seepage at construction sites
  • Temporary storage pools and construction drainage ditches
GCL provides rapid deployment capabilities to establish effective anti-seepage barriers, significantly reducing water leakage losses in time-sensitive situations.
Tag:

Anti Seepage Geosynthetic Clay Liner

Bentonite Gcl Geosynthetic Clay Liner

Sodium Bentonite GCL Liner
