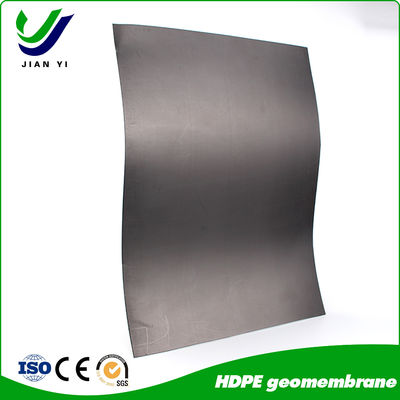

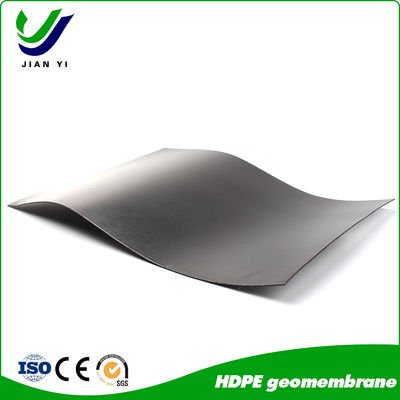

1.5 mm HDPE Geomembrane for Landfill Anti Seepage Applications with High Density Polyethylene

325㎡
MOQ
0.41USD~5.5USD per sqm
Price
1.5 mm HDPE Geomembrane for Landfill Anti Seepage Applications with High Density Polyethylene
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black, Green, Custom
Material: High Density Polyethylene (HDPE)
Thickness: 0.3mm-3.0mm
Length: 30m-100m
Width: 1m-9m
Application: Landfill, Mining, Pond Liner, Etc.
Temperature Resistance: -60℃ To +60℃
Elongation At Break: ≥600%
Highlight:

Anti Seepage HDPE Geomembrane

,

High Density Polyethylene Geomembrane

,

Landfill HDPE Geomembrane 1.5 mm
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001
Model Number: 1m-9m Width and 30m-100m Roll Length
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: T/T,L/C
Supply Ability: 1300T/Month
Product Description
Landfill HDPE Geomembrane 1.5 mm For Anti Seepage Applications
Versatile and long-lasting HDPE geomembrane engineered for superior anti-seepage performance in demanding environmental applications.
Product Introduction
HDPE geomembrane (High-density polyethylene geomembrane) is a premium waterproof and barrier material manufactured from high-density polyethylene resin with a density of 0.94 g/cm³ or higher.
Key Product Properties
  • Excellent resistance to environmental stress cracking
  • Superior low temperature performance
  • Advanced anti-aging capabilities
  • Exceptional corrosion resistance
  • Wide service temperature range (-60°C to +60°C)
  • Extended service life of 50 years
Primary Applications
Widely utilized in anti-seepage systems for domestic waste landfills, solid waste landfills, sewage treatment facilities, artificial lakes, tailings treatment, and various other containment applications.
Technical Specifications (GH-2S & GB/T 17643-2025 Standard)
Specification 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Thickness (mm) 0.75 1.00 1.25 1.50 2.00 2.50 3.00
Density (g/cm³,≥) 0.940
Yield Strength (N/mm, LD/TD) 11 15 18 22 29 37 44
Breaking Strength (N/mm, LD/TD) 20 27 33 40 53 67 80
Yield Elongation Rate (%) 10-16
Breaking Elongation Rate (%) ≥700
Rectangular Tear Strength (N) 93 125 160 190 250 315 375
Puncture Strength (N) 240 320 400 480 640 800 960
Environmental Stress Crack Resistance (h) ≥500
Carbon Black Content Range (%) 2.0~2.8
Standard OIT (min) ≥100
High Pressure OIT (min) ≥400
Additional Technical Specifications (GH-1 & GB/T 17643-2025 Standard)
Item 0.30mm 0.50mm 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Thickness (mm) 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00
Density (g/cm³,≥) ≥0.94
Tensile Yield Strength (N/mm, ≥, LD/TD) 4 7 10 13 16 20 26 33 40
Tensile Breaking Strength (N/mm, ≥, LD/TD) 6 10 15 20 25 30 40 50 60
Breaking Elongation Rate (%,≥, LD/TD) ≥600
Rectangular Tear Load (N,≥, LD/TD) 34 56 84 115 140 170 225 280 340
Puncture Strength (N,≥) 72 120 180 240 300 360 480 600 720
Tag:

Anti Seepage HDPE Geomembrane Sheets

UV Resistant HDPE Geomembrane

Waterproof HDPE Smooth Geomembrane
