Features

Specifications

Material: High Density Polyethylene (HDPE)

Color: Black, Green, Custom

Temperature Range: -70°C To 80°C

Thickness: 0.3mm-3.0mm

Elongation At Break: 700%

Density: 0.939g/cm3

Uv Resistance: Excellent

Width: 1m-9m

Chemical Resistance: Excellent

Length: 30m-100m

Puncture Strength: 240-960N

Application: Landfill,dam

Type: Geomembranes

Highlight:

Permeable HDPE Smooth Geomembrane

Filtration HDPE Geomembrane

Isolation HDPE Smooth Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

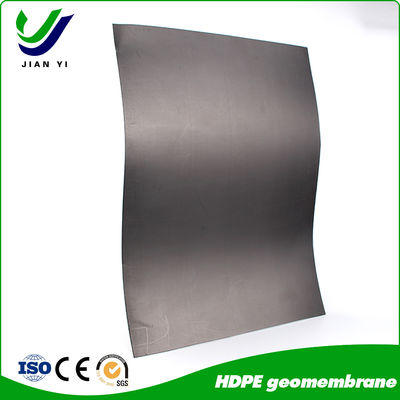

Permeable Material HDPE Smooth Geomembrane with Excellent UV Resistance and 700% Elongation At Break for Landfill and Dam Applications

Product Description

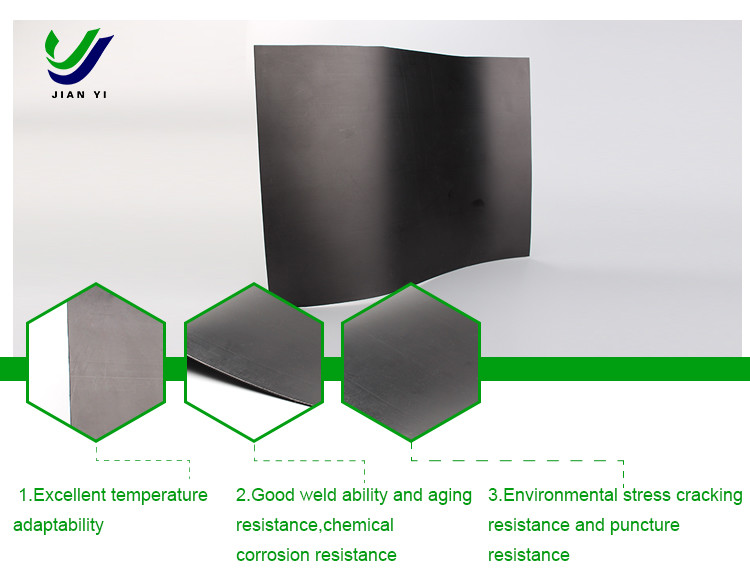

Permeable Material HDPE Smooth Geomembrane for Isolation

High-density polyethylene resin waterproof barrier material with excellent environmental stress cracking resistance, low temperature resistance, aging resistance, and corrosion resistance.

Key Properties

Chemical-free, non-heat-treated environmentally friendly building material
Excellent mechanical properties with good water permeability, corrosion and aging resistance
Strong buried resistance with corrosion resistance and optimal drainage performance
High friction coefficient and tensile strength with georeinforcement capabilities
Multi-functional: isolation, filtration, drainage, protection, stabilization, and strengthening
Adapts to uneven bases, resists construction damage, and minimizes creep
Lightweight construction with good overall continuity
Permeable material with excellent filtration isolation and puncture resistance

Applications

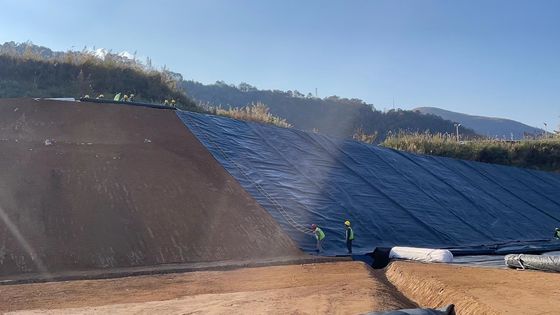

Landfills, sewage waste liquid treatment, water conservancy, agriculture, transportation, high-speed rail, tunnels, airports, buildings, landscape, and other anti-leakage liner projects.

Standard Specifications

Thickness: 0.30mm~3.00mm
Width: 1m~9m
Roll Length: 30m~100m (customized requests accepted)

Customized requests accepted for all specifications.

Geomembrane Series: Smooth HDPE Geomembrane for Landfill (GH-2S & GB/T 17643-2011)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (g/c㎡,≥)	0.939
Tensile Properties
Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
Yield Elongation Rate (%)	12
Breaking Elongation Rate (%)	700
Rectangular Tear Strength (N)	93	125	156	187	249	311	374
Puncture Strength (N)	240	320	400	480	640	800	960
Environmental Stress Crack Resistance (h)	300
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Standard OIT (min)	100
High Pressure OIT (min)	400
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/c㎡,≥)	0.94
Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
Yield Elongation Rate (%,≥,LD/TD)	11
Breaking Elongation Rate (%,≥,LD/TD)	600
Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
Carbon Black Content (%)	2.0~3.0
Carbon Black Dispersion	Less than 1 date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
