Features

Specifications

Color: Black, Green, Custom

Chemical Resistance: Excellent

Usage: Liners

Type: Geomembranes

Puncture Resistance: 240-960N

Surface: Smooth

Width: 1m-9m

Length: 30m-200m

Application: Landfill, Mining, Water Containment, Etc.

Thickness: 0.3mm-3.0mm

Tear Resistance: 93-374N

Material: High Density Polyethylene (HDPE)

Highlight:

Weather Resistant HDPE Smooth Geomembrane

Weather Resistant HDPE Geomembrane

Mining HDPE Smooth Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

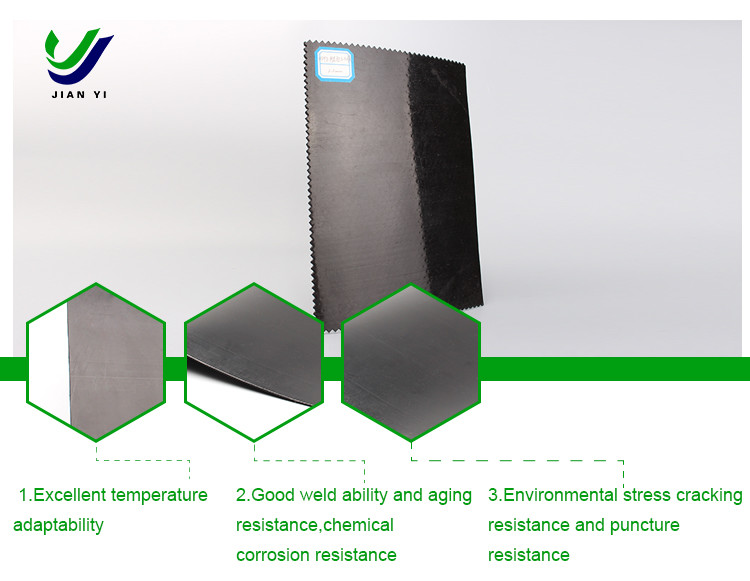

Weather Resistant HDPE Smooth Geomembrane For Mining Landfill

Product Description

Weather Resistant HDPE Smooth Geomembrane For Various Applications

Product Introduction

Smooth geomembrane, also known as smooth geomembrane, is a widely used waterproof barrier geosynthetic material. The material is based on high polymer, with extremely low permeability, excellent chemical resistance and ultraviolet resistance, and has a high cost performance. The smooth geomemofilm uses high quality primary high density polyethylene (HDPE) as the impermeable substrate. Carbon black, antioxidant, anti-aging agent, ultraviolet absorber and color masterbatch are added in the production process. It is prepared by three layer co-extrusion blow molding technology.

Product Properties

The smooth geomembrane has the advantages of high impermeability, high tensile strength, good flexibility, flexibility and so on. It can adapt to the geological uneven settlement, and has excellent chemical corrosion resistance and weather resistance. In addition, the smooth geomembrane also has good heat resistance and cold resistance. It also has resistance to ultraviolet radiation and good anti-aging properties, suitable for long-term use.

Product Application

Smooth geomembrane has been widely used in many fields because of its unique properties. For example, in water conservancy projects, it can be used for anti-seepage treatment of river dikes, lake DAMS, tailings DAMS, etc. In municipal engineering, it can be used for anti-seepage lining of subway and underground engineering of buildings. In addition, it is also suitable for aquaculture, landscape engineering, salt industry, transportation infrastructure, petrochemical industry and mining engineering and other fields.

Product Specification

* Thickness(mm): 0.30mm~3.00mm
* Width:1m~9m
* Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.

Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (g/c㎡,≥)	0.939
Tensile Properties
Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	700
Rectangular Tear Strength (N)	93	125	156	187	249	311	374
Puncture Strength (N)	240	320	400	480	640	800	960
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Specification Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Remark
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/c㎡,≥)	0.94
Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
Yield Elongation Rate (%,≥,LD/TD)	-	-	-	11
Breaking Elongation Rate (%,≥,LD/TD)	600
Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
Carbon Black Content (%)	2.0~3.0
Carbon Black Dispersion	Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
