Features

Specifications

Material: High Density Polyethylene (HDPE)

Color: Black, Green, Custom

Surface: Smooth

Puncture Resistance: 240-960N

Length: 30m-100m

Elongation At Break: 700%

Tear Resistance: 93-374N

Type: Geomembranes

Width: 1m-9m

Thickness: 0.3mm-3.0mm

Chemical Resistance: Excellent

Breaking Strength: 20-80N/mm

Highlight:

Waterproofing HDPE Smooth Geomembrane

Custom HDPE Smooth Geomembrane

Long Lasting Waterproof Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

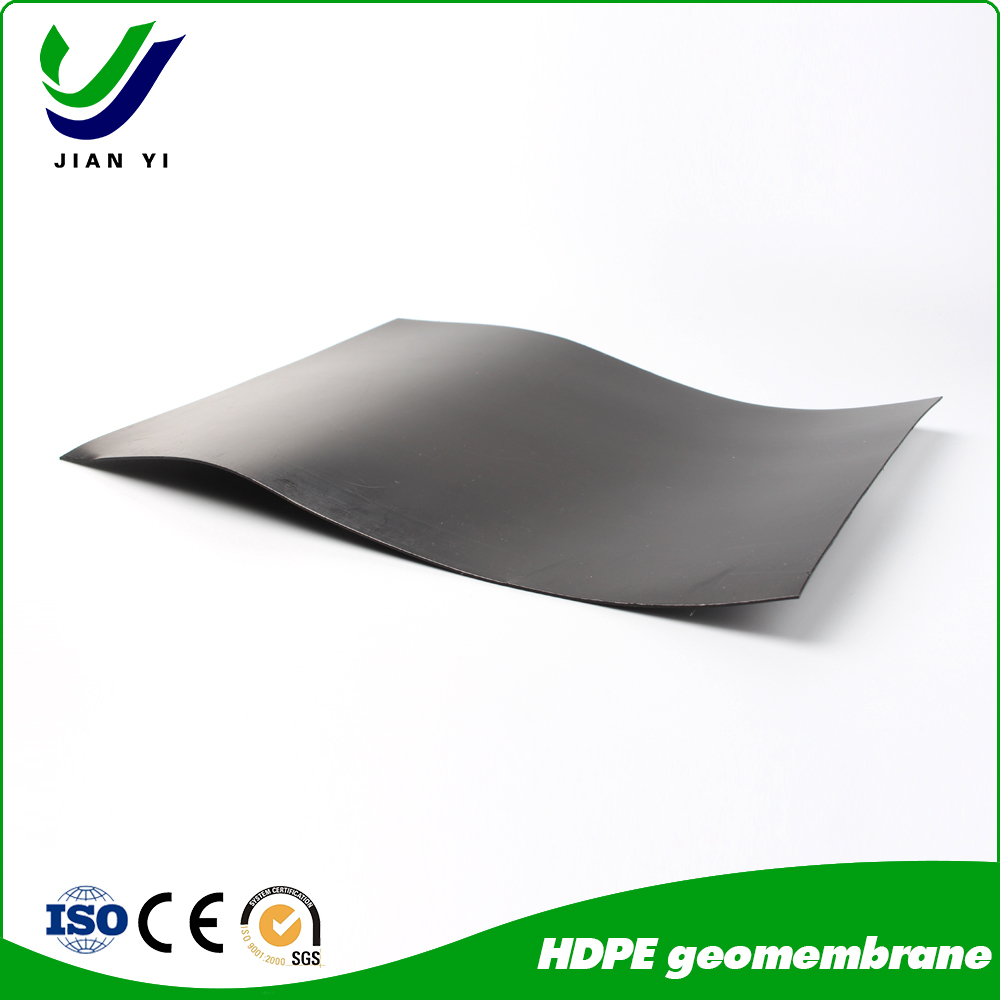

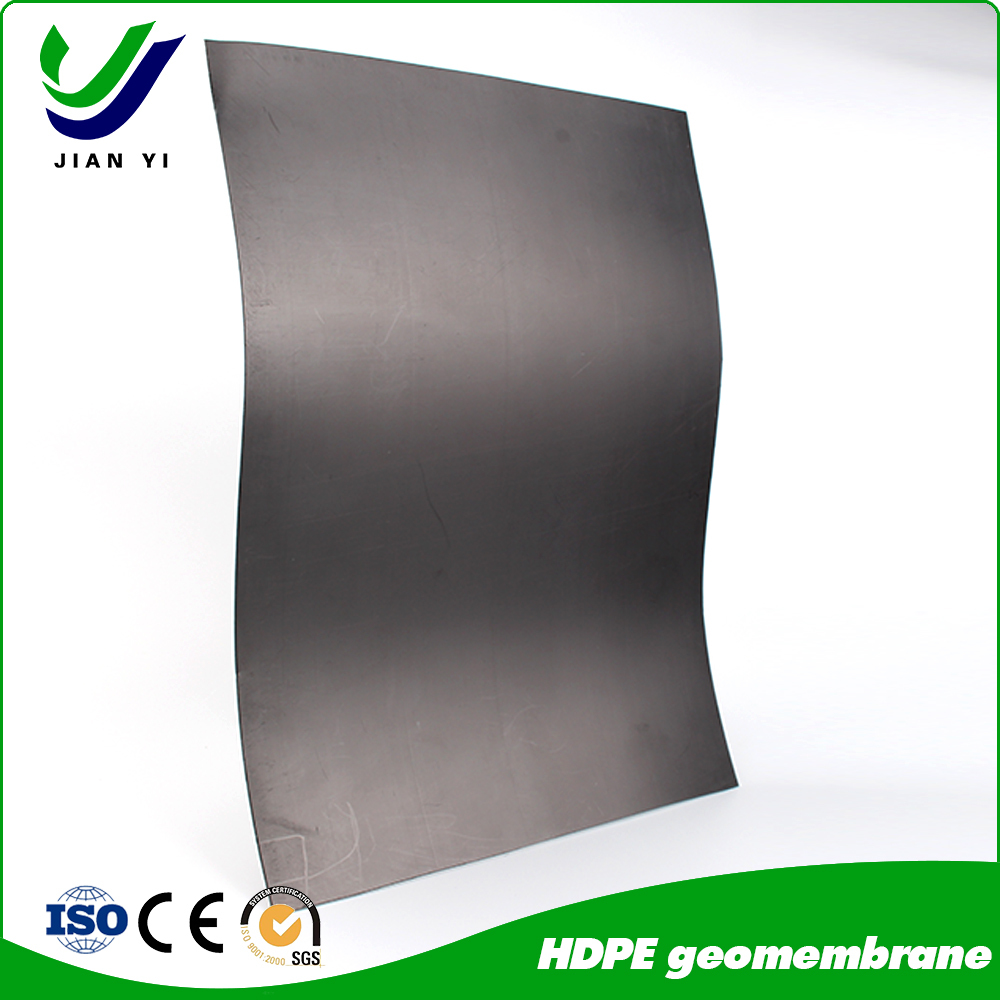

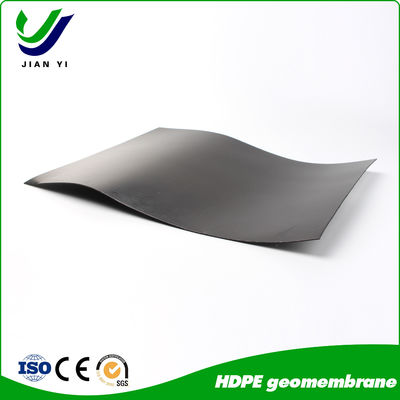

Custom HDPE Smooth Geomembrane For Long Lasting Waterproofing Solutions

Product Description

High-Performance HDPE Smooth Geomembrane For Long-Lasting Waterproofing Solutions

Product Introduction

Smooth surface geomembrane is a kind of waterproof barrier material with high polymer as the basic raw material, mainly high density polyethylene (HDPE) geomembrane.

Product Properties

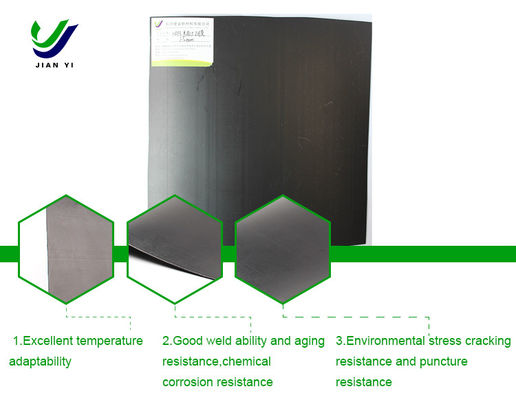

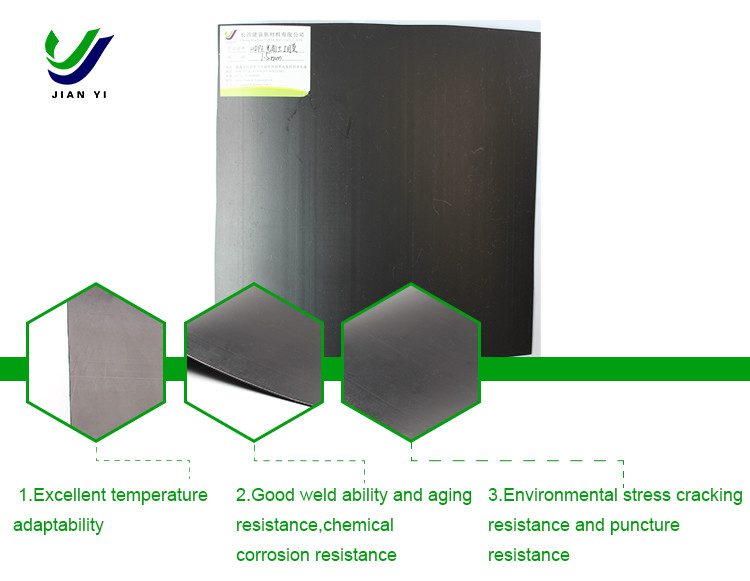

The smooth geomembrane has excellent environmental stress cracking resistance and chemical corrosion resistance, wide temperature range and long service life.

Product Application

It is widely used in the fields of landfill, tailings storage, channel seepage prevention, dam seepage prevention and subway engineering.

Product Specification

* Thickness(mm): 0.30mm~3.00mm
* Width:1m~9m
* Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.

Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (g/c㎡,≥)	0.939
Tensile Properties
Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	700
Rectangular Tear Strength (N)	93	125	156	187	249	311	374
Puncture Strength (N)	240	320	400	480	640	800	960
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Specification Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Remark
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/c㎡,≥)	0.94
Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
Yield Elongation Rate (%,≥,LD/TD)	-	-	-	11
Breaking Elongation Rate (%,≥,LD/TD)	600
Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
Carbon Black Content (%)	2.0~3.0
Carbon Black Dispersion	Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
