High Strength HDPE Geomembrane 0.939g/cm3 For Tailings Ponds And Landfills

High Strength HDPE Geomembrane 0.939g/cm3 For Tailings Ponds And Landfills
Features Gallery Product Description Request A Quote
Features
Specifications
Length: 30m-100m
Width: 1m-9m
Material: HDPE
Usage: Liners
Chemical Resistance: Excellent
Color: Black, Green, Custom
Elongation At Break: 700%
Density: 0.939g/cm3
Application: Landfill, Mining, Pond Liner, Etc.
Thickness: 0.3mm-3.0mm
Puncture Resistance: 240-960N
Type: Geomembranes
Highlight:

0.939g/cm3 HDPE Geomembrane

,

Tailings Ponds HDPE Geomembrane

,

Landfills HDPE Geomembrane
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

Special High-Strength Geomembrane For Tailings Ponds And Landfills


Product Introduction

    Smooth geomembrane is a kind of smooth surface geomembrane, which is mainly made of high polymer materials such as high density polyethylene (HDPE).

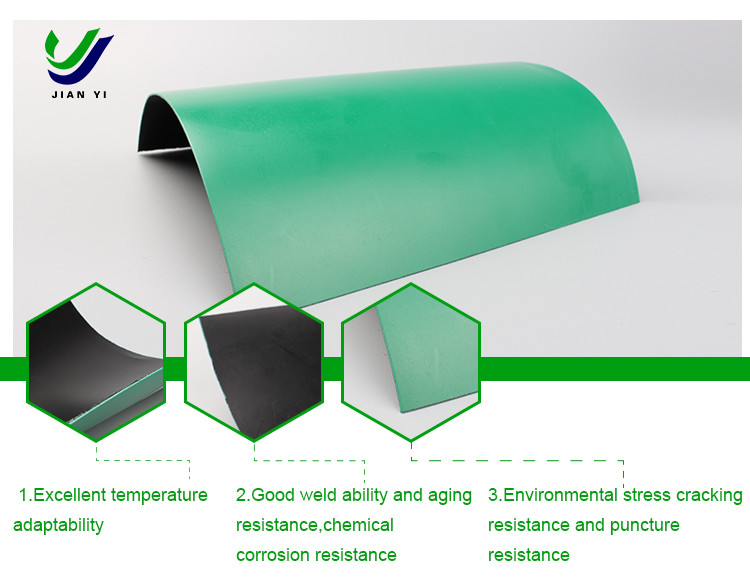

 Product Properties

1. Excellent chemical corrosion resistance: can resist the erosion of a variety of chemical substances, including acid, alkali, salt and so on.
2. Large temperature range: can be used in a wide temperature range, with good heat resistance and cold resistance.
3. Long service life: under proper use and maintenance conditions, the service life of smooth geomembrane can be very long.
4. High tensile strength: with high tensile strength and elongation, it can withstand certain water pressure and adapt to foundation deformation.
5. Good impermeability: The use of plastic film impermeability, effectively cut off the leakage channel, often used in waterproof and impermeability projects.


Product Application

1. The impermeable layer of the landfill.
2. Waterproof layer of tailings storage yard.
3. Water conservancy projects in the channel seepage prevention, dam seepage prevention.
4. Waterproofing measures in subway engineering.
5. Seepage prevention of artificial lakes, reservoirs and other water bodies.


Product Specification

*  Thickness(mm): 0.30mm~3.00mm
*  Width:1m~9m
*  Roll length: 30m~100m  (customized request accept)
PS: Customized request accept for all above.




 (According to the Latest National standard: GH-2S & GB/T 17643-2025)

Specification

0.75mm

1.00mm

1.25mm

1.50mm

2.00mm

2.50mm

3.00mm

Remark

Item

Thickness (mm)

0.75mm

1.00mm

1.25mm

1.50mm

2.00mm

2.50mm

3.00mm



Density (g/c㎡,≥)

0.940



Tensile Properties

Yield Strength (N/mm,LD/TD)

11

15

18

22

29

37

44



Breaking Strength (N/mm,LD/TD)

20

27

33

40

53

67

80



Yeild Elongation Rate (%)

10-16



Breaking Elongation Rate (%)

≥700



Rectangular Tear Strength (N)

93

125

160

190

250

315

375



Puncture Strength (N)

240

320

400

480

640

800

960



Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method)

≥500



Carbon Black

Carbon Black Content(Rang) (%)

2.0~2.8



Carbon Black Dispersion

Nine of 10 observation area should be grade 1 or grade 3, not more grade4,grade5



Oxidative Induction Time (OIT)

Standard OIT (min)

≥100



High Pressure OIT (min)

≥400



85℃ Oven Ageing (Minimum Average)

90 days after baking, the standard OIT retention(%)

≥55



90 days after baking, the hight pressure OIT retention(%)

≥80



The Anti-UV Strength

Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)

≥50



-70℃ The Low Temperature Embrittlement Performance impact

Pass



Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)

≤1.0X10-13



Dimensional Stability

±2.0





Product Specification and Technical Index

(According to the Latest National standard: GH-1 & GB/T 17643-2025)

 Specification
Item

0.30

0.50

0.75

1.00

1.25

1.50

2.00

2.50

3.00

Remark

Thickness (mm)

0.30

0.50

0.75

1.00

1.25

1.50

2.00

2.50

3.00



Density (g/c㎡,≥)

≥0.94

Tensile Yield Strength (N/mm, ≥,LD/TD)

4

7

10

13

16

20

26

33

40



Tensile Breaking Strength (N/mm, ≥,LD/TD)

6

10

15

20

25

30

40

50

60



Yield Elongation Rate (%,≥,LD/TD)

-

-

-

1-16



Breaking Elongation Rate (%,≥,LD/TD)

≥600



Rectangular Tear Load (N,≥,LD/TD)

34

56

84

115

140

170

225

280

340



Puncture Strength (N,≥)

72

120

180

240

300

360

480

600

720



Carbon Black Content (%)

2.0~2.8



Carbon Black Dispersion

Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed



Tag:

Anti Seepage HDPE Geomembrane Sheets

UV Resistant HDPE Geomembrane

Waterproof HDPE Smooth Geomembrane
