Name: Rough Textured HDPE Geomembrane 1.5 Mm Black For Enhanced Impermeability
Brand: Hebei Bending Fence Technology Co., Ltd.
SKU: 6m-8m Width and 50m-100m Roll Length
Price: 3.38 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Carbon Black: 2.0~3.0%

Length: 50m-100m

Color: Black

Density: 0.94g/m3

Application: Landfill, Mining, Water Containment, Etc.

Texture: Rough

Content: HDPE

Width: 6m-8m

90 Days After Baking, The Standard OIT Retention: 55%

90 Days After Baking, The Hight Pressure OIT Retention: 80%

Thickness: 0.5~2.5mm

Highlight:

Textured HDPE Geomembrane 1.5 mm

Black Textured HDPE Geomembrane 1.5 mm

Rough Textured HDPE Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Model Number: 6m-8m Width and 50m-100m Roll Length

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: T/T, L/C

Supply Ability: 1200t/month

Gallery

Rough Textured HDPE Geomembrane 1.5 Mm Black For Enhanced Impermeability

Product Description

HDPE Textured Geomembrane For Enhanced Impermeability And Environmental Protection

Product Introduction

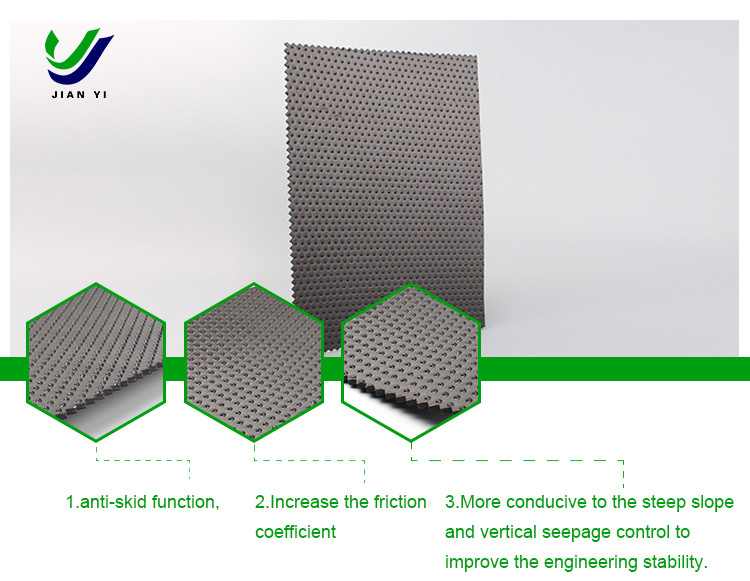

Cylindrical point rough geomembrane is a type of geosynthetic material used in civil engineering whose surface is designed with special column points or textures to increase friction and adhesion with soil or other materials.

Product Properties

1. Enhanced coefficient of friction: The column point design provides a higher coefficient of friction, helping to prevent sliding of geomemes in slope or vertical applications.
2. Good impermeability: It maintains the excellent impermeability of HDPE geomembrane and effectively prevents the penetration of water and pollutants.
3. Chemical corrosion resistance: can resist the erosion of a variety of chemical substances, suitable for use in a variety of environmental conditions.
4. Resistance to environmental stress cracking: Excellent resistance to environmental stress cracking, able to maintain stability in harsh environments.
5. Temperature adaptability: It has good heat resistance and cold resistance and can be used in a wide temperature range.

Product Application

1. Slope engineering: Especially suitable for slope seepage prevention projects that need to enhance stability.
2. Landfill: used for slope anti-slip and anti-seepage of landfill to improve the safety and environmental protection of the project.
3. Tailings pond: used in the seepage prevention and stabilization project of tailings pond to prevent the leakage of harmful substances.
4. DAMS and reservoirs: Used for seepage prevention and reinforcement of DAMS and reservoirs to improve the durability of the structure.

Products series

Single textured geomembrane, double-wall textured geomembrane.

Product Specification

* Thickness(mm): 0.30mm~3.00mm

* Width: 4m~8m

* Roll length: 50m~100m (customized request accept)

PS: Customized request accept for all above.

Geomembrane Series

Textured HDPE Geomembrane For Landfill (GB/T 17643-2011(GH-2T1,GH-2T2))

Serial Number	Project	Index
Serial Number	Thickness(mm)	0.75	1.00	1.25	1.50	2.00	2.50	3.00
1	Density (g/c㎡,≥)	≥0.940
2	Textured Highth (mm)	≥0.25
3	Yield Strength (N/mm,LD/TD)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
4	Breaking Strength (N/mm,LD/TD)	≥8	≥10	≥13	≥16	≥21	≥26	≥32
5	Yeild Elongation Rate (%)	≥12
6	Breaking Elongation Rate (%)	≥100
7	Rectangular Tear Strength (N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
8	Puncture Strength (N)	≥200	≥270	≥335	≥400	≥535	≥670	≥800
9	Tensile Load Stress Cracking (Notch Constant Load Tensle Method) h	≥300
10	Carbon Black Content(Rang) (%)	2.0~3.0
11	Carbon Black Dispersion	There is not more than one grade 3 in 10 data, and grade 4 and grade 5 are not allowed
12	Oxidative Induction Time (OIT)	Standard OIT (min)≥100
12	Oxidative Induction Time (OIT)	High Pressure OIT (min)≥400
13	85℃ thermal aging (Atmospheric Pressure OIT Retention After 90 Day)	≥55
14	Ultraviolet Irradiation After 1600 Hours, The OIT Retention(%)	≥50

(CJ-T234-2006)

Specification	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Textured Highth (mm)	0.25
Density (g/c㎡,≥)	0.94
Tensile Properties
Yield Strength (N/mm,LD/TD)	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	10	13	16	21	26	32
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	100
Rectangular Tear Strength (N)	125	156	187	249	311	374
Puncture Strength (N)	267	333	400	534	667	800
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2
