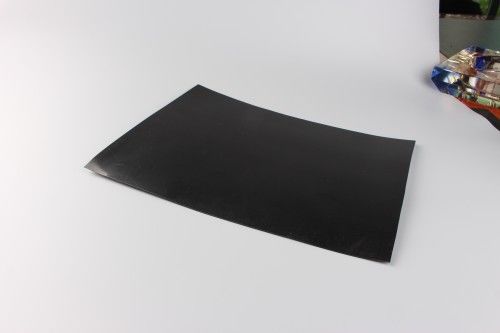

Smooth Surface HDPE Geomembrane with Excellent Chemical Resistance and 30m-100m Length for Landfill and Mining Applications

Smooth Surface HDPE Geomembrane with Excellent Chemical Resistance and 30m-100m Length for Landfill and Mining Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Landfill, Mining, Pond Liner, Etc.
Material: High Density Polyethylene (HDPE)
Chemical Resistance: Excellent
Surface: Smooth
Thickness: 0.3mm-3.0mm
Installation Method: Hot Wedge Welding
Width: 1m-9m
Color: Black, Green, Custom
Highlight:

Chemical Resistance HDPE Geomembrane

,

Smooth Surface HDPE Geomembrane

,

100m HDPE Geomembrane
Basic Infomation
Place of Origin: China
Brand Name: HDPE Smooth Geomembrane
Model Number: 100g-800g/㎡
Payment & Shipping Terms
Delivery Time: 7-15Days
Payment Terms: T/T,L/C
Supply Ability: 1300T/Month
Product Description
Smooth Surface HDPE Geomembrane with Excellent Chemical Resistance
Available in 30m-100m lengths for geomembranes market applications
Product Overview
The HDPE Smooth Geomembrane is a robust and durable material engineered to provide superior protection against water leakage, chemicals, and harmful substances. Its smooth surface facilitates easy installation and maintenance while offering exceptional resistance to punctures and tears. This geomembrane is specifically designed for harsh environments where conventional materials may fail.
Key Features
  • Smooth Surface for Easy Installation
  • Excellent Waterproof Performance
  • Superior Chemical Resistance
  • High UV Resistance
  • Exceptional Mechanical Strength
  • Easy Construction and Installation
  • Environmentally Friendly
  • High Adaptability to Various Conditions
Applications
  • Pond Applications: Ideal for decorative ponds, fish ponds, and water gardens due to its durability, UV resistance, chemical resistance, and puncture resistance. Features easy installation and low maintenance requirements.
  • Mining Industry: Perfect solution for containing hazardous chemicals and waste materials. Provides a strong barrier against leakage to prevent environmental damage.
  • Landfill Applications: Essential for preventing soil and groundwater contamination. Offers cost-effective, long-term environmental protection.
The HDPE Smooth Geomembrane is a versatile product with numerous industrial applications, valued for its reliability, durability, and minimal maintenance requirements.
According to the Latest National standard: GH-2S & GB/T 17643-2025
Technical Specifications - GH-2S Standard
Specification 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Thickness (mm) 0.75 1.00 1.25 1.50 2.00 2.50 3.00
Density (g/cm³,≥) 0.940
Yield Strength (N/mm,LD/TD) 11 15 18 22 29 37 44
Breaking Strength (N/mm,LD/TD) 20 27 33 40 53 67 80
Yield Elongation Rate (%) 10-16
Breaking Elongation Rate (%) ≥700
Rectangular Tear Strength (N) 93 125 160 190 250 315 375
Puncture Strength (N) 240 320 400 480 640 800 960
Environmental Stress Crack Resistance (h) ≥500
Carbon Black Content (%) 2.0~2.8
Carbon Black Dispersion Nine of 10 observation area should be grade 1 or grade 3, not more grade4,grade5
Standard OIT (min) ≥100
High Pressure OIT (min) ≥400
90 days after baking, standard OIT retention(%) ≥55
90 days after baking, high pressure OIT retention(%) ≥80
UV irradiation after 1600 hours, standard OIT retention(%) ≥50
-70℃ Low Temperature Embrittlement Performance Pass
Water Vapor Penetration Coefficient g.cm (cm².s.Pa) ≤1.0X10⁻¹³
Dimensional Stability ±2.0
According to the Latest National standard: GH-1 & GB/T 17643-2025
Technical Specifications - GH-1 Standard
Item 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00 Remark
Thickness (mm) 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00
Density (g/cm³,≥) ≥0.94
Tensile Yield Strength (N/mm, ≥,LD/TD) 4 7 10 13 16 20 26 33 40
Tensile Breaking Strength (N/mm, ≥,LD/TD) 6 10 15 20 25 30 40 50 60
Yield Elongation Rate (%,≥,LD/TD) -
Breaking Elongation Rate (%,≥,LD/TD) ≥600
Rectangular Tear Load (N,≥,LD/TD) 34 56 84 115 140 170 225 280 340
Puncture Strength (N,≥) 72 120 180 240 300 360 480 600 720
Carbon Black Content (%) 2.0~2.8
Carbon Black Dispersion Less than 1 date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
