Home /Products/HDPE Smooth Geomembrane/High-Performance HDPE Smooth Geomembrane for Aquaculture and Fish Farming

High-Performance HDPE Smooth Geomembrane for Aquaculture and Fish Farming

High-Performance HDPE Smooth Geomembrane for Aquaculture and Fish Farming
Features Gallery Product Description Request A Quote
Features
Specifications
Surface: Smooth
Length: 30m - 100m
Elongation At Break: 700%
Thickness: 0.75mm - 3.0mm
Chemical Resistance: Excellent
Application: Landfill, Mining, Pond Liner, Etc.
Tear Resistance: 93-374N
Puncture Resistance: 240-960N
Color: Black, Green, Custom
Width: 1m - 9m
Density: ≥0.939g/c㎡
Highlight:

Aquaculture HDPE Smooth Geomembrane

,

Fish Farming HDPE Smooth Geomembrane

,

High Performance HDPE Smooth Geomembrane
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

High-Performance HDPE Smooth Geomembrane for Aquaculture and Fish Farming



Product Introduction

Smooth geomembrane, also known as smooth geosynthetic membrane, is a waterproof and barrier-type geosynthetic material made from high molecular polymer as the basic raw material. It is mainly made of high-quality primary high-density polyethylene (HDPE) and is carefully refined by a special three-layer co-extrusion blowing technology with carbon black, antioxidants, anti-aging agents, ultraviolet absorbers, and color masterbatches added as auxiliary materials through a special formula. This material is widely used in various fields due to its extremely low permeability, excellent chemical resistance, and resistance to ultraviolet characteristics..



Product Properties

Excellent water resistance and aging resistance.



Product Application



  • Water Conservancy Projects: Used for reservoirs, river channel management, etc.

  • Green Engineering: Suitable for sewage treatment, tailings seepage prevention, etc.

  • Municipal Engineering: Used for urban infrastructure construction.

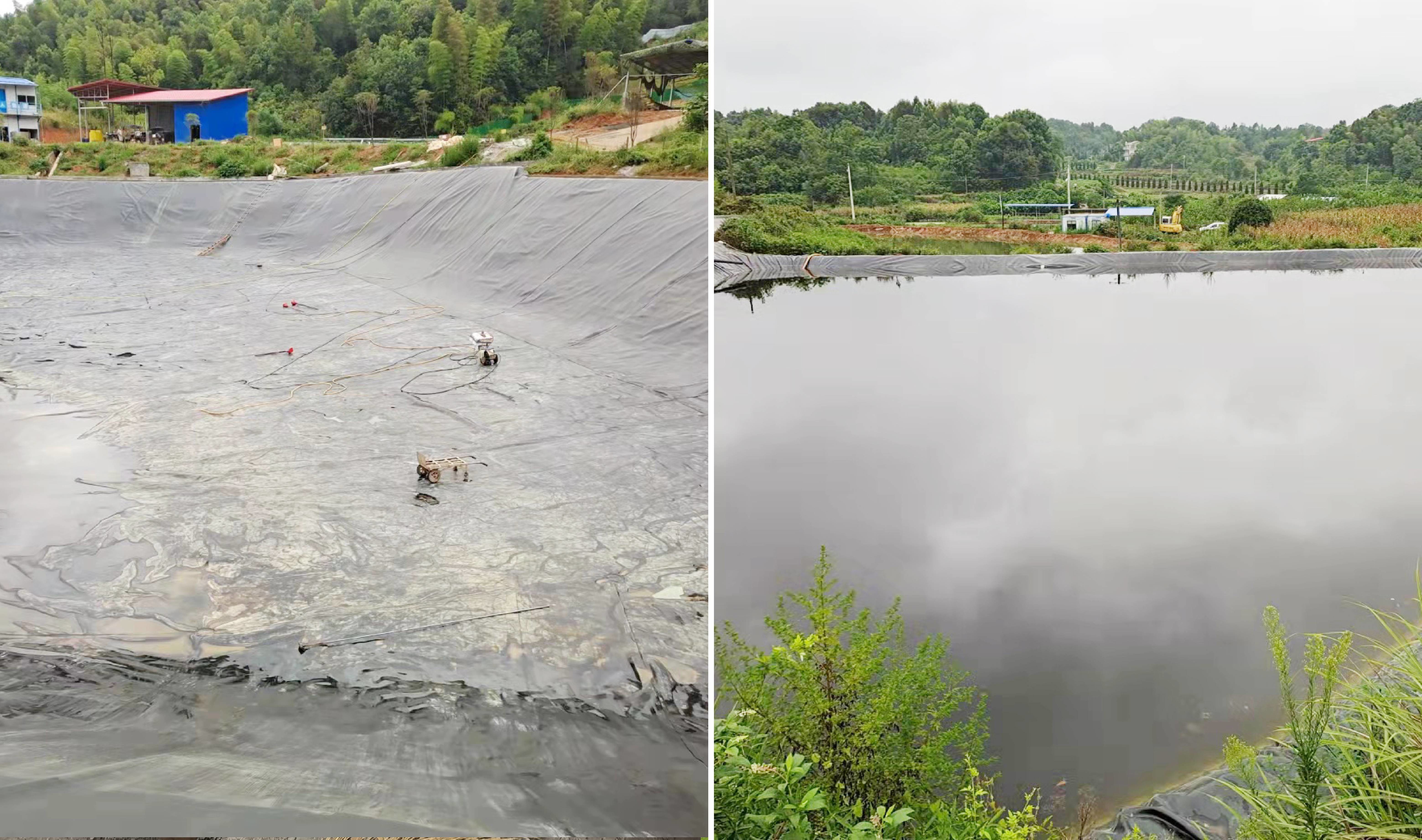

  • Aquaculture: Helps keep water quality clean.

  • Landfill: Prevents leachate from polluting groundwater and soil.

  • Garden Landscape: Used in landscape design to prevent water loss.



Product Specification

*  Thickness(mm): 0.30mm~3.00mm
*  Width:1m~9m
*  Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.



Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Item
Thickness (mm) 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm
Density (g/c㎡,≥) 0.939
Tensile Properties
Yield Strength (N/mm,LD/TD) 11 15 18 22 29 37 44
Breaking Strength (N/mm,LD/TD) 20 27 33 40 53 67 80
Yeild Elongation Rate (%) 12
Breaking Elongation Rate (%) 700
Rectangular Tear Strength (N) 93 125 156 187 249 311 374
Puncture Strength (N) 240 320 400 480 640 800 960
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method)		 300
Carbon Black
Carbon Black Content(Rang) (%) 2.0~3.0
Carbon Black Dispersion Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min) 100
High Pressure OIT (min) 400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%) 55
90 days after baking, the hight pressure OIT retention(%) 80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) 50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) 50
-70℃ The Low Temperature Embrittlement Performance mpact Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) ≤1.0X10-13
Dimensional Stability ±2



Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Specification
Item		 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00 Remark
Thickness (mm) 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00
Density (g/c㎡,≥) 0.94
Tensile Yield Strength (N/mm, ≥,LD/TD) 4 7 10 13 16 20 26 33 40
Tensile Breaking Strength (N/mm, ≥,LD/TD) 6 10 15 20 25 30 40 50 60
Yield Elongation Rate (%,≥,LD/TD) - - - 11
Breaking Elongation Rate (%,≥,LD/TD) 600
Rectangular Tear Load (N,≥,LD/TD) 34 56 84 115 140 170 225 280 340
Puncture Strength (N,≥) 72 120 180 240 300 360 480 600 720
Carbon Black Content (%) 2.0~3.0
Carbon Black Dispersion Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed



Tag:

Anti Seepage HDPE Geomembrane Sheets

UV Resistant HDPE Geomembrane

Waterproof HDPE Smooth Geomembrane
