Features

Specifications

Surface: Smooth

Length: 30m - 100m

Elongation At Break: 700%

Thickness: 0.75mm - 3.0mm

Chemical Resistance: Excellent

Application: Landfill, Mining, Pond Liner, Etc.

Tear Resistance: 93-374N

Puncture Resistance: 240-960N

Color: Black, Green, Custom

Width: 1m - 9m

Density: ≥0.939g/c㎡

Highlight:

Aquaculture HDPE Smooth Geomembrane

Fish Farming HDPE Smooth Geomembrane

High Performance HDPE Smooth Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

High-Performance HDPE Smooth Geomembrane with 700% Elongation At Break, Excellent Chemical Resistance, and Customizable Width for Aquaculture

Product Description

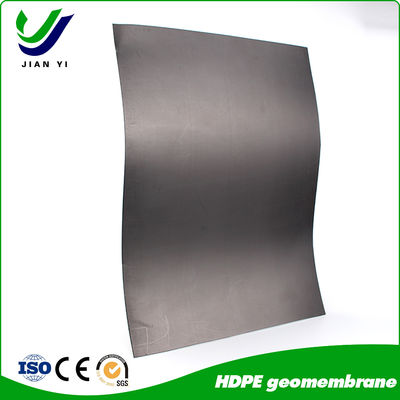

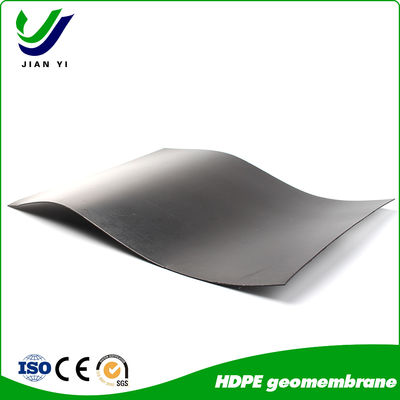

High-Performance HDPE Smooth Geomembrane for Aquaculture and Fish Farming

Smooth geomembrane is a premium waterproof and barrier geosynthetic material manufactured from high-quality primary high-density polyethylene (HDPE). Produced using advanced three-layer co-extrusion blowing technology with specialized additives including carbon black, antioxidants, anti-aging agents, and UV absorbers, this material delivers exceptional performance in demanding applications.

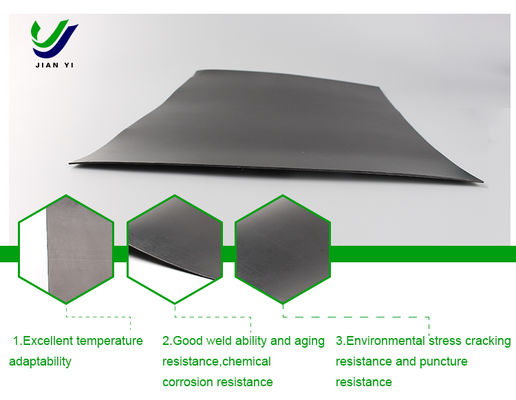

Key Properties

Excellent water resistance and impermeability
Superior aging resistance and durability
Outstanding chemical resistance
Enhanced UV protection
Extremely low permeability

Applications

Water Conservancy Projects: Reservoirs, river channel management
Green Engineering: Wastewater treatment, tailings seepage prevention
Municipal Engineering: Urban infrastructure construction

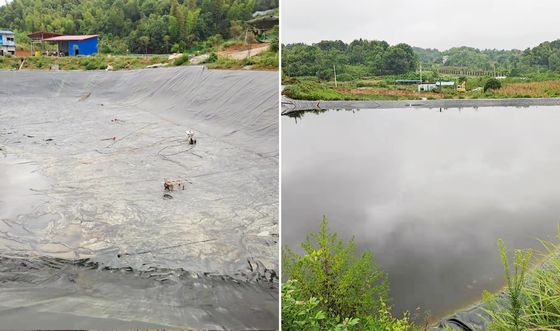

Aquaculture: Maintaining clean water quality in fish farming
Landfill: Preventing leachate contamination of groundwater and soil
Garden Landscape: Water retention in landscape design

Standard Specifications

Thickness: 0.30mm - 3.00mm
Width: 1m - 9m
Roll Length: 30m - 100m (custom lengths available)

Custom specifications available upon request

Technical Specifications (GH-2S & GB/T 17643-2025 Standard)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Thickness (mm)	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/cm³, ≥)	0.940
Yield Strength (N/mm)	11	15	18	22	29	37	44	LD/TD
Breaking Strength (N/mm)	20	27	33	40	53	67	80	LD/TD
Breaking Elongation Rate (%)	≥700
Rectangular Tear Strength (N)	93	125	160	190	250	315	375
Puncture Strength (N)	240	320	400	480	640	800	960

Additional Technical Specifications (GH-1 & GB/T 17643-2025 Standard)

Item	0.30mm	0.50mm	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/cm³, ≥)	≥0.94
Tensile Yield Strength (N/mm, ≥)	4	7	10	13	16	20	26	33	40	LD/TD
Tensile Breaking Strength (N/mm, ≥)	6	10	15	20	25	30	40	50	60	LD/TD
Breaking Elongation Rate (%, ≥)	≥600									LD/TD
Rectangular Tear Load (N, ≥)	34	56	84	115	140	170	225	280	340	LD/TD
Puncture Strength (N, ≥)	72	120	180	240	300	360	480	600	720

All products manufactured according to latest national standards GH-1, GH-2S & GB/T 17643-2025
