Column Point Geomembrane Rectangular Tear Strength 125-249N For Long-Lasting Performance

350㎡

MOQ

1.26-2.48USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Thickness: 1.0-3.0mm

Length: 50m~100m

Width: 7m

Rough Height: 0.25mm

Minimum Density: 0.939g/m2

Highlight:

Long-Lasting Column Point Geomembrane

Rectangular Column Point Geomembrane

Tear Strength 125-249N Geomembrane

Basic Infomation

Place of Origin: China

Brand Name: JIANYI

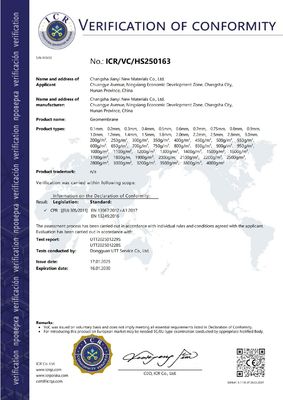

Certification: CE&ISO

Payment & Shipping Terms

Packaging Details: Packed in double woven geotextile and strength belt.

Delivery Time: 7-15Days

Payment Terms: T/T,L/C

Supply Ability: 1200t/month

Gallery

Column Point Geomembrane Rectangular Tear Strength 125-249N For Long-Lasting Performance

Product Description

COLUMN POINT Rectangular Tear Strength 125-249N for Long-Lasting Performance

Product Overview

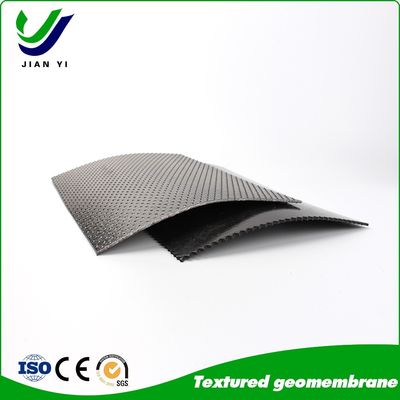

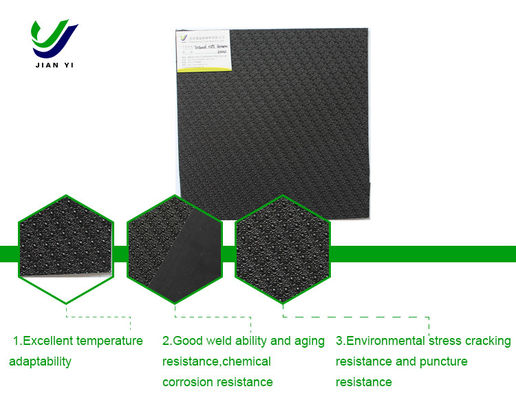

New anti-seepage material, divided into single and double rough surfaces, with anti-skid function, generally used on slopes of anti-seepage projects to improve the stability of the anti-seepage system.

Applications

Summarize:Used in landfill anti-seepage, tailings ponds, reservoirs, closures and other projects.

1. Anti-seepage in landfills, sewage or waste residue treatment. 2. River embankments, lake dams, tailings dams, sewage dams and reservoir areas, channels, and reservoirs (pits, mines). 3. Anti-seepage lining of subways, basements, tunnels and tunnels. 4. Salt anti-seepage of roadbed and other foundations. 5. Horizontal anti-seepage covering in front of embankments and dams, vertical anti-seepage layer of foundation, construction cofferdam and waste yard. 6. Seawater and freshwater farms. 7. The waterproof layer of foundations of roads, highways, railways, expansive soil and collapsible loess.

Technical Specifications

Landfill Liner HDPE Geomembrane Technical Performance Indicators (CJ-J-234-2006)

`No.`	`Indicator`	`Test Value`
`No.`	`Indicator`	`1.00mm`	`1.25mm`	`1.50mm`	`2.00mm`	`2.50mm`	`3.00mm`
`1`	`Roughness Height/mm`	`0.25`
`2`	`Minimum Density (g/cm³)`	`0.939`
`3`	`Tensile Properties`
	`Yield Strength (Stress) (N/mm)`	`15`	`18`	`22`	`29`	`37`	`44`
	`Break Strength (Stress) (N/mm)`	`10`	`13`	`16`	`21`	`26`	`32`
	`Yield Elongation/%`	`12`
	`Break Elongation/%`	`100`
`4`	`Right Angle Break Strength/N`	`125`	`156`	`187`	`249`	`311`	`374`
`5`	`Puncture Strength/N`	`267`	`333`	`400`	`534`	`667`	`800`
`6`	`Environmental Stress Crack Resistance (Single Point Notch Constant Tensile Load Method)/h`	`300`
`7`	`Carbon Black Content (Range)/%`	`2.0~3.0`
`8`	`Carbon Black Dispersion`	`8 out of 10 observation areas should belong to Grade 1 or 2, and no more than 1 should belong to Grade 3`
`9`	`Oxidation Induction Time (OIT)`
	`Standard OIT/min`	`100`
	`High Pressure OIT/min`	`400`
`10`	`85°C Oven Aging (Minimum Average)`
	`Standard OIT Retention after 90 days/%`	`55`
	`High Pressure OIT Retention after 90 days/%`	`80`
`11`	`UV Resistance`
	`Standard OIT Retention after 1600h UV Exposure/%`	`50`
	`High Pressure OIT Retention after 1600h UV Exposure/%`	`50`
`12`	`-70°C Low Temperature Impact Brittleness Performance`	`Pass`
`13`	`Water Vapor Permeability Coefficient g·cm/cm²·s·Pa)`	`≤1.0×10^(-13)`
`14`	`Dimensional Stability/%`	`±2`

Production

Imported raw material ,advanced equipment and professional production technology with the smooth surface and rolling neatly.

Package

Packed in double woven geotextile and strength belt.
