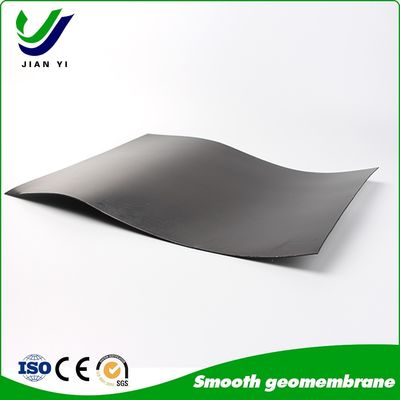

Our Smooth HDPE Geomembrane is manufactured using 100% virgin polyethylene resin with carbon black and specialized additives. Produced through advanced four-layer extrusion blown film technology, it offers superior thickness uniformity and mechanical stability compared to traditional calendared geomembranes.

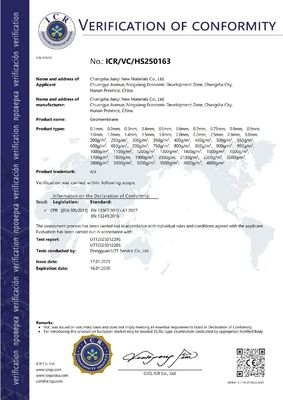

Certified to CE standards, this geomembrane delivers exceptional impermeability, strength, and long-term durability for critical containment applications. Available in custom colors upon request.

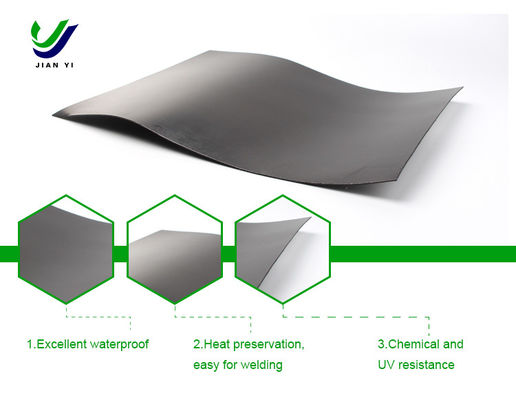

Key Features & Benefits
✔ Superior Impermeability - Hydraulic conductivity <10⁻¹³ g·cm/(cm²·s·Pa)
✔ UV & Weather Resistance - Carbon black provides excellent aging resistance
✔ Chemical & Biological Resistance - Withstands acids, alkalis, oils, and microbial degradation
✔ High Tensile Strength & Elongation - Excellent puncture and tear resistance
✔ Extreme Cold Flexibility - Remains flexible even at temperatures below -70°C
✔ Long Service Life - 70+ years lifespan under normal conditions
Technical Specifications
Typical Applications

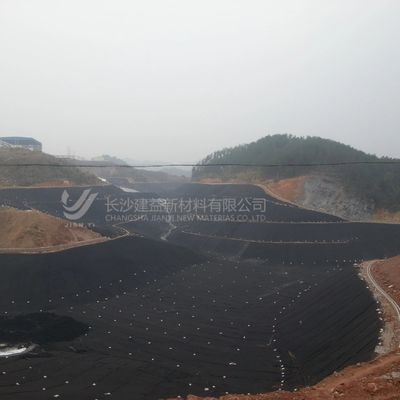

• Environmental: Landfill liners, wastewater treatment lagoons
• Water Conservancy: Reservoirs, irrigation ponds, canals

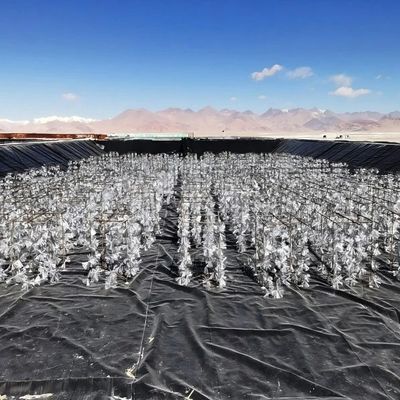

• Aquaculture: Fish/shrimp farming pond liners
• Industrial: Mining leach pads, oil/gas containment
• Civil Engineering: Tunnels, landscaping, secondary containment
(According to the Latest National standard: GH-2S & GB/T 17643-2025)
|
Specification
|
0.75mm
|
1.00mm
|
1.25mm
|
1.50mm
|
2.00mm
|
2.50mm
|
3.00mm
|
Remark
|
|
Item
|
|
Thickness (mm)
|
0.75mm
|
1.00mm
|
1.25mm
|
1.50mm
|
2.00mm
|
2.50mm
|
3.00mm
|
|
|
Density (g/c㎡,≥)
|
0.940
|
|
|
Tensile Properties
|
|
Yield Strength (N/mm,LD/TD)
|
11
|
15
|
18
|
22
|
29
|
37
|
44
|
|
|
Breaking Strength (N/mm,LD/TD)
|
20
|
27
|
33
|
40
|
53
|
67
|
80
|
|
|
Yeild Elongation Rate (%)
|
10-16
|
|
|
Breaking Elongation Rate (%)
|
≥700
|
|
|
Rectangular Tear Strength (N)
|
93
|
125
|
160
|
190
|
250
|
315
|
375
|
|
|
Puncture Strength (N)
|
240
|
320
|
400
|
480
|
640
|
800
|
960
|
|
|
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method)
|
≥500
|
|
|
Carbon Black
|
|
Carbon Black Content(Rang) (%)
|
2.0~2.8
|
|
|
Carbon Black Dispersion
|
Nine of 10 observation area should be grade 1 or grade 3, not more grade4,grade5
|
|
|
Oxidative Induction Time (OIT)
|
|
Standard OIT (min)
|
≥100
|
|
|
High Pressure OIT (min)
|
≥400
|
|
|
85℃ Oven Ageing (Minimum Average)
|
|
90 days after baking, the standard OIT retention(%)
|
≥55
|
|
|
90 days after baking, the hight pressure OIT retention(%)
|
≥80
|
|
|
The Anti-UV Strength
|
|
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)
|
≥50
|
|
|
-70℃ The Low Temperature Embrittlement Performance impact
|
Pass
|
|
|
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)
|
≤1.0X10-13
|
|
|
Dimensional Stability
|
±2.0
|
|
Product Specification and Technical Index
(According to the Latest National standard: GH-1 & GB/T 17643-2025)
|
Specification
Item
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
Remark
|
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
|
Density (g/c㎡,≥)
|
≥0.94
|
|
Tensile Yield Strength (N/mm, ≥,LD/TD)
|
4
|
7
|
10
|
13
|
16
|
20
|
26
|
33
|
40
|
|
|
Tensile Breaking Strength (N/mm, ≥,LD/TD)
|
6
|
10
|
15
|
20
|
25
|
30
|
40
|
50
|
60
|
|
|
Yield Elongation Rate (%,≥,LD/TD)
|
-
|
-
|
-
|
1-16
|
|
|
Breaking Elongation Rate (%,≥,LD/TD)
|
≥600
|
|
|
Rectangular Tear Load (N,≥,LD/TD)
|
34
|
56
|
84
|
115
|
140
|
170
|
225
|
280
|
340
|
|
|
Puncture Strength (N,≥)
|
72
|
120
|
180
|
240
|
300
|
360
|
480
|
600
|
720
|
|
|
Carbon Black Content (%)
|
2.0~2.8
|
|
|
Carbon Black Dispersion
|
Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
|
|
Installation Procedure
Base Preparation: Clear and compact subgrade
Liner Deployment: Position and unroll geomembrane
Welding: Hot wedge or extrusion welding for seamless joints
Inspection: Quality testing of all seams
Packaging & Storage
• Available in rolls up to 8m wide
• 70-year service life under normal conditions
• Optimal storage: Cool, dry environment at room temperature
• Avoid exposure to extreme conditions during storage
Why Choose Our HDPE Geomembrane?
✓ Advanced manufacturing for consistent quality
✓ Custom solutions available (colors, sizes, thicknesses)
✓ Compliant with international standards (GRI-GM13, ASTM)
✓ Technical support for installation and project planning
Contact us today for quotations, technical data sheets, or project consultation
