Durable HDPE Smooth Geomembrane for Artificial Lake Anti-Seepage Project Breaking Strength 20-80N/mm Elongation At Break 700%

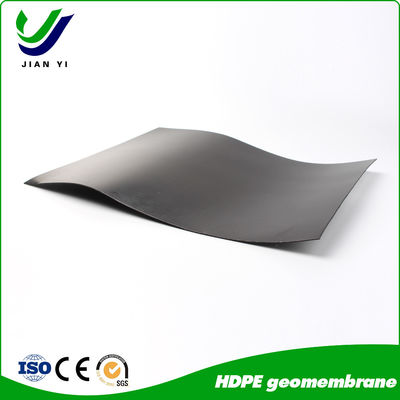

Product Overview
Our HDPE Geomembrane is a premium impermeable liner specifically engineered for artificial lakes, reservoirs, and water containment projects. Crafted from high-quality, UV-stabilized polyethylene, this geomembrane delivers unmatched durability, flexibility, and resistance to environmental stressors, ensuring long-term protection against water seepage and soil contamination.

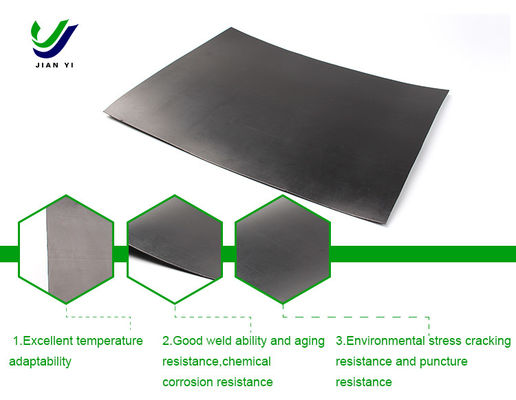

Key Features

1. Superior Leakage Prevention

   • Ultra-low permeability coefficient (<1×10⁻¹³ cm/s) ensures complete containment of water, preventing seepage and preserving water levels.

   • Seamless welding technology guarantees uniform integrity across large areas.

2. Exceptional Durability

   • Resistant to punctures, tears, and abrasion, even under heavy loads or root penetration.

   • UV-stabilized formulation withstands prolonged sun exposure without degradation.

3. Chemical & Environmental Resistance

   • Impervious to acids, alkalis, salts, and hydrocarbons, making it ideal for diverse water conditions.

   • Non-toxic and eco-friendly, compliant with NSF/ANSI 61 standards for potable water contact.

4. Adaptable & Easy Installation

   • Flexible material conforms to irregular terrain, slopes, and contours.

   • Lightweight rolls enable quick deployment, reducing labor and project timelines.

5. Long Service Life

   • Designed for 50+ years of performance under standard conditions.

Technical Specifications

• Material: High-Density Polyethylene (HDPE)

• Thickness: 0.3mm to 3.0mm (customizable)

• Width: Up to 8m (standard)

• Tensile Strength: ≥25 MPa (MD & TD)

• Elongation at Break: ≥700%

• Temperature Range: -70°C to +80°C

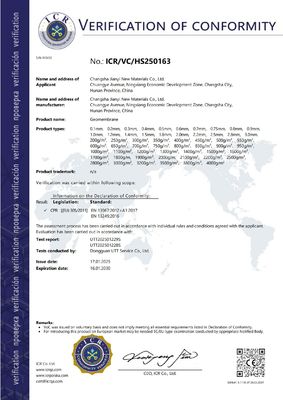

• Certifications: ASTM GRI-GM13, ISO 9001, CE

•  (According to the Latest National standard: GH-2S & GB/T 17643-2025)

  Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
  Item
  Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
  Density (g/c㎡,≥)	0.940
  Tensile Properties
  Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
  Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
  Yeild Elongation Rate (%)	10-16
  Breaking Elongation Rate (%)	≥700
  Rectangular Tear Strength (N)	93	125	160	190	250	315	375
  Puncture Strength (N)	240	320	400	480	640	800	960
  Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	≥500
  Carbon Black
  Carbon Black Content(Rang) (%)	2.0~2.8
  Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 3, not more grade4,grade5
  Oxidative Induction Time (OIT)
  Standard OIT (min)	≥100
  High Pressure OIT (min)	≥400
  85℃ Oven Ageing (Minimum Average)
  90 days after baking, the standard OIT retention(%)	≥55
  90 days after baking, the hight pressure OIT retention(%)	≥80
  The Anti-UV Strength
  Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	≥50
  -70℃ The Low Temperature Embrittlement Performance impact	Pass
  Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
  Dimensional Stability	±2.0



  Product Specification and Technical Index

  (According to the Latest National standard: GH-1 & GB/T 17643-2025)

  Specification Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Remark
  Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
  Density (g/c㎡,≥)	≥0.94
  Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
  Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
  Yield Elongation Rate (%,≥,LD/TD)	-	-	-	1-16
  Breaking Elongation Rate (%,≥,LD/TD)	≥600
  Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
  Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
  Carbon Black Content (%)	2.0~2.8
  Carbon Black Dispersion	Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed

Applications

• Artificial lakes, ponds, and decorative water features

• Irrigation reservoirs and agricultural water storage

• Landfill liners and wastewater containment

• Aquaculture and fish farming ponds

• Erosion control and groundwater protection

Why Choose Our HDPE Geomembrane?
✅ Cost-Effective: Reduces water loss and maintenance costs vs. traditional concrete solutions.
✅ Customizable: Available in black, white, or green; tailored sizes and thicknesses.
✅ Proven Performance: Trusted by global engineering firms and municipal projects.

Installation Tips

1. Prepare a smooth, debris-free subgrade.

2. Overlap seams by 10-15cm and weld using hot wedge or extrusion methods.

3. Anchor edges securely with trench backfill or ballast.
