Home /Products/HDPE Textured Geomembrane/Anti Skid HDPE Textured Geomembrane Customized For Pond Liners

Anti Skid HDPE Textured Geomembrane Customized For Pond Liners

330㎡
MOQ
1.38USD~5.5USD per sqm
Price
Anti Skid HDPE Textured Geomembrane Customized For Pond Liners
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Uv Resistance: Yes
Length: 50m-100m
Application: Landfill Capping, Pond Liners, Waste Containment
Width: 6m-8m
Waterproof: Yes
Thickness: 1.0mm-2.5mm
Highlight:

Anti Skid HDPE Textured Geomembrane

,

Customized HDPE Textured Geomembrane

,

Pond Liners HDPE Textured Geomembrane
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO 9001
Model Number: 6m-8m Width and 50m-100m Roll Length
Payment & Shipping Terms
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 1200t/month
Product Description

Anti-Skid And Customized Textured Geomenbrance For Various Engineering Needs



Product Introduction

    HDPE has excellent temperature adaptability, good weldability and aging resistance, chemical corrosion resistance, environmental stress cracking resistance and puncture resistance.Therefore, it is especially suitable for the underground engineerings, landfills, sewages or waste residue treatment, mining engineerings as seepage prevention material.

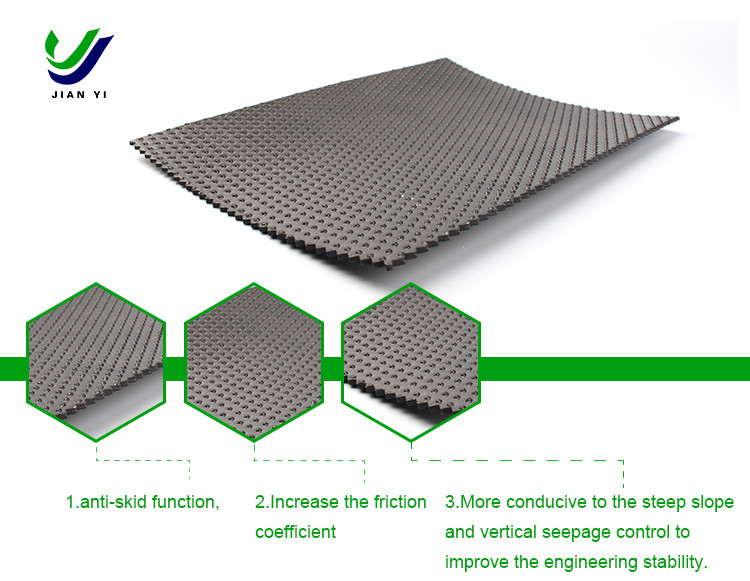

Textured HDPE geomembrane is a new seepage control material,which include single textured, double textured HDPE geomembrane, can increase the friction coefficient, anti-skid function, more conducive to the steep slope and vertical seepage control to improve the engineering stability.



Products series

    Single textured geomembrane, double-wall textured geomembrane.



Product Specification

*  Thickness(mm): 0.30mm~3.00mm
*  Width: 4m~8m.
*  Roll length:50m~100m (customized request accept)
PS: Customized request accept for all above.



Geomembrane Series

Textured HDPE Geomembrane For Landfill     (GB/T 17643-2011(GH-2T1,GH-2T2))

Serial Number Project Index
Thickness(mm) 0.75 1.00 1.25 1.50 2.00 2.50 3.00
1 Density (g/c㎡,≥) ≥0.940
2 Textured Highth (mm) ≥0.25
3 Yield Strength (N/mm,LD/TD) ≥11 ≥15 ≥18 ≥22 ≥29 ≥37 ≥44
4 Breaking Strength (N/mm,LD/TD) ≥8 ≥10 ≥13 ≥16 ≥21 ≥26 ≥32
5 Yeild Elongation Rate (%) ≥12
6 Breaking Elongation Rate (%) ≥100
7 Rectangular Tear Strength (N) ≥93 ≥125 ≥160 ≥190 ≥250 ≥315 ≥375
8 Puncture Strength (N) ≥200 ≥270 ≥335 ≥400 ≥535 ≥670 ≥800
9 Tensile Load Stress Cracking (Notch Constant Load Tensle Method) h ≥300
10 Carbon Black Content(Rang) (%) 2.0~3.0
11 Carbon Black Dispersion There is not more than one grade 3 in 10 data, and grade 4 and grade 5 are not allowed
12 Oxidative Induction Time (OIT) Standard OIT (min)≥100
High Pressure OIT (min)≥400
13 85℃ thermal aging (Atmospheric Pressure OIT Retention After 90 Day) ≥55
14 Ultraviolet Irradiation After 1600 Hours, The OIT Retention(%) ≥50



(CJ-T234-2006)

Specification 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Item
Thickness (mm) 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm
Textured Highth (mm) 0.25
Density (g/c㎡,≥) 0.94
Tensile Properties
Yield Strength (N/mm,LD/TD) 15 18 22 29 37 44
Breaking Strength (N/mm,LD/TD) 10 13 16 21 26 32
Yeild Elongation Rate (%) 12
Breaking Elongation Rate (%) 100
Rectangular Tear Strength (N) 125 156 187 249 311 374
Puncture Strength (N) 267 333 400 534 667 800
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method)		 300
Carbon Black
Carbon Black Content(Rang) (%) 2.0~3.0
Carbon Black Dispersion Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min) 100
High Pressure OIT (min) 400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%) 55
90 days after baking, the hight pressure OIT retention(%) 80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) 50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) 50
-70℃ The Low Temperature Embrittlement Performance mpact Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) ≤1.0X10-13
Dimensional Stability ±2
