Name: Landfill HDPE Geomembrane 1.5 mm For Anti Seepage Applications
Brand: Hebei Bending Fence Technology Co., Ltd.
SKU: 1m-9m Width and 30m-100m Roll Length
Price: 2.41 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Color: Black, Green, Custom

Material: High Density Polyethylene (HDPE)

Thickness: 0.3mm-3.0mm

Length: 30m-100m

Width: 1m-9m

Application: Landfill, Mining, Pond Liner, Etc.

Temperature Resistance: -60℃ To +60℃

Elongation At Break: ≥600%

Highlight:

Anti Seepage HDPE Geomembrane

High Density Polyethylene Geomembrane

Landfill HDPE Geomembrane 1.5 mm

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO 9001

Model Number: 1m-9m Width and 30m-100m Roll Length

Payment & Shipping Terms

Delivery Time: 7-15 days

Payment Terms: T/T, L/C

Supply Ability: 1300T/Month

Gallery

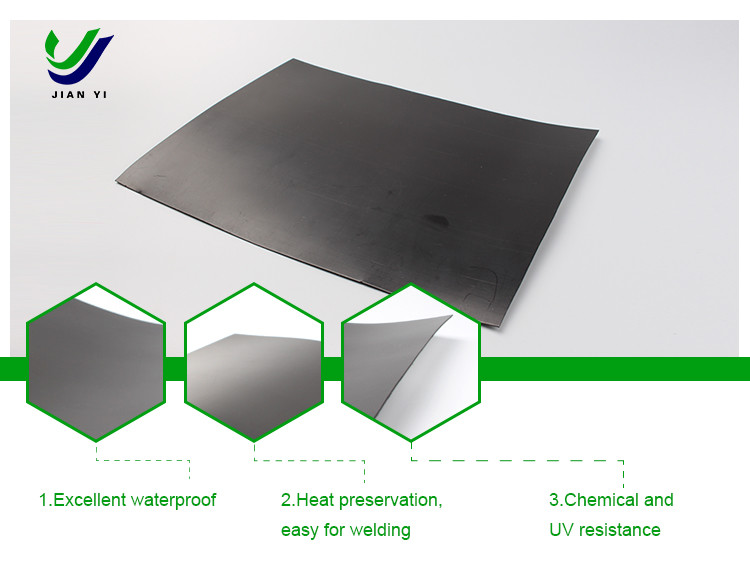

Landfill HDPE Geomembrane 1.5 mm For Anti Seepage Applications

Product Description

Versatile And Long-Lasting HDPE Geomenbrance For Anti-Seepage Applications

Product Introduction

HDPE geomembrane full name “High-density polyethylene geomembrane”,is a waterproof and barrier material made from high-density polyethylene resin. (geomembrane with a density of 0.94 g/cm3 or above) .

Product Properties

♦ excellent resistance to environmental stress cracking performance

♦ low temperature

♦ anti-aging

♦ corrosion resistance,

♦ as well as a larger service temperature range (-60-+ 60)

♦ a longer service life of 50 years

Product Application

It is widely used in the anti-seepage of domestic waste landfills, solid waste landfills, Sewage Treatment and artificial lakes, tailings treatment and other anti-seepage works.

Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Density (g/c㎡,≥)	0.939
Tensile Properties
Yield Strength (N/mm,LD/TD)	11	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	20	27	33	40	53	67	80
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	700
Rectangular Tear Strength (N)	93	125	156	187	249	311	374
Puncture Strength (N)	240	320	400	480	640	800	960
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

Specification Item	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Remark
Thickness (mm)	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
Density (g/c㎡,≥)	0.94
Tensile Yield Strength (N/mm, ≥,LD/TD)	4	7	10	13	16	20	26	33	40
Tensile Breaking Strength (N/mm, ≥,LD/TD)	6	10	15	20	25	30	40	50	60
Yield Elongation Rate (%,≥,LD/TD)	-	-	-	11
Breaking Elongation Rate (%,≥,LD/TD)	600
Rectangular Tear Load (N,≥,LD/TD)	34	56	84	115	140	170	225	280	340
Puncture Strength (N,≥)	72	120	180	240	300	360	480	600	720
Carbon Black Content (%)	2.0~3.0
Carbon Black Dispersion	Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
