Features Gallery Product Description Request A Quote

Features

Specifications

Color: Black, White，Green,Blue， Custom

Length: 50m-200m

Water Permeability: High

Acid And Alkali Resistance: Strong

Width: 1.0m-6.6m

Application: Road Construction, Erosion Control, Landfill, Etc.

Uv Resistance: Yes

Weight: 100-800g/㎡

Breaking Strength (KN/m,≥,LD/TD): 4.5-40

Highlight:

Landfill Geotextile Cloth

Tailings Pond Geotextile Cloth

Salt Marsh Geotextile Fabric

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

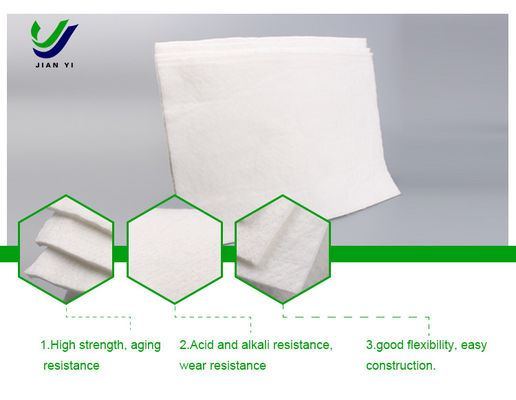

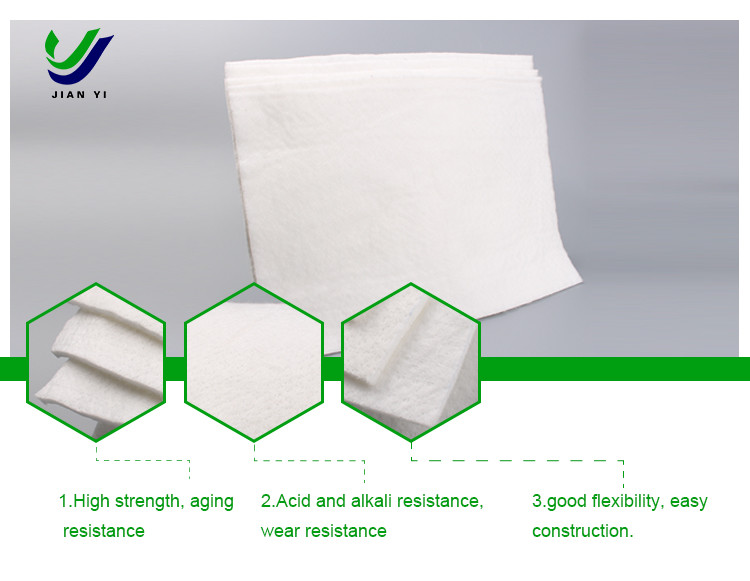

Special Geotextile Cloth For Salt Alkali Marsh Of Tailings Pond In Landfill

Product Description

Special Geotextile For Salt Alkali Marsh Of Tailings Pond In Landfill

Product Introduction

Long fiber geotextile is a widely used geomaterial, which is mainly made of polyester chips through drying, melting, spinning, laying and other processes, with high original strength and high temperature resistance, even at high temperatures can maintain a complete structure and original physical properties.

Product Properties

High strength corrosion resistance, water permeability, adaptability, a wide range of applications.

Product Application

High strength long fiber geotextile is widely used in geotechnical engineering because of its unique properties. It can be used for anti-filtration protection of retaining wall, road slope, reservoir dam, earth and rock cofferdam, tunnel and drainage ditch; It is also widely used in the subgrade drainage of roads and railways. In addition, it is also suitable for the isolation and protection of construction cofferdams, docks, anti-slope embankments and other projects.

Product Specification

* Grams/㎡: 100g~800g/㎡
* Width: 1.0m~6.60m
* Roll length: 50m~200m (customized request accept)
PS: Customized request accept for all above.

Product Specification and Technical Index(GB/T 17639—2023)

Item			Index
			Nominal strength/(KN/m)
			6	9	12	18	24	30	36	48	54
1.00	Longitudinal And Transverse Tensile Strength(KN/m≥)		6.0	9.0	12.0	18.0	24.0	30.0	36.0	48.0	54.0
2.00	Elongation Under Maximum Load In Vertical And Horizontal Direction(%)		30~80
3.00	CBR Burst Strength ( KN≥)		0.9	1.6	1.9	2.9	3.9	5.3	6.4	7.9	8.5
4.00	Tearing Strength (KN,≥,LD/TD)		0.15	0.22	0.29	0.43	0.57	0.71	0.83	1.10	1.25
5.00	Sieve SizeO90,O95 (mm)		0.05~0.30
6.00	Vertical Permeability Coefficient (cm/s)		Kx(10ˉ1-10ˉ3) K=1.00-9.90
7.00	Width Variation　(％≥)		-0.5
8.00	Weight Variation (%≥)		-5
9.00	Thickness Deviation Rate(%≥)		-10
10.00	Coefficient Of Thickness Variation(%≤)		10
11.00	Dynamic Punch	Hole Diameter(mm≤)	37.0	33.0	27.0	20.0	17.0	14.0	11.0	9.0	7.0
12.00	Longitudinal And Transverse Breaking Strength(KN)≥		0.3	0.5	0.7	1.1	1.4	1.9	2.4	3.0	3.5
13.00	Uv resistance (Xenon Arc Lamp Method)	Vertical And Horizontal Strength Retention(%≥)	70
14.00	Uv resistance (Fluorescent UV Lamp Method)	Vertical And Horizontal Strength Retention(%≥)	80
