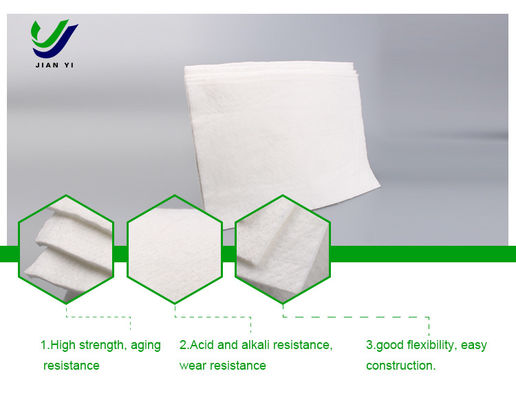

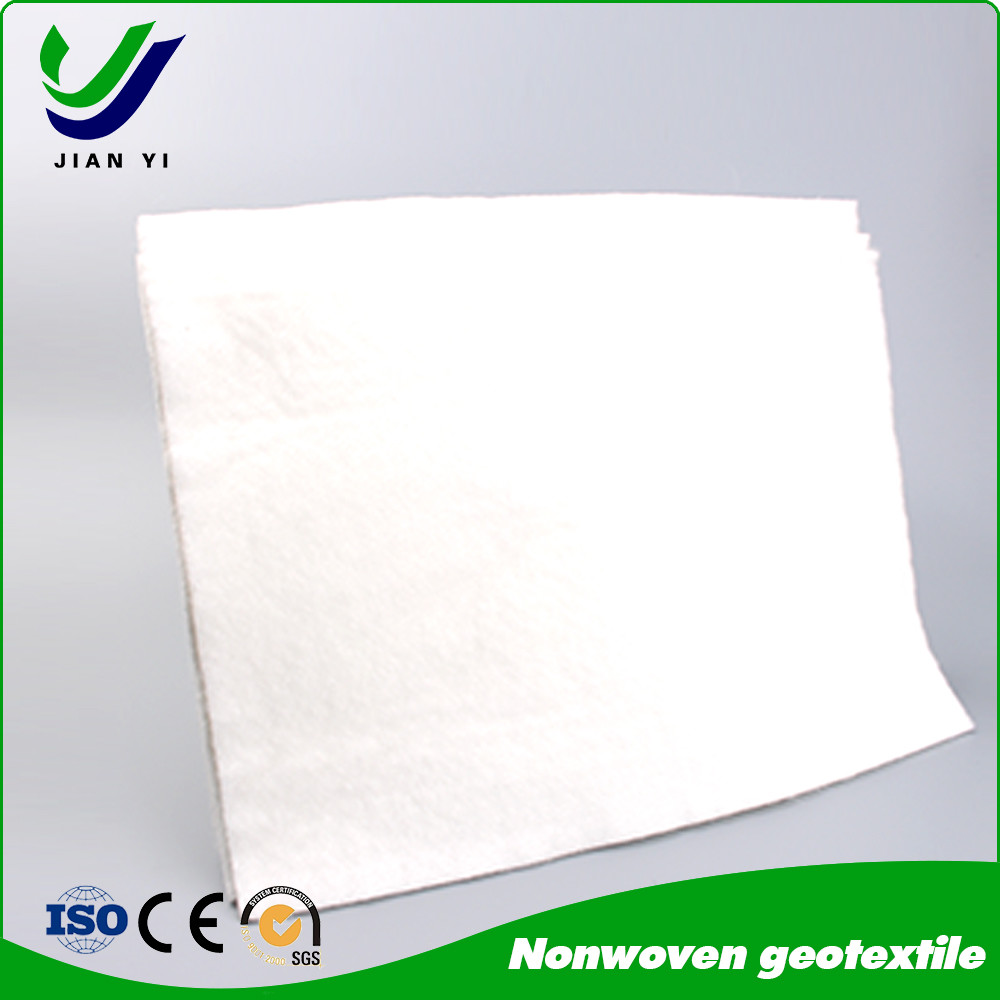

Customizable And High-Performance Long Fiber Geotextile For Filteration And Isolation
Product Introduction
Long fiber geotextile production line adopts the international advanced technology and domestic application of the double screw extrusion technology for the first time, double alignment system, pipeline air draft technology, plate wire pendulum system and high-speed needle into the cloth production process and so on 18 items international and domestic patent technology.
700gsm PET Filament Geotextile Filament Geotextile PET Filament Geotextile Black
Long Fiber Geotextile Function
Long fibers PP geotextile has all of the nonwoven geotextile functions and its mechanical and physical properties are the best among all of the provided nonwoven geotextiles:
Geotextile Application Areas Versus Geotextile Functions
|
Areas of Application
|
Separation
|
Filtration
|
Drainage
|
Reinforcement
|
Protection
|
Waterproofing
|
|
Paved and Unpaved Roads
|
|
|
|
|
|
|
|
Wet soft subgrade
|
X
|
X
|
X
|
O
|
|
|
|
Firm subgrade
|
X
|
O
|
O
|
O
|
|
|
|
Repaving
|
|
|
|
O
|
O
|
X
|
|
Drainage
|
O
|
X
|
O
|
|
|
|
|
Sports Fields
|
X
|
X
|
|
|
|
|
|
Erosion Control/Hydraulic Construction
|
O
|
X
|
|
|
|
|
|
Railroads
|
X
|
X
|
|
|
|
|
|
Geomembrane Containment
|
O
|
X
|
O
|
O
|
X
|
O
|
|
Embankments
|
X
|
X
|
X
|
O
|
|
|
|
Retaining Walls
|
|
|
O
|
X
|
X
|
|
|
Tunnels
|
|
|
O
|
|
X
|
|
|
Symbols -- X: Primary Function O: Secondary Function
|
Long Fiber Geotextile Production
-
Polymer Chips Feeding – Raw polyester or polypropylene chips are melted.
-
Spinning – The melted polymer is extruded through spinnerets to form continuous filaments.
-
Cooling & Stretching – Filaments are cooled and stretched to enhance strength.
-
Web Formation – Filaments are laid randomly onto a conveyor belt to form a loose web.
-
Bonding (Needle Punched or Thermal Bonded) –
-
Needle Punching: Barbed needles entangle fibers to strengthen the fabric.
-
Thermal Bonding: Heat is applied to melt fibers slightly, fusing them together.
-
Finishing – The fabric is trimmed, inspected, and rolled for shipment.
Long Fiber Geotextile Application

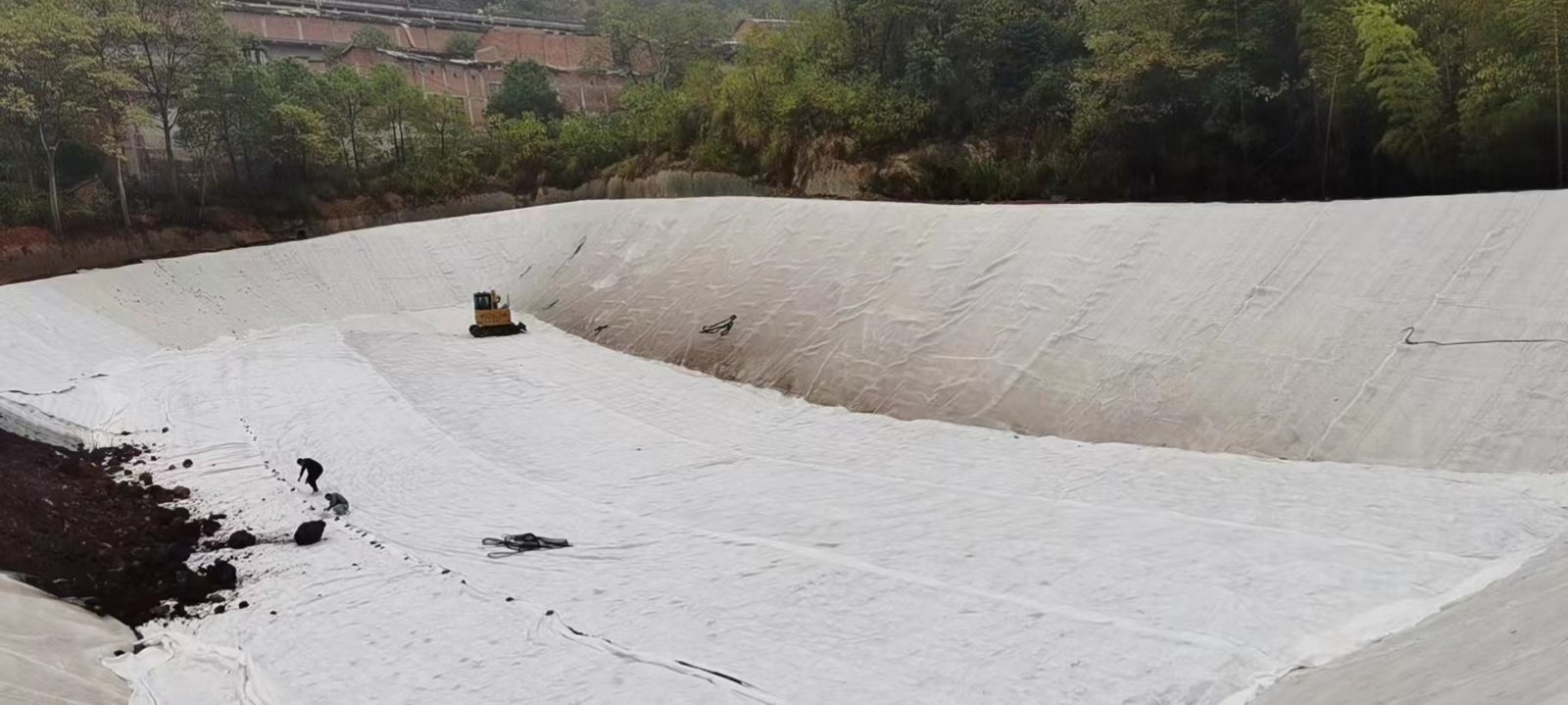

Especially suitable for landfill, salt marsh, but also widely used in roads, railways, dams, tidal flats and other projects of filteration, isolation, and drainage and so on.
(1) As reinforcement in retaining wall backfill, or for anchoring retaining wall panels. Construction of wrapped retaining walls or bridge abutments.
(2) Reinforcement of flexible pavement, repair of cracks on the road, and prevention of crack reflection on the pavement.
(3) Increase the stability of gravel slopes and reinforced soil, prevent soil erosion and frost damage of soil at low temperatures.
(4) Isolation layer between road ballast and roadbed, or between roadbed and soft foundation.
(5) Isolation layer between artificial fill, rock pile or material yard and foundation, isolation between different frozen soil layers. Anti-filtration and reinforcement function.
Long Fiber Geotextile Specification
* Grams/㎡: 100g~800g/㎡
* Width: 1.0m~6.60m
* Roll length: 50m~200m (customized request accept)
PS: Customized request accept for all above.
Product Specification and Technical Index(GB/T 17639—2023)
|
Item
|
Index
|
| Nominal strength/(KN/m) |
| 6 |
9 |
12 |
18 |
24 |
30 |
36 |
48 |
54 |
| 1.00 |
Longitudinal And Transverse Tensile Strength(KN/m≥) |
6.0 |
9.0 |
12.0 |
18.0 |
24.0 |
30.0 |
36.0 |
48.0 |
54.0 |
| 2.00 |
Elongation Under Maximum Load In Vertical And Horizontal Direction(%) |
30~80 |
| 3.00 |
CBR Burst Strength ( KN≥) |
0.9 |
1.6 |
1.9 |
2.9 |
3.9 |
5.3 |
6.4 |
7.9 |
8.5 |
| 4.00 |
Tearing Strength (KN,≥,LD/TD) |
0.15 |
0.22 |
0.29 |
0.43 |
0.57 |
0.71 |
0.83 |
1.10 |
1.25 |
| 5.00 |
Sieve SizeO90,O95 (mm) |
0.05~0.30 |
| 6.00 |
Vertical Permeability Coefficient (cm/s) |
Kx(10ˉ1-10ˉ3) K=1.00-9.90 |
| 7.00 |
Width Variation (％≥) |
-0.5 |
| 8.00 |
Weight Variation (%≥) |
-5 |
| 9.00 |
Thickness Deviation Rate(%≥) |
-10 |
| 10.00 |
Coefficient Of Thickness Variation(%≤) |
10 |
| 11.00 |
Dynamic Punch |
Hole Diameter(mm≤) |
37.0 |
33.0 |
27.0 |
20.0 |
17.0 |
14.0 |
11.0 |
9.0 |
7.0 |
| 12.00 |
Longitudinal And Transverse Breaking Strength(KN)≥ |
0.3 |
0.5 |
0.7 |
1.1 |
1.4 |
1.9 |
2.4 |
3.0 |
3.5 |
| 13.00 |
Uv resistance (Xenon Arc Lamp Method) |
Vertical And Horizontal Strength Retention(%≥) |
70 |
| 14.00 |
Uv resistance (Fluorescent UV Lamp Method) |
Vertical And Horizontal Strength Retention(%≥) |
80 |
Jianyi ---Your Professional Long firber geotextile Manufacturer
Jianyi New Material Co.,Ltd, which is the professional manufacturer specialized in R&D, produce, sales and installation of environmentally friendly materials.
We have one advanced imported geomembrane production line, two world-class HDPE geomembrane production lines, and one textured HDPE geomembrane production line. Our capacity of HDPE geomembrane can be 60 metric tons per day.
Jianyi is the largest manufacturer of Long firber geotextile in Hunan,we are one of the member units of HNWPA.

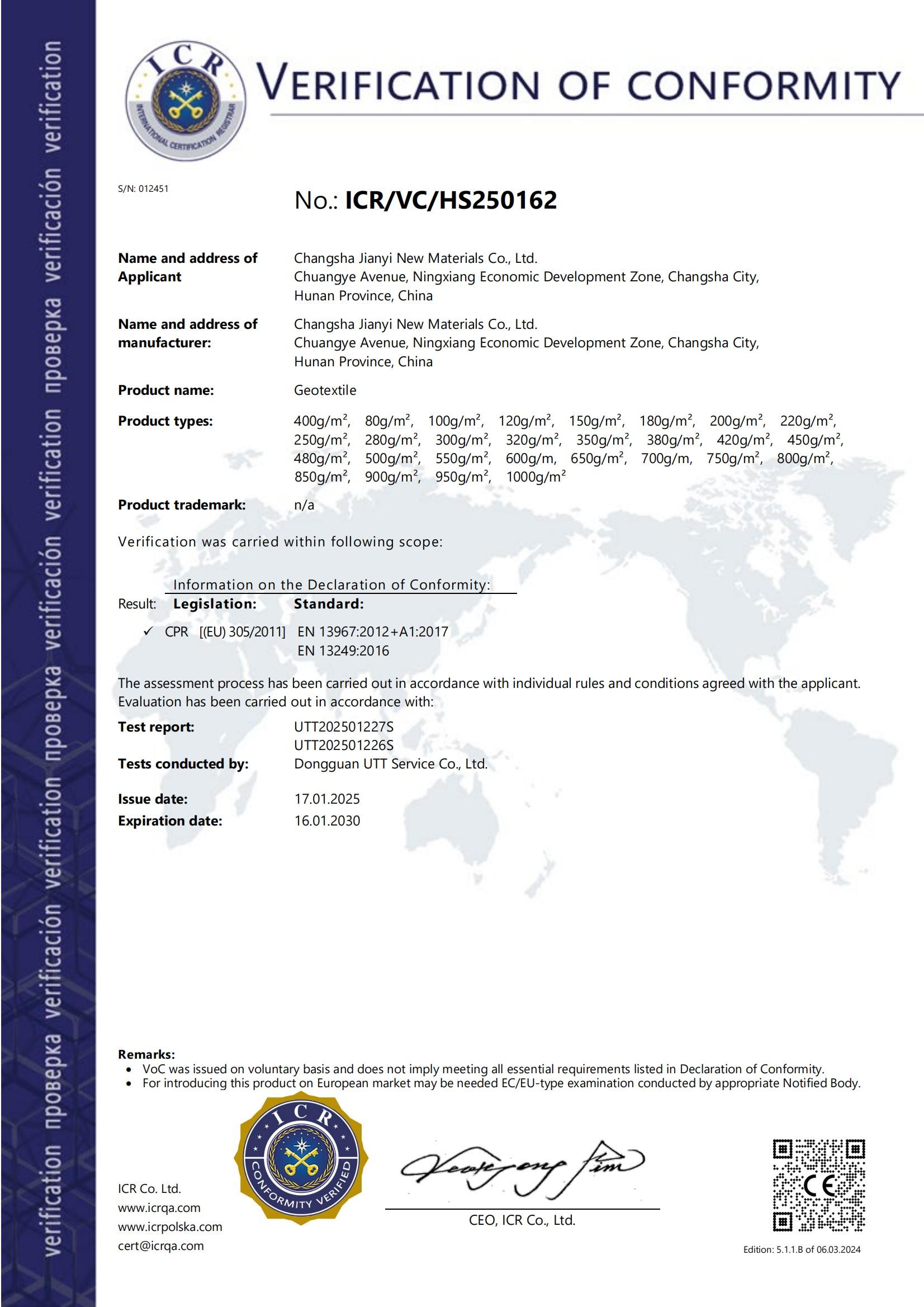

We have certificated by ISO9001, ISO14001 ISO45001 and CE.
We have about 20 patents, part of them as follows:
Patent for Geotextile Netting Machine/Composite geomat patent/Patent for composite film trimming device ect.
Changsha Jianyi have participated in many large-scale exhibitions abroad, such as Indonsia, Vietam, Russia , India, Philippine, Myanmar, Combodia etc ,our HDPE geomembrane products are deeply loved by exhibitors.
Changsha Jianyi have built a long term cooperation with many famous enterprises:
FAQ
Q1: Can I have the sample for this item?
A1: Yes, surely, for any available sample.
Q2: What about the lead time?
A2: Sample needs 1-3 working days. Mass order needs 1-2 weeks for ordinary production.
Q3: It is fine to print my LOGO on it?
A3: Yes, certainly. We can provide OEM service
