UV Resistance Long Fiber Geotextile With Chemical Resistance And Impermeability

UV Resistance Long Fiber Geotextile With Chemical Resistance And Impermeability
Features Gallery Product Description Request A Quote
Features
Specifications
Width: 1m-6.6m
Packing: Rolls Or Customized
Breaking Elongation Rate (%,≥,LD/TD): 40-80
Application: Road Construction, Railway, Landfill, Etc.
Material: PET Polyester
Weight: 100-800g/㎡
Color: Black, White,Green,Blue, Custom
Vertical Permeability Coefficient (cm/s): Kx(10ˉ1-10ˉ3) K=1.00-9.90
Length: 50m-200m
Breaking Strength (KN/m,≥,LD/TD): 4.5-40
CBR Burst Strength ( KN≥): 0.8-7.9
Sieve SizeO90,O95: 0.07mm-0.20mm
Highlight:

UV Resistance Long Fiber Geotextile

,

Chemical Resistant Long Fiber Geotextile

,

Long Fiber Impermeable Geotextile Fabric

Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

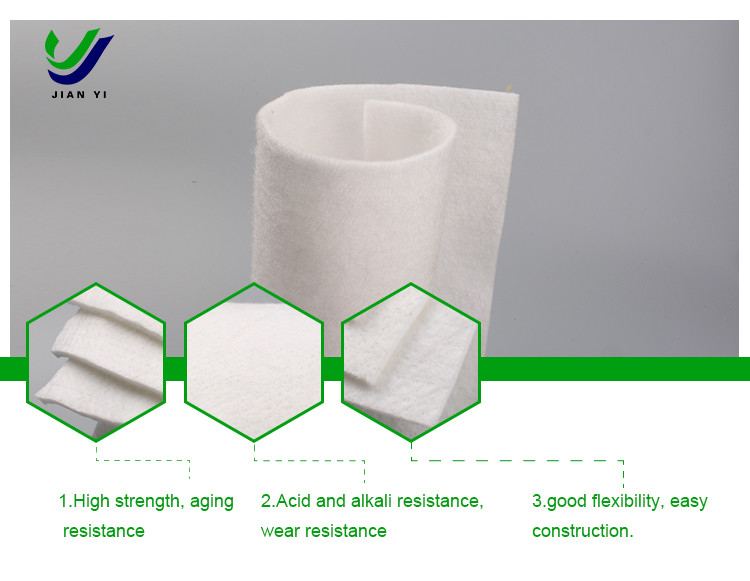

Geotextile With Excellent Chemical Resistance, Impermeability And Durability, And Outstanding UV Resistance

Product Introduction
    Long fiber geotextile is made of polyester fiber as the main raw material through a series of production processes. This geotextile has excellent corrosion resistance, durability and other characteristics, and has high tensile strength, tearing strength and bursting strength and other mechanical properties.

Product Properties
1. Aging resistance: It has long-term durability and anti-aging performance.
2. Physical properties: excellent chemical resistance, strong stress cracking resistance, durable seepage resistance, outstanding UV resistance, excellent low temperature embrittlement resistance.
3. Adaptable: able to adapt to different geological and climatic conditions.
4. Convenient construction: It has a high anti-seepage coefficient, excellent overall performance, and strong adaptability to geological uneven settlement stress.


Product Application
    Corrosion resistant long fiber geotextile is widely used in railway, highway, sports venues, DAMS, soil and water construction, tunnels, coastal beaches, reclamation, environmental protection and other projects. In addition, it is also suitable for landfill, sewage treatment plant, power plant regulation pool, industrial, hospital solid waste and other environmental protection projects, as well as rivers, lakes and reservoirs of seepage prevention, plugging and reinforcement of water conservancy projects.

Product Specification
*  Grams/㎡: 100g~800g/㎡
*  Width: 1.0m~6.60m
*  Roll length: 50m~200m (customized request accept)
PS: Customized request accept for all above.


Product Specification and Technical Index(GB/T 17639—2023)

Item



UV Resistance Long Fiber Geotextile With Chemical Resistance And Impermeability 0 Index







Nominal strength/(KN/m)
6912182430364854
1.00Longitudinal And Transverse Tensile Strength(KN/m≥)6.09.012.018.024.030.036.048.054.0
2.00Elongation Under Maximum Load In Vertical And Horizontal Direction(%)30~80
3.00CBR Burst Strength ( KN≥)0.91.61.92.93.95.36.47.98.5
4.00Tearing Strength (KN,≥,LD/TD)0.150.220.290.430.570.710.831.101.25
5.00Sieve SizeO90,O95 (mm)0.05~0.30
6.00Vertical Permeability Coefficient (cm/s)Kx(10ˉ1-10ˉ3) K=1.00-9.90
7.00Width Variation (%≥)-0.5
8.00Weight Variation (%≥)-5
9.00Thickness Deviation Rate(%≥)-10
10.00Coefficient Of Thickness Variation(%≤)10
11.00Dynamic PunchHole Diameter(mm≤)37.033.027.020.017.014.011.09.07.0
12.00Longitudinal And Transverse Breaking Strength(KN)≥0.30.50.71.11.41.92.43.03.5
13.00Uv resistance (Xenon Arc Lamp Method)Vertical And Horizontal Strength Retention(%≥)70
14.00Uv resistance (Fluorescent UV Lamp Method)Vertical And Horizontal Strength Retention(%≥)80
